Raynesys RAY-1 Assembly Instruction

Folding Wagon Assembly Instruction
4
3

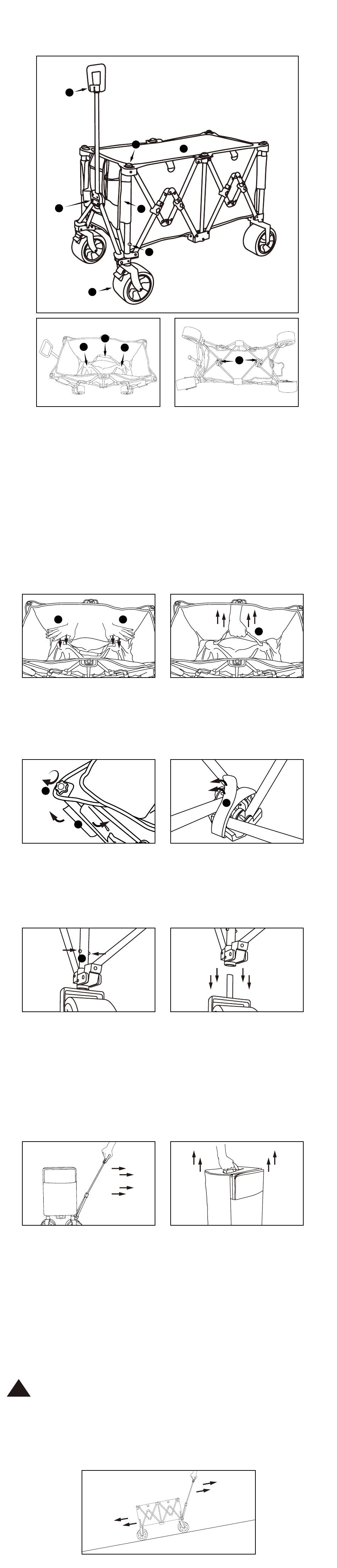

① 2 x Pressing Frames for Unfolding
② Pulling Rope for Folding
③ Draw-Bar Retracting Button (on the back)
④ Handle
⑤ Wheels
1. Unfolding / Storing Instructions
Press 2 frames (①) to unfold the wagon, pull the rope (②) to fold the wagon.
1
2. Cloth Bag Removal Instructions
Unfasten 4 magic tapes on 4 points (⑦), unscrew 6 fixing points (⑧),
then unfasten 2 magic tapes (⑨) under the wagon to remove the cloth bag.
8
3. Wheels Removal Instructions
Press the red button (⑥) to remove the wheels and brackets.
The wheels can be replaced as needed (front wheel bracket with brake button).
4. Moving Instruction After Folding
Pull it via the draw-bar or directly lift it by your hand.
For the hand held mode, please pay attention to the wagon weight.
5. Product Parameters
Unfolding Size: 102 * 51 * 70 CM
Volume: 7 CU FT / 200 L
Bearing Load: 440 LBS / 200 KG
6. Product Accessory
2 hook ropes can assist to fix the items in the wagon. They can be fixed on the
wagon frame through 4 D-typed buckles on both sides and hooks.
! Warning
1. The wagon is NOT designed for transporting the children or adults.
2. The wagon is NOT RECOMMENDED to be used for
downhill road condition. If necessary, please tilt the draw-bar to
pull the wagon or push it back for stopping.
8
7
5
2
1
1
1
7
6
Push Back
to Stop
RAY-1
10
6
⑥ Wheels Removal Button
⑦ 4 x Cloth Bag Removal Points 2
⑧ 6 x Cloth Bag Removal Points 1
⑨ 2 x Cloth Bag Removal Points 3 (under the cart frame)
⑩ Cloth Bag
Folding Size: 68 * 36 * 26 CM
Product Weight: 30 LBS / 13.6 KG
9
2
9
Pull
