AA Ignition GWA176 Installation Instructions

Tools Required:
Phillips head screwdriver
10mm socket with ratchet
*****Please note mud flaps marked "LH" are for driver side of the truck and "RH" are for the passenger side*****

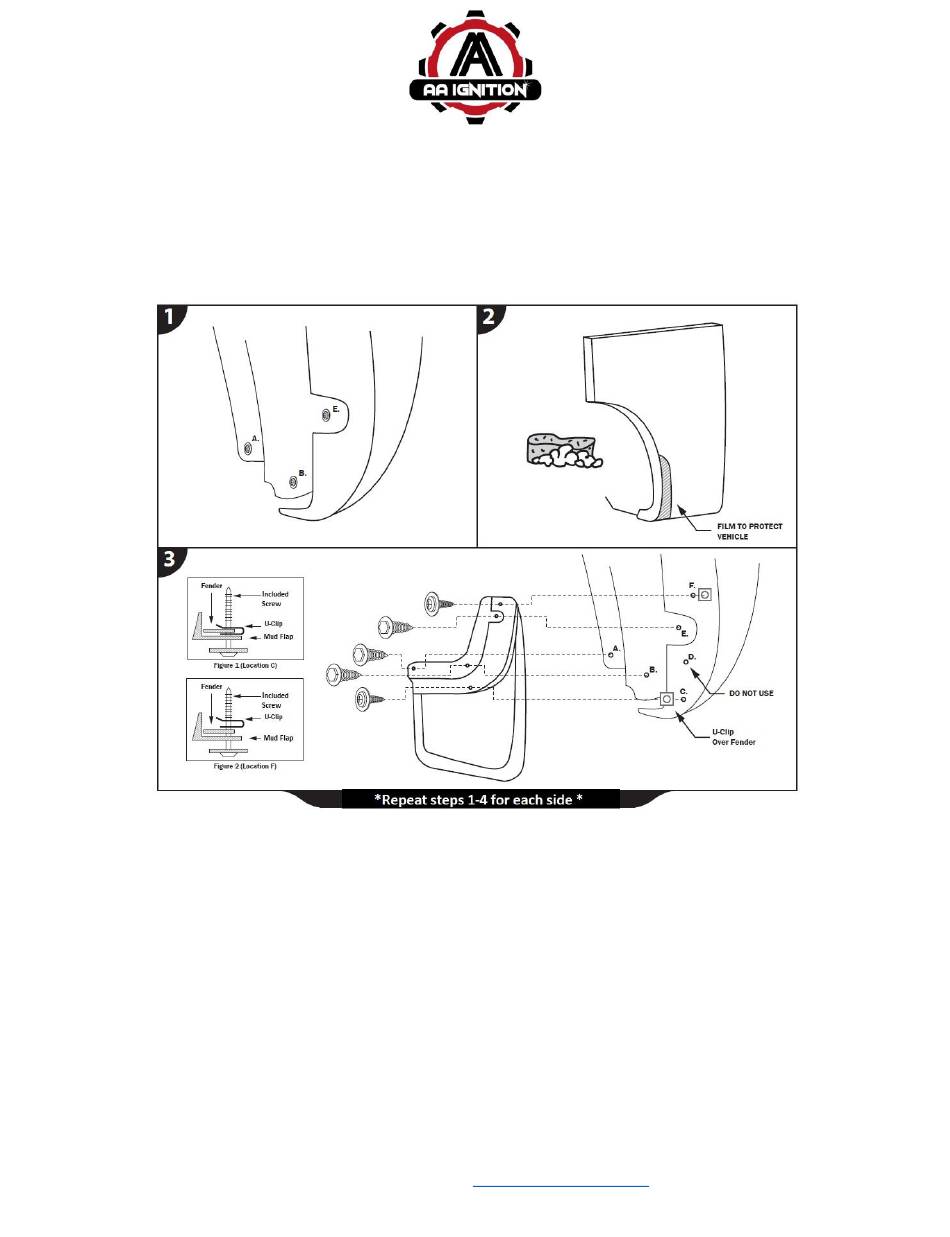

Step 1 – Remove existing factory screws
1. Remove factory 10mm screws from position A, B, E. These screws will be reused in step 3
Step 2 – Apply vinyl protection film (optional step)
1. Clean and dry the painted area of the vehicle where mud flap will rest on it.
2. Cut the film to fit the area where the mud flap will rest on the painted area of the vehicle's body
3. Spray the area and sticky side of the vinyl film with soapy water. Apply the film to the area and apply firm smooth pressure in an
outward motion using a squeegee or credit card. Continue into all water is squeegeed away.
Step 3 – Install mud flaps
1. Attach one U-Clip to location C. The U-Clip will clip over the fender as shown in Picture 3, Figure 1.
2. Using the factory screws removed in step 1, secure the mud flap at location A, B, E
3. Screw in 1 provided Philips head screw at location C
4. Place a U-Clip behind the fender as shown in Picture 3, Figure 2 and screw in 1 provided Philips head screw at location F
Step 4 – Install mud flaps
1. Verify the mud flaps are secured to vehicle properly before driving
Installation Instructions
Toyota Tacoma 2005-2015 with Factory Fender Flares
Part# GWA176
Included in box:
2x Front mud flaps
2x Rear mud flaps
Clear vinyl film
Need help? Email us at: support@aaignition.com
8x U-Clips
16x Phillips head screws
