TJERNLUND SW100 Manual

TJERNLUND PRODUCTS, INC.
1601 Ninth Street • White Bear Lake, MN 55110-6794
PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547
Visit our web site • www.tjernlund.com
WARNING
Installation performed by a licensed electrician is
recommended. Installation and use of this equip-
ment should be in accordance with provisions of the
National Electrical Code.
Applicable local codes and pertinent industry stan-
dards should be verified before installation.
The current sensor is a solid-state N.O. high current AC switch
that activates a device when current is sensed. This current
sensor senses when the activating device (e.g. heater, dryer) is
drawing 0.5 amps of current and then closes the output ( T1 )
side of the switch to activate the reacting device (e.g. booster
fan). When the activating device turns off and the current drops
below the amperage threshold, the output side of the switch
opens.
The current sensor requires no field adjustments and only two
wire connections for easy installation. This device is CSA
Certified to Canadian and US Standards. The sensor is
designed to mount in a standard electrical box. The sensor
may be placed in an electrical box adjacent to the junction box
in which the wires supply power to the activating device.
Switch Contact Rating: 120 VAC (MAX)
2.5 AMP (MAX)
Tjernlund Products, Inc. warrants to the original purchaser of this product that the product will be free from defects due to faulty material or workmanship for a period of (1)
year from the date of original purchase or delivery to the original purchaser, whichever is earlier. Remedies under this warranty are limited to repairing or replacing, at our
option, any product which shall, within the above stated warranty period, be returned to Tjernlund Products, Inc. at the address listed below, postage prepaid. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF, AND TJERNLUND PRODUCTS, INC. EXPRESSLY DISCLAIMS LIABILITY
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF THIS PRODUCT. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WAR-
RANTIES AND NO AGENT IS AUTHORIZED TO ASSUME FOR US ANY LIABILITY ADDITIONAL TO THOSE SET FORTH IN THIS LIMITED WARRANTY. IMPLIED
WARRANTIES ARE LIMITED TO THE STATED DURATION OF THIS LIMITED WARRANTY. Some states do not allow limitation on how long an implied warranty lasts, so
that limitation may not apply to you. In addition, some states do not allow the exclusion or limitation of incidental or consequential damages, so that above limitation or
exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. Send all inquiries
regarding warranty work to Tjernlund Products, Inc. 1601 9th Street, White Bear Lake, MN 55110-6794. Phone (651) 426-2993 • (800) 255-4208 • Fax (651) 426-9547 •
Email fanmail@tjfans.com.
950-9351 Current Sensor
READ OWNERS INSTRUCTIONS CAREFULLY PRIOR TO
INSTALLATION. DO NOT DESTROY.
TJERNLUND LIMITED 1 YEAR WARRANTY
©2013 TJERNLUND PRODUCTS, INC. ALL RIGHTS RESERVED.

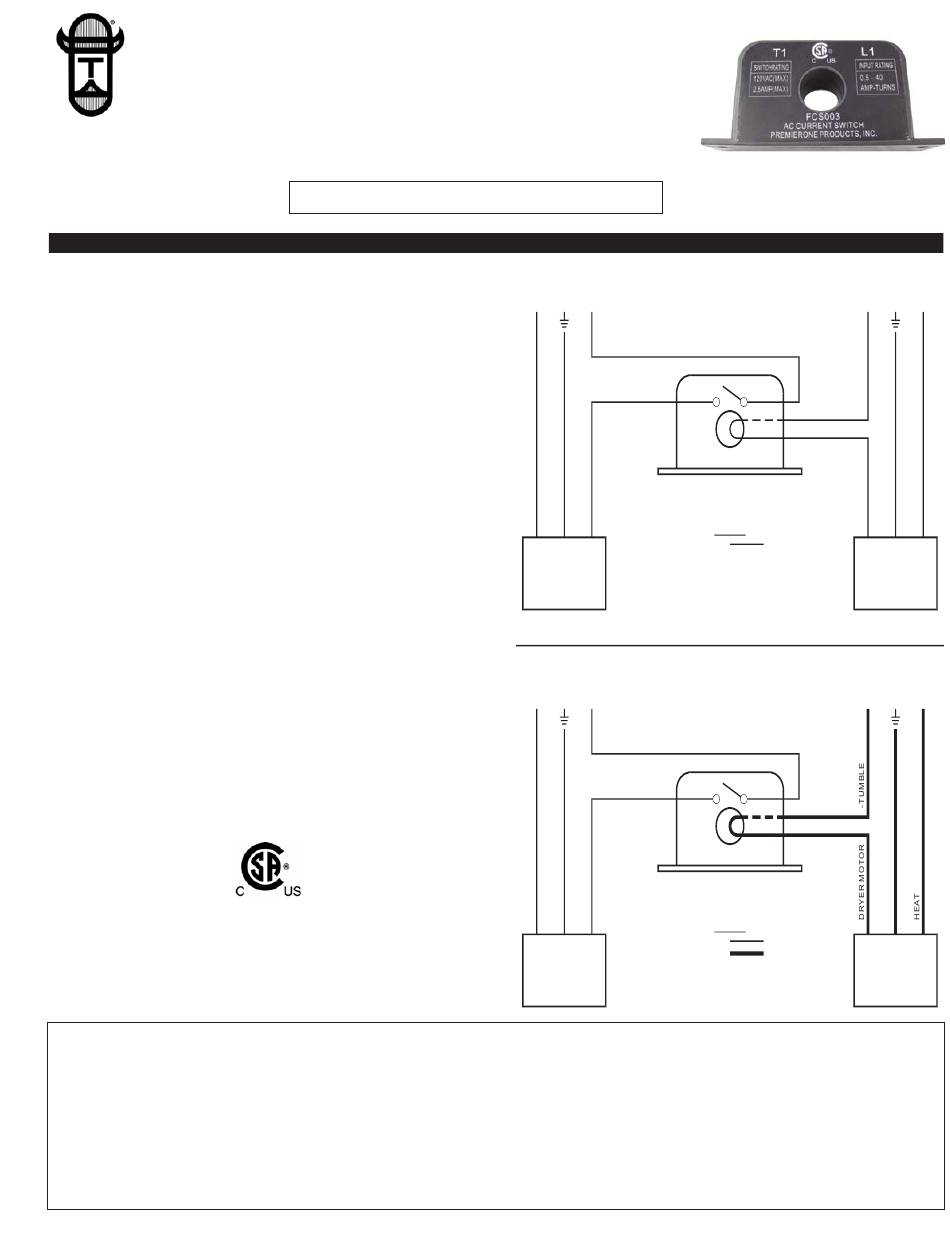

INSTALLATION
NEUTRAL GND L1
DRYER DUCT
BOOSTER
NEUTRAL GND L1
DRYER DUCT
BOOSTER
115 VAC DRYER AND
115 VAC DRYER AND
950-9351 CURRENT
950-9351 CURRENT
SENSOR SWITCH
SENSORS SWITCH
T1 L1
AC CURRENT SWITCH
LEGEND
115 VAC
230 VAC DRYER AND
230 VAC DRYER AND
950-9351 CURRENT
950-9351 CURRENT
SENSOR SWITCH
SENSORS SWITCH
T1 L1
AC CURRENT SWITCH
LEGEND
115 VAC
230 VAC
8089028 4-19-18
P/N: 8504207
NEUTRAL GND L1
DRYER LOAD
L2 GND L1
DRYER LOAD
