ACEGOO
Parameters
Dimmer Type:
High Side Dimmer
Max Current: 4 Amps
Work Voltage:
DC 12V-24V
Control Type:
PWM Dimming Control
Works With:
LED, Incandescent, Halogen
Certification:
ROHS, FCC, CE listed

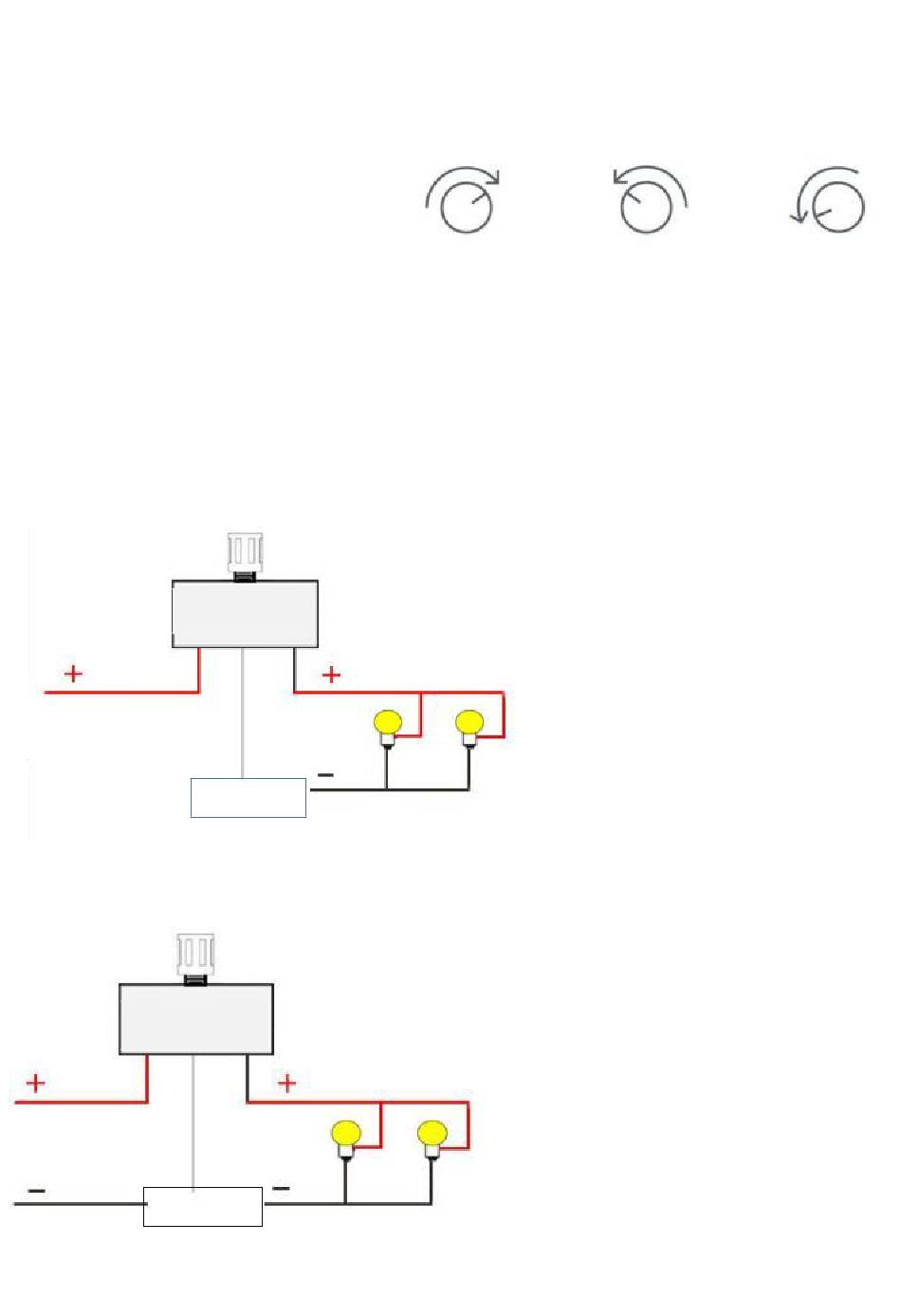

Two Wiring Scheme
Prior to installation, make sure the lamps are dimmable, otherwise this dimmer is not applicable.
Type I
The places that add dimmer, only have feed power positive to light fixture.
+ 12-24V
Power
Type II The places that add dimmer have both power and lamp positive and negative wires there.
RED WHT BLK
12-24V Power
Connected
DC12V Dimmer Switch
RED WHT BLK
NEG GND
Rotate clockwise
Light brighten up
Connection:
1.Dimmer
2.Dimmer
3.Dimmer
add to lamp negative wire.
Note:If can locate the lamp negative wire,
please connect dimmer white wire to lamp
negative wire.
Connection:
1.Dimmer
2.Dimmer
3.Dimmer
Power
Lamp
three wires all connected together
Part No. AX-12V-DS-M
Counterclockwise
Light dims down
RED
wire to power positive.
BLACK
wire to lights positive.
WHITE
wire to ground bus or
RED
wire to power positive.
BLACK
wire to lamp positive.
WHITE
wire,
Negative
wire,
Negative
wire,
A " click" sound
Light turned off
Advertisement
Summary of Contents for acegoo DC12V
- Page 1 ACEGOO DC12V Dimmer Switch Part No. AX-12V-DS-M Parameters Dimmer Type: High Side Dimmer Max Current: 4 Amps Work Voltage: DC 12V-24V Control Type: PWM Dimming Control Rotate clockwise Counterclockwise A ” click” sound Works With: LED, Incandescent, Halogen Light brighten up...
- Page 2 LED filament bulbs. Please make sure the LED light is dimmable, otherwise this dimmer is not applicable. Customer Support Please contact us freely if need help on installation or usage, we are ready to help at any time. E-mail: rvlites@outlook.com Https://www.acegoo.com...
