Crest Audio CC-STL Datasheet

POWER/OUTPUT MODULE
FOR CKS, CKV & CKX SERIES
POWER PROCESSING AMPLIFIERS
CC-STL
Sequential Turn-On/Off (STO); external DC voltage

Product Information

The CC-STL Module fits in the Power/Output bay located on the rear
panel of Crest Audio CKS, CKV & CKX Series Power Processing
amplifiers. It is the standard Power/Output module. It provides a simple
and convenient method of remote Sequential Turn-On/Off (STO) for
groups of amplifiers. The turn-on sequence is initiated by applying an
external DC voltage (+8 to +18 VDC) via contact closure to the Phoenix
STO connector terminals. The feed-thru turn-on delay is fixed at approx-
imately 200ms to reduce inrush current demands to the AC mains
source.

Features:

• Amplifier output terminals on barrier strip with 0.44" (11mm) screw spacing and 0.32" (8mm) lug spacing
• 5mm 4-pin Phoenix connector for sequential turn-on/off control
• Signal chassis ground lift jumper

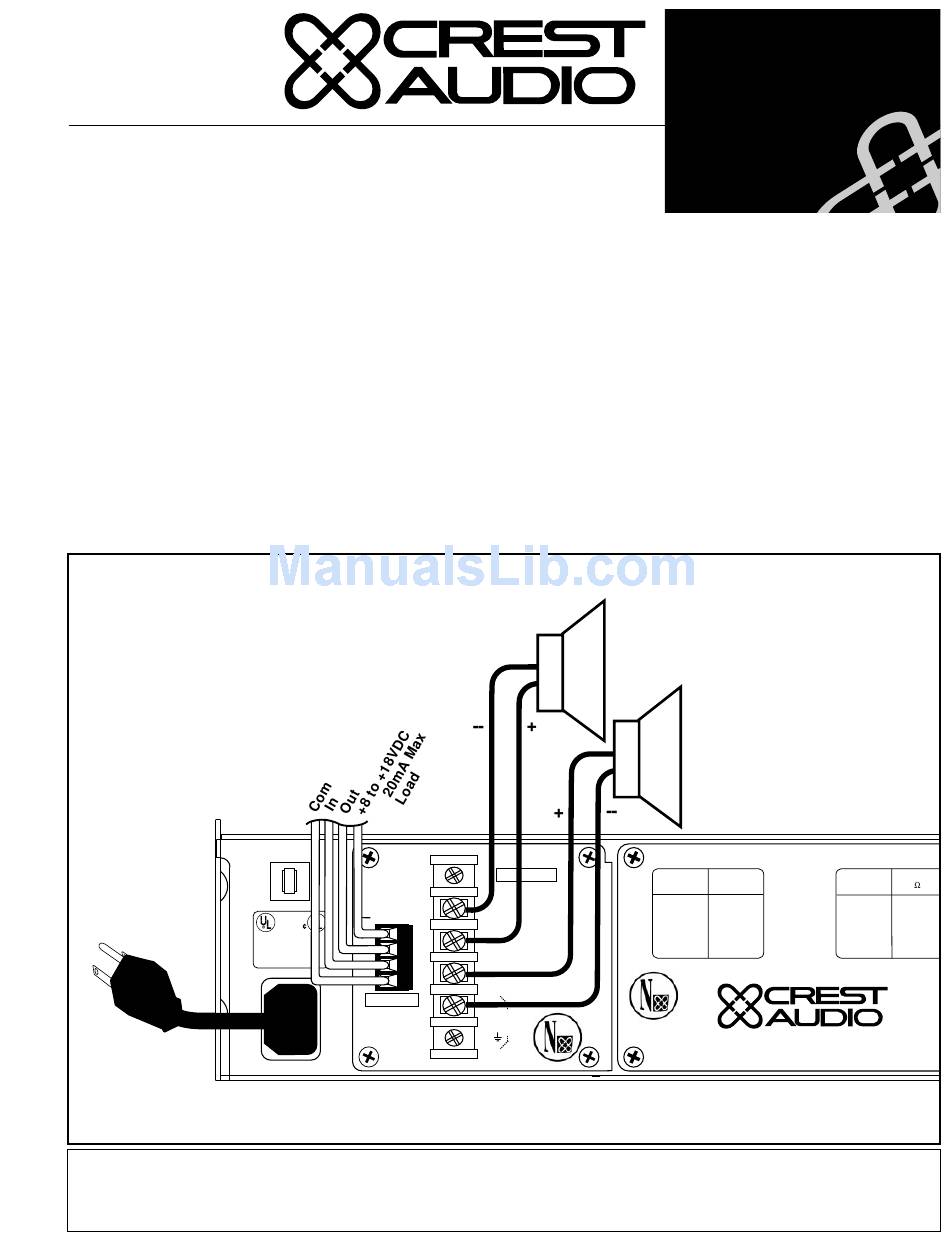

C C - S T L c o n n e c t i o n s
Sequential Turn-On/Off
USA-specification amplifier shown

Architects and Engineers Specifications - CC-STL.

The module shall plug into a Crest Audio CKS or CKV Power Processing amplifier in the
Power/Output bay. The module shall provide non-NexSys initiated sequential turn-on/off
capability for the host CKS and/or CKV amplifier. An external DC voltage (of +8 to +18
volts) shall be applied to the first amplifier in a chain to initiate the turn-on sequence.
connection to other
amplifiers
+8 to 18VDC
20 mA
LISTED 8B42
COMMERCIAL
POWER
In
AMPLIFIER
120V~60 Hz 15A
Out
Com
NEC
CLASS 2 ONLY
Model
CC-STL
Power
Processing
Modules
Should an amplifier in the chain be turned off or its circuit breaker
tripped, the CC-STL will continue to "pass-thru" the correct turn-on
voltage state to other amplifiers in the chain.
A three-position front-panel power switch is fitted to all CKS, CKV &
CKX amplifiers. This must be in the "Remote" position for the CC-STL
to initiate a turn-on sequence. Multiple external DC voltage sources can
be used to initiate STO in amplifiers at different locations or as the sys-
tem design requires.
CLASS 2 WIRING
Model
MAY BE USED
Name
Output
CKV 100
–
CKV 200
CKV 400
A
CKV 800
+
CKV 1600
CKV 2400
+
B
–
Signal
Ground
Lift
Jumper
A 5mm 4-pin Phoenix connector shall be provided to receive and pass on the turn-on initia-
tion voltage signal. The module shall provide outputs for both channels on barrier strip con-
nectors and a signal ground lift jumper. The module shall be designated the Crest Audio
model CC-STL.
Output Power Model
Name
@70.7V
CKS 100
50W
CKS 200
100W
CKS 400
200W
CKS 800
400W
CKS 800-2
800W
CKS 1200-2
1200W
CKS 1600-2
Designed & manufactured in the USA by:
Crest Audio Inc.
100 Eisenhower Dr.
Paramus, New Jersey 07652 USA
Output Powe
@8 /Ch.
50W
100W
200W
400W
400W
600W
800W
