Moen Align with MotionSense 7565E Series Manual

FAUCET DESCRIPTION
• Versatile, hands-free convenience in the kitchen
• Allows users to control the faucet in 3 unique ways: Wave Sensor, Ready Sensor and familiar handle
• Powered by 6 AA batteries or optional AC adapter with power splitter
• Reflex™ pulldown system offers smooth operation, easy movement and secure docking
• Metal construction with various finishes identified by suffix
• Quick connect installation
• Pulldown spray with 68" braided hose
• Control box flexible supply lines with 3/8" compression fittings
• High arc spout provides height and reach to fill or clean large pots while pull down wand provides
the maneuverability for cleaning or rinsing
OPERATION
• Lever style handle
• Temperature controlled by 100˚ arc of handle travel
• Operates with less than 5 lbs. of force
• Operates in stream or spray mode in the pulldown or retracted position
• Spout rotates 100 degrees
FLOW
• Flow is limited to 1.5 gpm (5.7 L/min) at 60 psi
CARTRIDGE
• 1255™ Duralast™ cartridge
STANDARDS
• Third party certified to IAPMO Green, ASME A112.18.1/CSA B125.1 and all applicable requirements
referenced therein including NSF 61/9G & 372
• Meets CalGreen and Georgia SB370 requirements
• Contains no more than 0.25% weighted average lead content
• Complies with California Proposition 65 and with the Federal Safe Drinking Water Act
• The backflow protection system in the device consists of two independently operating check
valves, a primary and a secondary which prevent backflow
• ADA for lever handle
WARRANTY
• Limited lifetime warranty against leaks, drips, finish defects to the original consumer purchaser
• 5 year warranty electronic operation defects to the original consumer purchaser
• 5 year warranty against leaks, drips, finish defects if used in commercial installations
• 1 year warranty against electronic operation defects if used in commercial installations
Wave
Sensor
Ready
Sensor
4-13/16"
(122mm)
6-15/16 "
(176mm)
2-1/16"
(52mm)

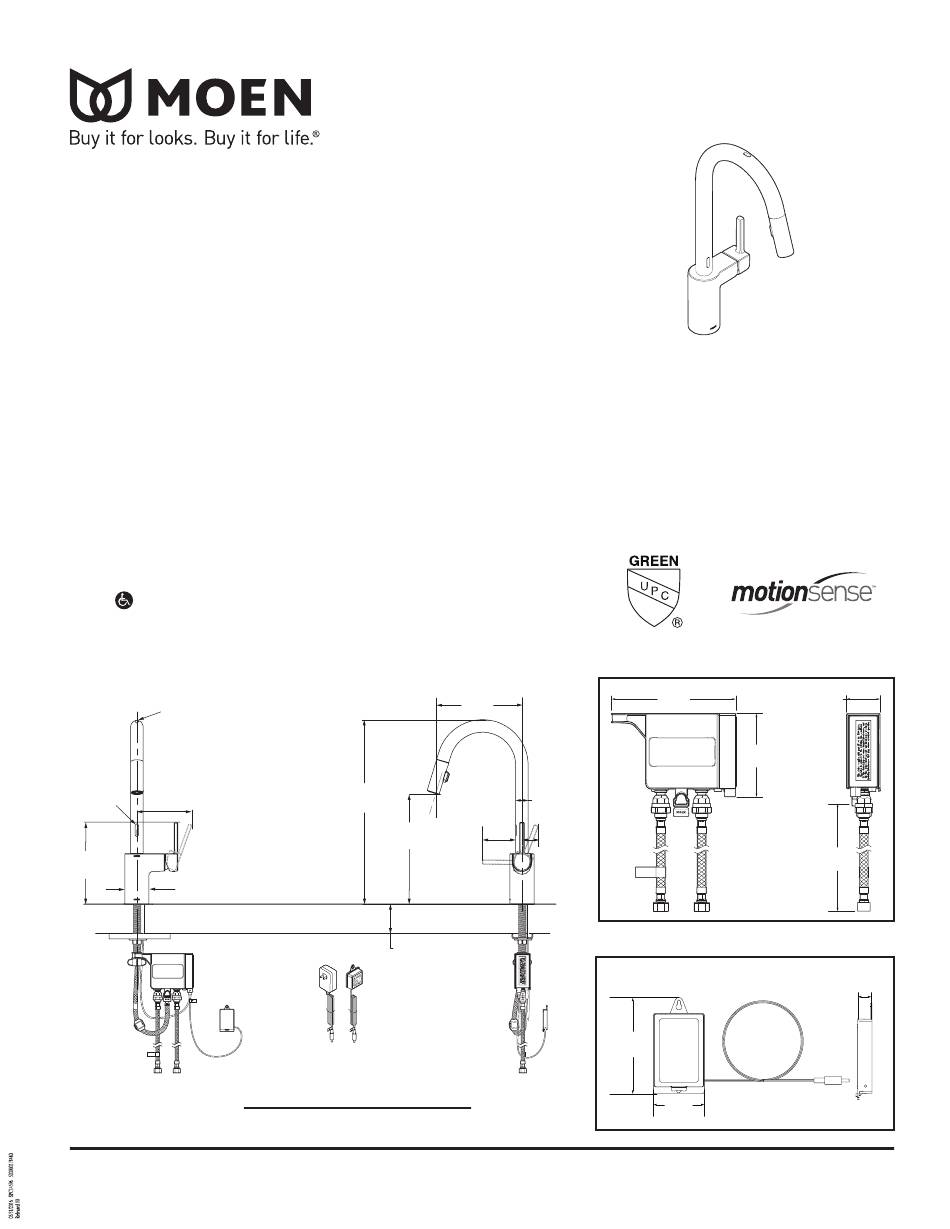

CRITICAL DIMENSIONS
Rev. 3/16
7-1/2"
(191mm)
15-5/8"
(397mm)
9-1/2"
(241mm)
3-1/2"
(89mm)
2-1/2" (63mm)
Max Deck Thickness
AC Adapter with Power Splitter
(sold separately)
169031
(DO NOT SCALE)
Specifications
Align with MotionSense™
Single Handle High Arc
Pulldown Kitchen Faucet
Models: 7565E series
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 1 HOLE, 1-1/2" (38mm) MIN. DIA.
(OPTIONAL 3-HOLE ESCUTCHEON
141002 SERIES AVAILABLE)
Close up view of Control Box
6-5/32"
(156 mm)
1-1/16"
(27mm)
7/8"
(19mm)
5"
(127mm)
2-5/8"
(67mm)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
1-21/32"
(42 mm)
4-1/8"
(105 mm)
29-3/8"
(746 mm)
Battery Holder
7/8"
(20mm)
Battery Holder Cable
36" (914mm)
www.moen.com
