Summary of Contents for HATHEPHS CS01

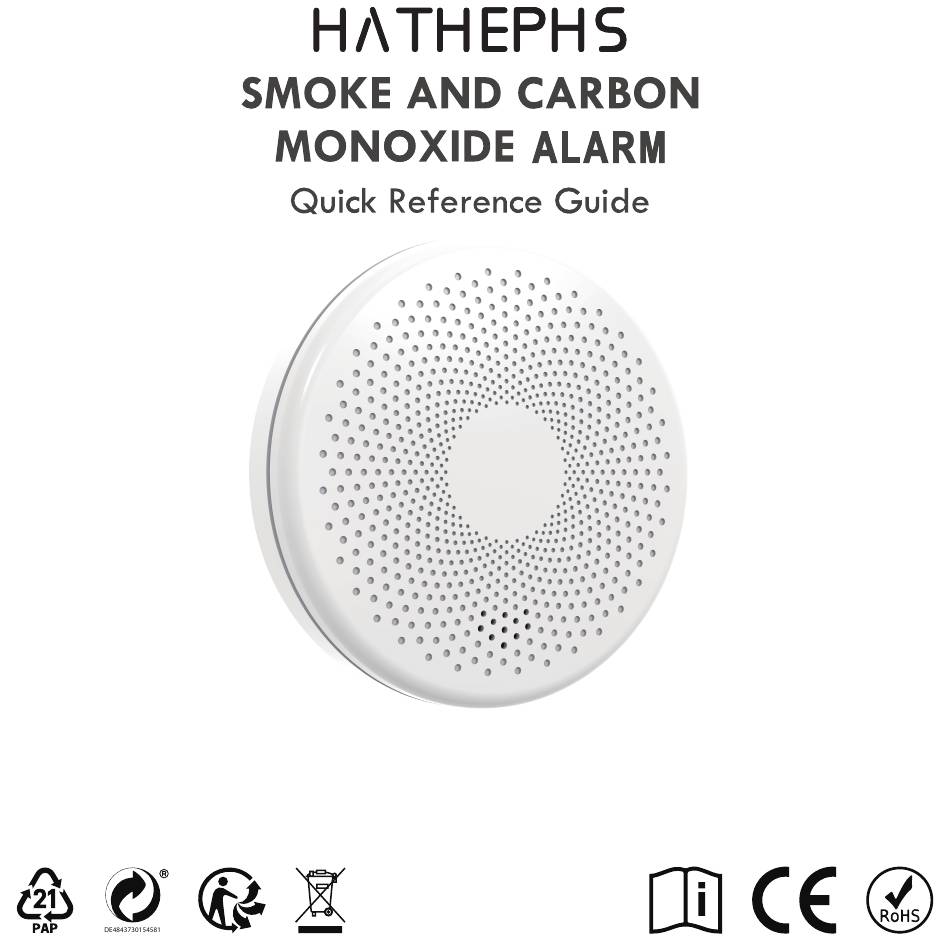

- Page 1 Model: CS01...
- Page 2 DC3V CR14505 lithium battery Power Supply 10 years Battery Life Smoke: Photoelectric CO: Electrochemical Sensor Type 50 ppm: 60-90 minutes 100 ppm: 10-40 minutes CO Sensitivity 300 ppm: 1-3 minutes 14-104℉ (-10-40°C) Operating Temperature 215-430 ft²(20-40㎡) Coverage Area ≤95%RH (non-condense) Operating Relative Humidity ≥85dB at 10ft (3m) Audible Alarm...
- Page 3 NOTE: The Test/ Silence button is the entire top cover.
- Page 4 Figure1 Figure2...
-
Page 5: Recommended Placement
Recommended Placement... - Page 6 Figure3 The device is turned off by default before leaving the factory. Before the device can be used normally, the product must be activated.
-
Page 7: Power Off
Power UP: Press the test button for over 10 seconds. When the red LED indicator lights up, release the test button. The alarm will power up and can work normally. Power Off: If you want to power off the device, press the test button for over 10 seconds. - Page 8 Status LED Indicator Audible Alarm Green LED flashes every 60 seconds Normal None 2 sets of 3 long beeps 2 sets of 3 red flashes followed by Test followed by 2 sets of 2 sets of 4 red flashes. 4 quick beeps. Unit detects 3 long beeps every Red LED flashes 3 times every 3 seconds.
- Page 9 Before using the alarm's hush feature, identify the source of the smoke/carbon monoxide and be certain a safe condition exists.
- Page 10 The Battery is low. As the battery is not replaceable, please replace the alarm as quickly as possible. Red LED flashes and the alarm delivers one beep every 40 seconds.
