Crest Audio CA2 Specifications

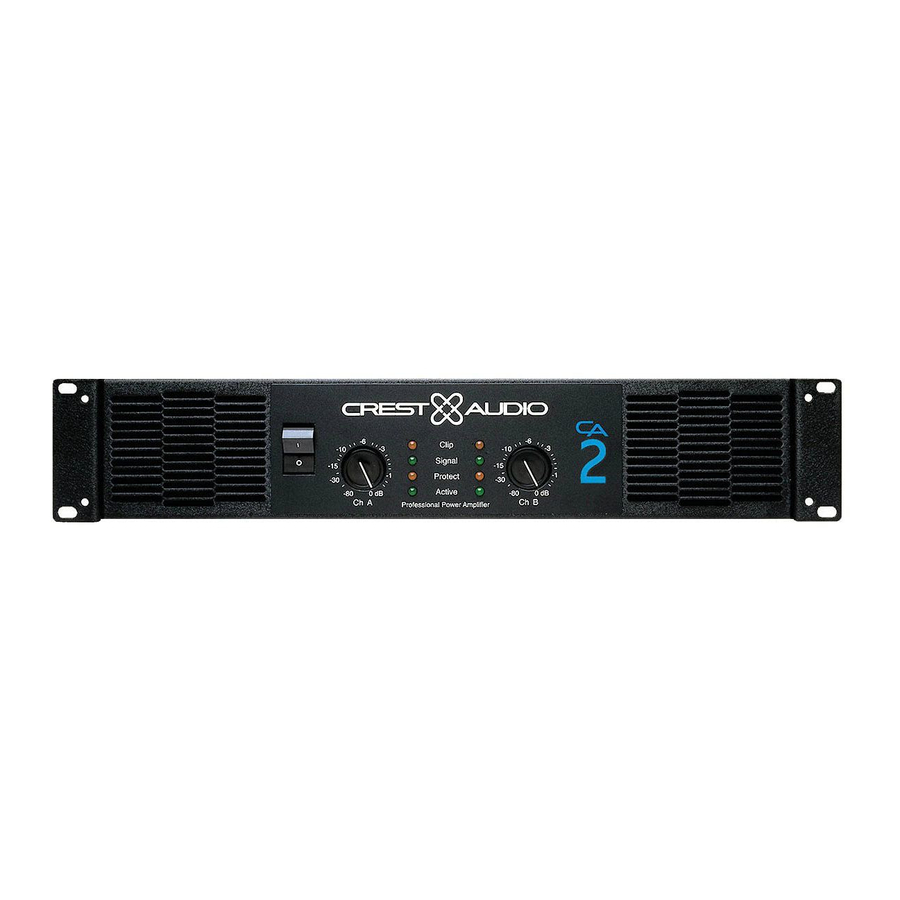

CA2 POWER AMPLIFIER

Product Description

The Crest Audio CA2 professional power amplifier is designed
to achieve unsurpassed sonic performance and long-term reliabil-
ity—even when operating under extreme stress—in touring or
fixed installation applications.
Absolute sonic accuracy is the hallmark of every Crest amplifier.
Bass is solid and defined to the limits of audibility, with ample
current reserves delivered by an "over-engineered" power supply
and advanced Class AB output circuit design. Wide-bandwidth
output devices assure detailed, transparent high frequency
response.
Construction and Quality Control
The CA2 is built exclusively in Crest's own USA manufacturing
facility, with internal components selected for premium quality
and proven durability. Each modular subassembly is pre-tested,
and the assembled CA2 receives a rigorous "hot room" burn-in
before thorough final checkout on precision test equipment.
Power Specifications:
Other CA Series Power Amplifiers
4 Ω S t e r e o
CA4
1kHz, .01% THD+N 4 3 5 W
20Hz-20kHz, 0.1% THD+N 4 0 0 W
P o w e r S p e c i f i c a t i o n s
1kHz, 0.01% THD+N
20Hz-20kHz, 0.1% THD+N
Figures are watts per channel, both channels driven.
CA6 CA9 CA12 CA18
6 0 0 W 9 0 0 W 1 2 0 0 W 1 8 0 0 W
5 0 0 W 8 0 0 W 1 1 0 0 W 1 7 0 0 W
8 O h m s S t e r e o
1 6 0 W
1 5 0 W
CA2 Features
• Crest's legendary "overbuilt" power supply
• Toroidal power transformer
• Latest generation of high-speed, wide-bandwidth output
devices
• Twin tunnel cooling with back-to-front air flow
• Dual, variable speed DC fans
• Massive, extruded aluminum heat sinks
• Balanced XLR and 1/4-inch (TRS) inputs
• 5-Way binding post outputs or Speakon™ connectors
(market dependent)
• Stereo/parallel/bridged mono mode selector switch
• Ground lift switch
• TourClass ® protection circuits:
- ACL (Active Clip Limiting) prevents speaker damage with
gentle gain reduction at clip threshold.
- IGM (Instantaneous Gain Modulation) monitors speaker
loads to detect conditions that may overstress output
devices.
- AutoRamp gradually increases gain to attenuator setting
level when amplifier is turned on.
- TourClass also includes comprehensive thermal manage-
ment, and short circuit, DC voltage, turn-on/off transient,
current inrush and sub/ultrasonic input protection.
• Input sensitivity selection
• Recessed, stepped attenuators
• Front panel circuit breaker switch
• Modular construction
• Five-year warranty*
4 O h m s S t e r e o
2 5 0 W
2 0 0 W
8 O h m s B r i d g e d
5 0 0 W
4 5 0 W
