Maker Hart JUST AMP 5 Owner's Manual

*G6047110R0-00*
JUST AMP 5
Thank you for your purchase of the JUST AMP 5. In
order to obtain the best possible performance from
your JUST AMP 5 and to ensure its proper user,
please read and understand these instructions before
use.
■
Main features
Phono input
Onboard pre-amp for connecting turntables with MM
cartridges.
Return/ Send
Connect external effects modules / mixers to modify
tone and add effects.
Tripod mount (1/4-20 UNC)
Standard tripod mount point. Mount the amp on a
tripod with mounting screw length 4 mm or less.
■
Specifications
Output power SNR
25W x 2 RMS >90dB
Speaker impedance
Power supply
4-8 Ohm
DC 19V/3A power adapter
Frequency range Dimensions
20Hz-20KHz 139 x 91 x 48 mm / 5.5" x 3.6" x 1.9"
THD+N
Weight
<0.2% 370g / 13 oz (amp unit)
■
Included accessories
19V/3A DC power adapter x 1
RCA to RCA audio cable x 1
3.5 mm to 3.5 mm audio cable x 1
RCA Speaker wire x 2
User's manual x 1
■

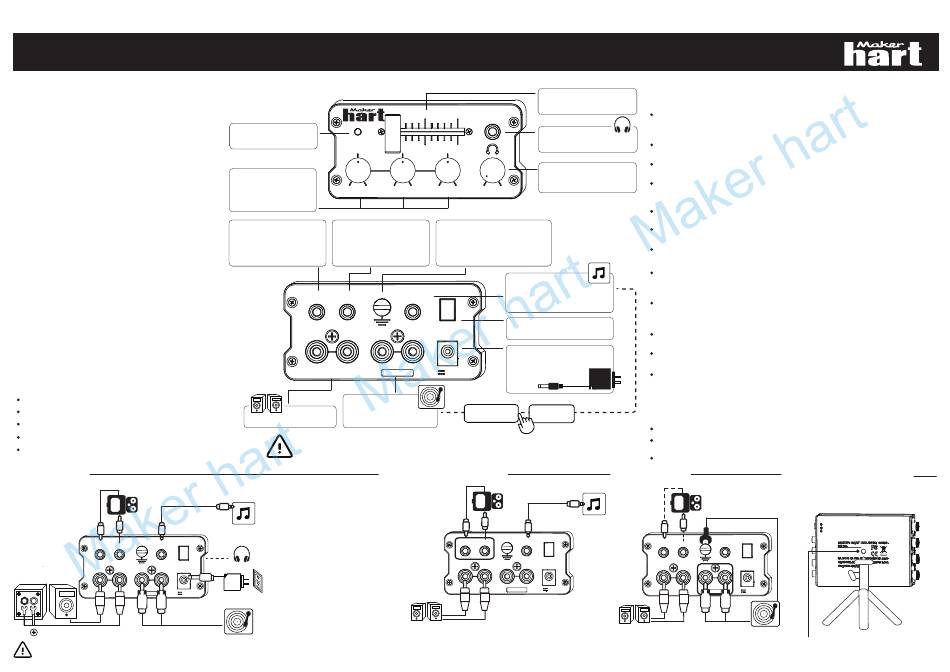

Operation
OUT
3.5mm to 3.5mm audio cable
IN
RETURN SEND LINE IN
POWER
R L R L
SPEAKER OUT PHONO IN DC 19V 3A
RCA speaker cable RCA to RCA audio cable
White
Do not connect the PHONO IN to the SPEAKER OUT, as doing so will damage the device.
G6047110R0-00
Owner 's Manual
■
Panel controls
Power indicator
0
Bass : Bass level
-10 +10 -10
Middle : Mid level
BASS
Treble : High level
Return
Send
Receive signal output
Send signal to effects
from Send after it has
modules/mixer.
been processed.
RETURN SEND
R L R
SPEAKER OUT
Photo inputs
Supports turntables
Speaker outputs
with MM cartridge.
Choose between Photo or Line input; if both are connected, Line will take priority.
1. Connect the 19V DC power supply。
2. Connect audio sources to LINE IN /
PHONO IN.
3. Connect headphones or speakers to
the audio outputs.
4. Turn on the power.
5. Adjust volume, bass, mid and treble
DC power supply
as desired.
Main volume control
5
JUST AMP
Master
Headphone output jack
10
0
0 0
Headphone volume
control
+10 -10 +10 0 10
MIDDLE TREBLE PHONE
Ground screw
Provides ground point for
turntables in order to reduce
noise.
LINE input
Connect CD players, DVD
LINE IN
players and other sources.
POWER Power switch
L
DC power input
Connect 19v DC power
supply.
PHONO IN DC 19V 3A
PHONO IN LINE IN
■
Return/ Send
OUT
IN
RETURN SEND LINE IN
POWER
R L R L
SPEAKER OUT PHONO IN DC 19V 3A
Signal can be sent from SEND to effects
modules / mixer. The processed signal sent back
to the RETURN will be output via the headphone
/ speaker outputs.
■
Important Notes
Power supply
Only use the 19v DC power supply included with the product. Use of other
power supplies may cause damage, short circuits, poor performance or
other problems.
It is recommended to connect the power supply on its own circuit in order to
avoid receiving noise from other equipment.
Before connecting to other devices, be sure to power off all devices in order
to prevent damage.
Do not connect equipment that generates circuit noise, such as electric
motors, dimmable lighting systems, etc., to the same electrical circuit as the
product.
Do not step on or place heavy objects on the product, power cable or
interconnects.
When disconnecting the power cable, grasp the head of the cable, not the
wire section.
Disconnect the power during prolonged periods of disuse.
Care
For regular cleaning, use a soft, dry cloth. For removing stubborn dirt,
use a mild, non-abrasive cleaning agent. Be sure to wipe dry afterward
using a soft, dry cloth.
Do not use cleaning agents containing benzene, alcohol or other solvents
to clean the product which may cause discoloration or deformation.
Placement and storage
Do not place the product in extreme temperature environments or
expose it to direct sunlight in an enclosed space, such as an automobile.
Avoid use in places that are dusty, humid or experience high levels of
vibration.
Placement of the product near high powered amplifiers, transformers
and other devices may produce noise in this device.
Additional precautions
If any of the following occur, disconnect power to the 19v DC power
supply immediately:
Choose 1 of 2
If the DC power supply is damaged and emitting smoke or odors.
If any external object is inserted into the device, or if the device comes into
contact with liquid.
The device shows unusual behavior or a marked change in performance.
■
Phono In
OUT
IN
RETURN SEND LINE IN
POWER
R L R L
SPEAKER OUT PHONO IN DC 19V 3A
Supports MM cartridge turntables. External
effects modules / mixer can be connected to add
effects.
E n g l i s h
■
For Camera stand
For use with 1/4-20 UNC mount
screw with length of 4mm or less.
