HOMOTEK F-PDL-001-BK Installation Instructions

INSTALLATION INSTRUCTIONS
COMBINATION SLIDING DOOR PULL AND LOCK
Dia x Depth:1/2x1/4 in

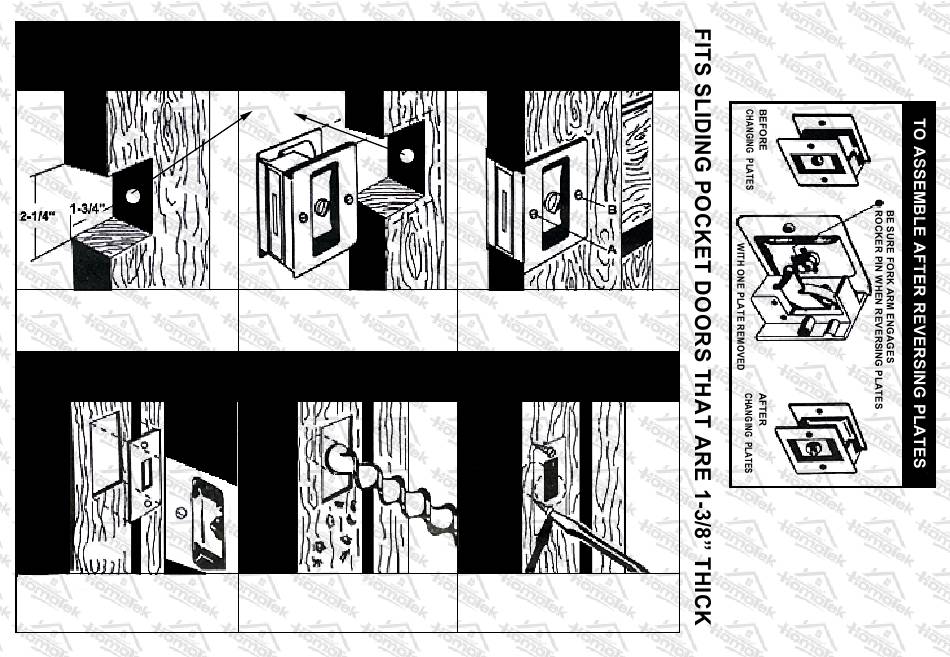

Cut one simple notch in the door.
Drill a dia. 1/2" hole ,1/4" deep, 1"
down from the top of the door cutout.
INSTALLATION OF STRIKE PLATE FOR LOCKING SET ONLY
JAMB
Mark and mortise strike on jamb
to correspond to lock position on door.
Slip pull into position as shown.
Mark screw hole locations on door.
Countersink to 5/16" dia.
(15/16)
DIAM
WOOD
BIT
Drill a 15/16" diameter hole 1/2"
deep in the center of the mortise .
Fasten side plates with wood screws.(B)
Align center section by loosening
and tightening machine screws.(A)
Screw strike plate into position
using #6 x5/8 large,flat head
wood screws.
