WESTBRASS D271H-62 Installation

FAUCET INSTALL ATION
DO NOT PLUG IN HEATING UNIT
NOTE: Lines lines are color coded with red or blue tape
and are refered to as Red line and Blue line.
Step 1 - Mount to Sink
Straighten lines being careful not to kink.
Remove mounting nut, washer and support plate from
threaded mounting tube.
Insert lines through 1 3/8" hole in sink or counter.
From underneath sink, slide support plate, washer and
mounting nut over exible rubber tube and threaded
mounting tube.
Tighten the mounting nut to secure.
Do not over-tighten.

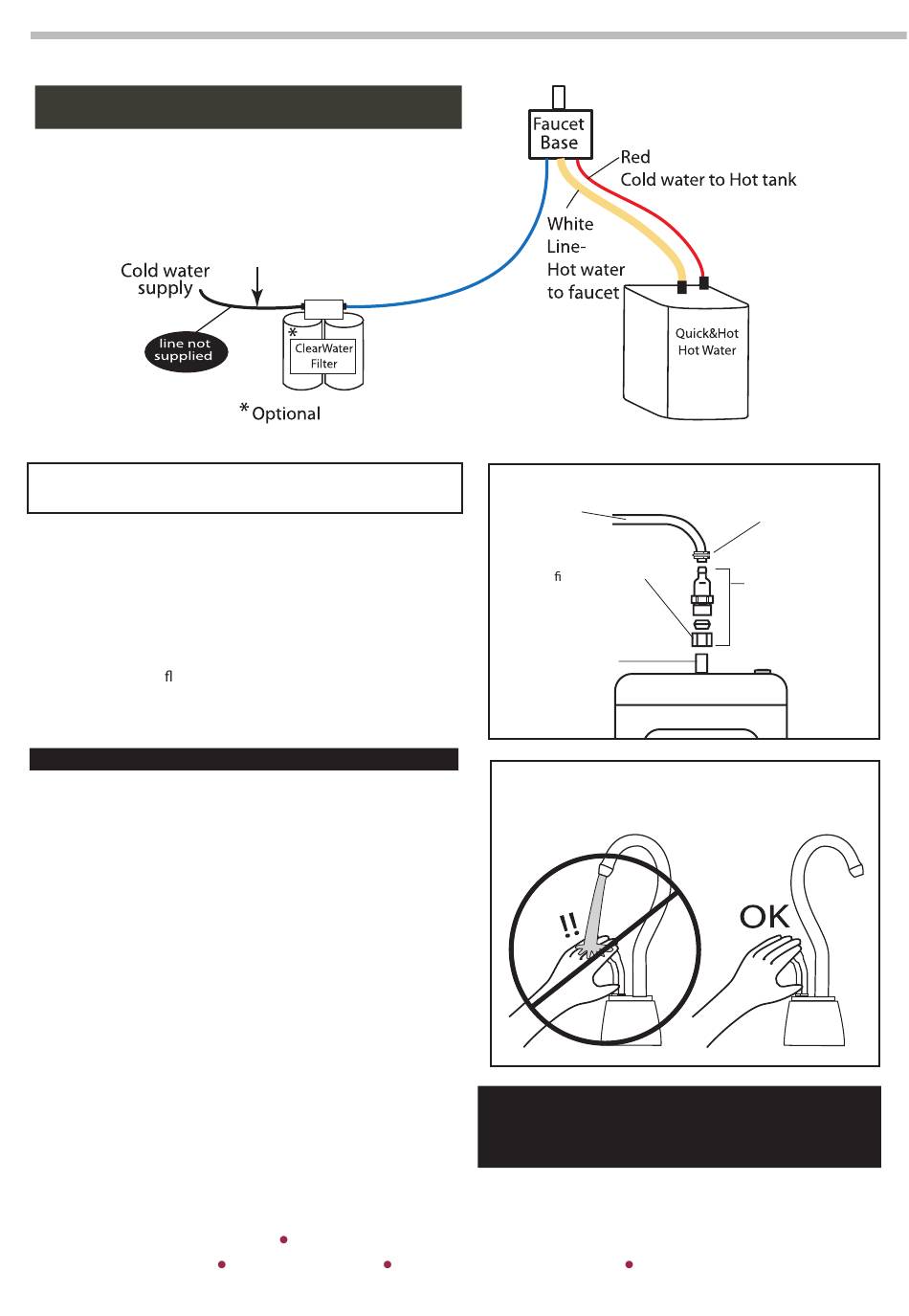

Step 3 - Connect to Hot Water Dispenser
Refer to tank installation instructions and illustration above to
connect the Red line from the faucet to the rear corner inlet
tube on top of the tank.
Step 4 - Connecting
Connect Blue line to cold water supply. Refer to tank
instructions for connecting to water supply line.
Return to tank installation instructions to complete
plumbing connections and installation.
WARRANTY: Quick&Hot Faucets are warranted for 1 year
from the date of purchase.
Go to www.westbrass.com or
call (800) 39-BRASS for further details.
