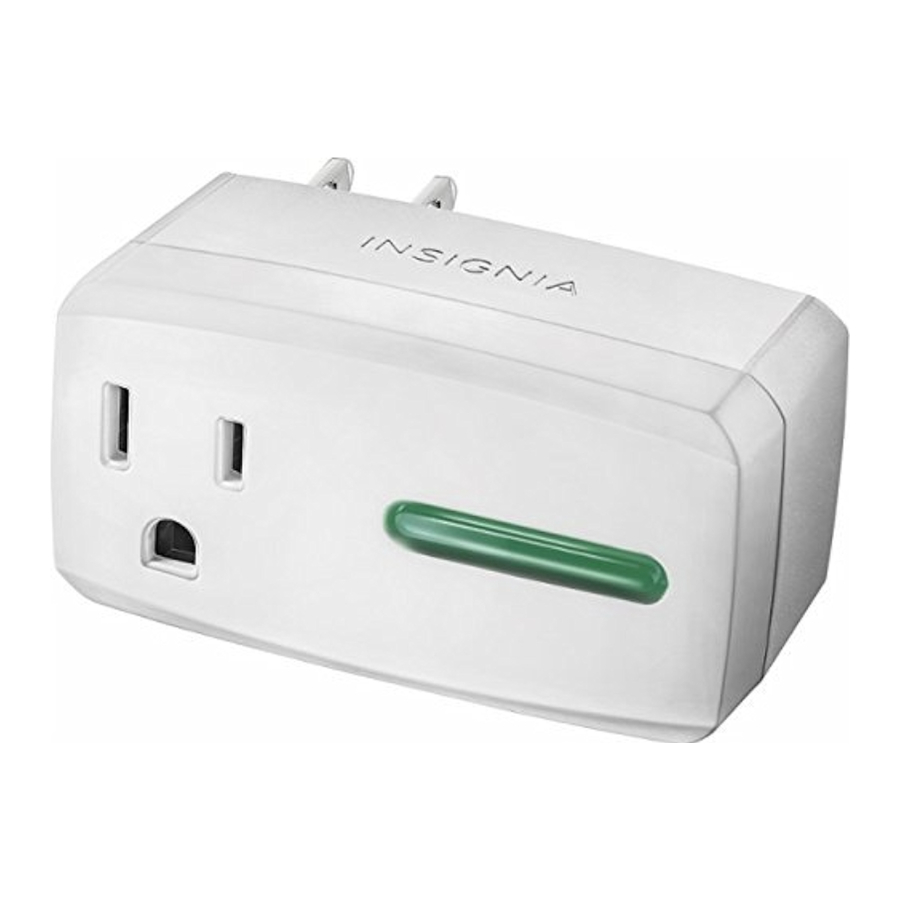

Insignia NS-SP1X7 Manual

SYSTEM REQUIREMENTS

  • Home WiFi network
  • Insignia Connect app
  • iOS 9 or later
  • Android 6.0.1 Marshmallow or later

ELECTRICAL RATINGS

  • Electrical rating: 15A, 120Vac, 60Hz
  • Resistive: 1800W
  • Tungsten: 960W

SETTING UP & USING YOUR SMART PLUG

  1. Connect your mobile device to a WiFi network.
    www.apple.com
    play.google.com
  2. Download and open the free Insignia Connect app.
  3. Log in or sign up for an Insignia or Best Buy account.
  4. Plug the Smart Plug into an outlet. A blinking green LED means it's ready for setup.
    Note: If LED is not blinking, do a factory reset. See Troubleshooting.
  5. In the app, tap Set Up Device and follow directions.
  6. Plug a fan, coffee maker, decorative lights, and more into the plug and control it from the app, or use the Smart Plug button. You can also use the Smart Plug to set a schedule for your device.

FEATURES

  • Press once to turn the plug on or off
  • Lights up when the Smart Plug is on and electricity is flowing through it
  • Flashing green: searching for/disconnected from WiFi network
  • Solid green: connected to a WiFi network and plug is on
  • No LED: outlet is off or LED has been disabled in the app

TROUBLESHOOTING

Problem Solution

The app or WiFi cannot find the Smart Plug

  • Make sure that your mobile device and the Smart Plug are connected to the same WiFi network and your network is working properly.
  • Reset your Smart Plug. Press and hold for 10 seconds (LED will flash green and the Smart Plug will reset upon release).

I can't find the app

Get the app from the Apple App store or Google Playstore. Your device must have iOS 9 or later or Android 6.0.1 Marshmallow or later.
I can't turn devices on or off with the app
  • Make sure the devices you connected to the Smart Plug are set to the on position.
  • Make sure your mobile device and the Smart Plug are connected to the same WiFi network.

I can't configure the Smart Plug

Press and hold for 10 seconds to reset (LED flashes green and the Smart Plug resets upon release). Use the app to reconfigure network settings.

LED does not turn On

Make sure the LED is not deactivated in the app

How do I do a Factory Reset

Unplug the Smart Plug, then press and hold the power button. Continue holding the button, plug the Smart Plug into an outlet, then release the button when you hear a click (about 4 seconds). The LED will be solid.

SAFETY INFORMATION

  • Plug directly into an electric outlet (not into an extension cord)
  • For indoor use only
  • Remove the Smart Plug from the outlet before cleaning
  • Keep children away from the Smart Plug and the outlet
  • Test the device locally for safe operation before attempting to control it remotely
  • DO NOT use with medical or life support equipment.
  • DO NOT clean with liquid
  • DO NOT remove the ground pin (middle pin)
  • DO NOT use in wet or damp areas
  • DO NOT exceed the recommended electrical ratings
  • DO NOT use in precision timing applications where inaccurate timing could be dangerous, such as sunlamps or saunas.
  • DO NOT use with devices that should not be operated unattended
  • DO NOT use with an outlet controlled by a wall switch as the switch may be turned off
  • Operating ambient temperature: 0° to 40°
