Anker Folio Manual

Package Contents

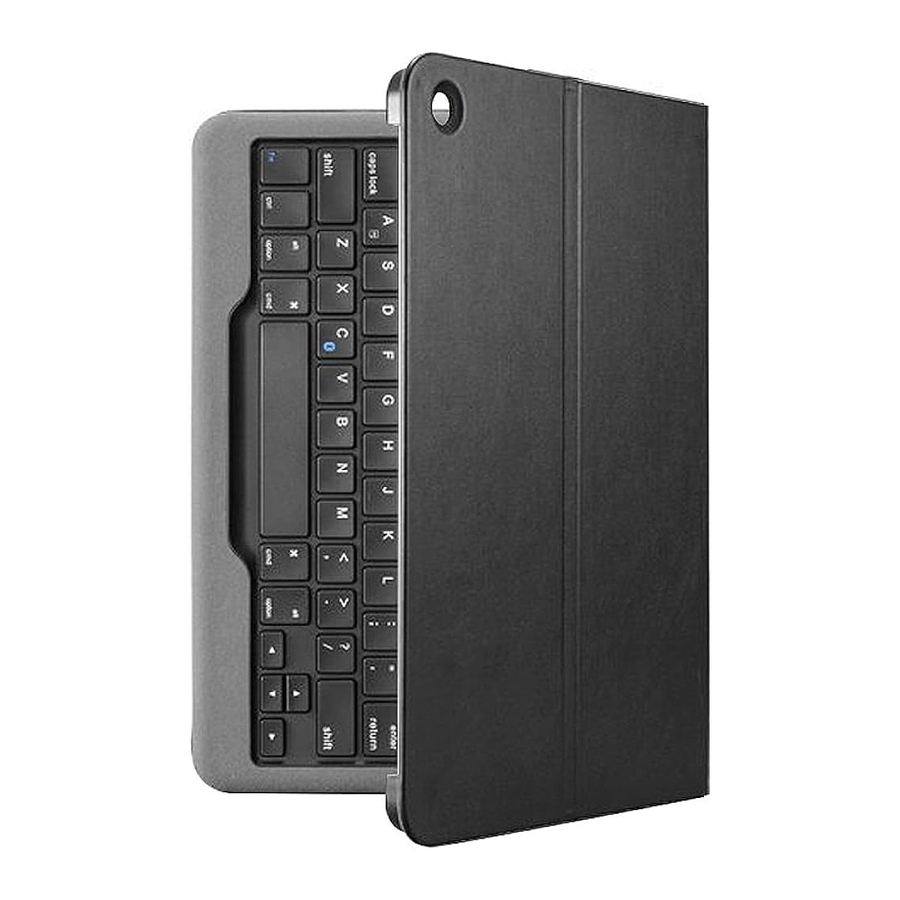

• Anker Bluetooth Folio Keyboard Case for iPad 4 / 3 / 2
• USB charging cable
• Welcome guide

Features

• Notebook design resembles a laptop and complements your iPad.
• Premium exterior synthetic leather cover with inner microfiber unibody keyboard delivers a unique touch experience.
• iPad snaps to a built-in magnetic viewing angle designed for typing and media playback.
• Once paired via Bluetooth, iPad connects to the keyboard automatically when locked into position on the embedded magnetic strip.
• Opening and closing the case automatically triggers sleep or wake modes.
• Rechargeable high-capacity lithium battery lasts for over 6 months between charges (based on 2 hours of use per day).
• Molded key caps deliver whisper-quiet, comfortable typing.

Product Overview

1. Back to Home
2. Brightness Down
3. Brightness Up
4. Keyboard Display
5. Copy
6. Paste
7. Switch Input Language
8. Previous Song
9. Play/Pause

10. Next Song
11. Mute
12. Volume Down
13. Volume Up
14. Screen Lock / Unlock
15. Bluetooth Pairing
16. Caps Lock / Bluetooth Indicator
17. Power Indicator

Special Input for UK Keyboard

For the Euro sign (€) press and .
For the hash sign (#) press and .

Specifications

Installation and Removal Instructions

1. Install
   1. Align iPad horizontally with the brackets and lower one side onto the inside front cover.
   2. Apply pressure on the other side until your iPad snaps securely into the brackets.
2. Remove
   1. Apply pressure on the small gap between the top left corner brackets.
   2. After the left side has come out, slide the rest of your iPad out of the case.

Pairing Instructions

1. Once installed in the case, bring the bottom half of the iPad forward towards the keyboard.
2. Lock the lower edge of the iPad into position on the magnetic strip to create an upright viewing angle. The green Power Indicator will go on for 2 seconds.
3. Simultaneously press the Fn and Bluetooth keys to enter pairing mode. The blue Bluetooth Indicator will start to flash rapidly.
4. Activate your device's Bluetooth function and search for the keyboard case.
5. Once the Bluetooth keyboard case has been found, click on its name to connect.
6. Enter the password code as displayed on the screen.
7. Once the Bluetooth keyboard case has successfully connected to your device, the Bluetooth Indicator will turn off.
   After pairing for the first time, your device will connect to the keyboard automatically when locked into position on the embedded magnetic strip.
   Note: In case of connection failure, delete the pairing record from your device, and repeat the procedures above.

Power Saving Mode

The keyboard case will enter sleep mode after being idle for 10 minutes. To activate it, press any key and wait for 2 seconds.

Charging Instructions

When battery power is low, the Power Indicator will turn red and begin to blink, indicating that it is time to recharge the keyboard case.

1. Connect the micro end of the USB power cable to the micro USB port on the keyboard case.
2. Connect the other end of the cable to a power adapter or computer USB port.
3. The Power Indicator will turn red while the keyboard case is charging. Once it is fully charged, the Power Indicator will turn green.

Usage Tips

• Do not place heavy objects on the keyboard case.
• Do not drop the product, bump it against hard surfaces, or dismantle it.
• Keep the product away from oil, chemicals, and liquids.
• Clean the keyboard by lightly wiping it with a slightly damp cloth.
• Dispose of batteries according to local laws.

Contact Us

For any inquiries or comments concerning our products, please send an email to support@ianker.com, and we will respond to you as soon as possible. If there is any quality-related issue with the product, you may request a REPLACEMENT OR REFUND by submitting a request form at www.ianker.com/support.

Statement

• We're only able to provide after-sales service for purchases made directly from Anker. If you purchased through a different retailer, please contact them for any exchange or refund requests.
• Please note that unauthorized reselling of Anker products is prohibited.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Anker Folio Manual
