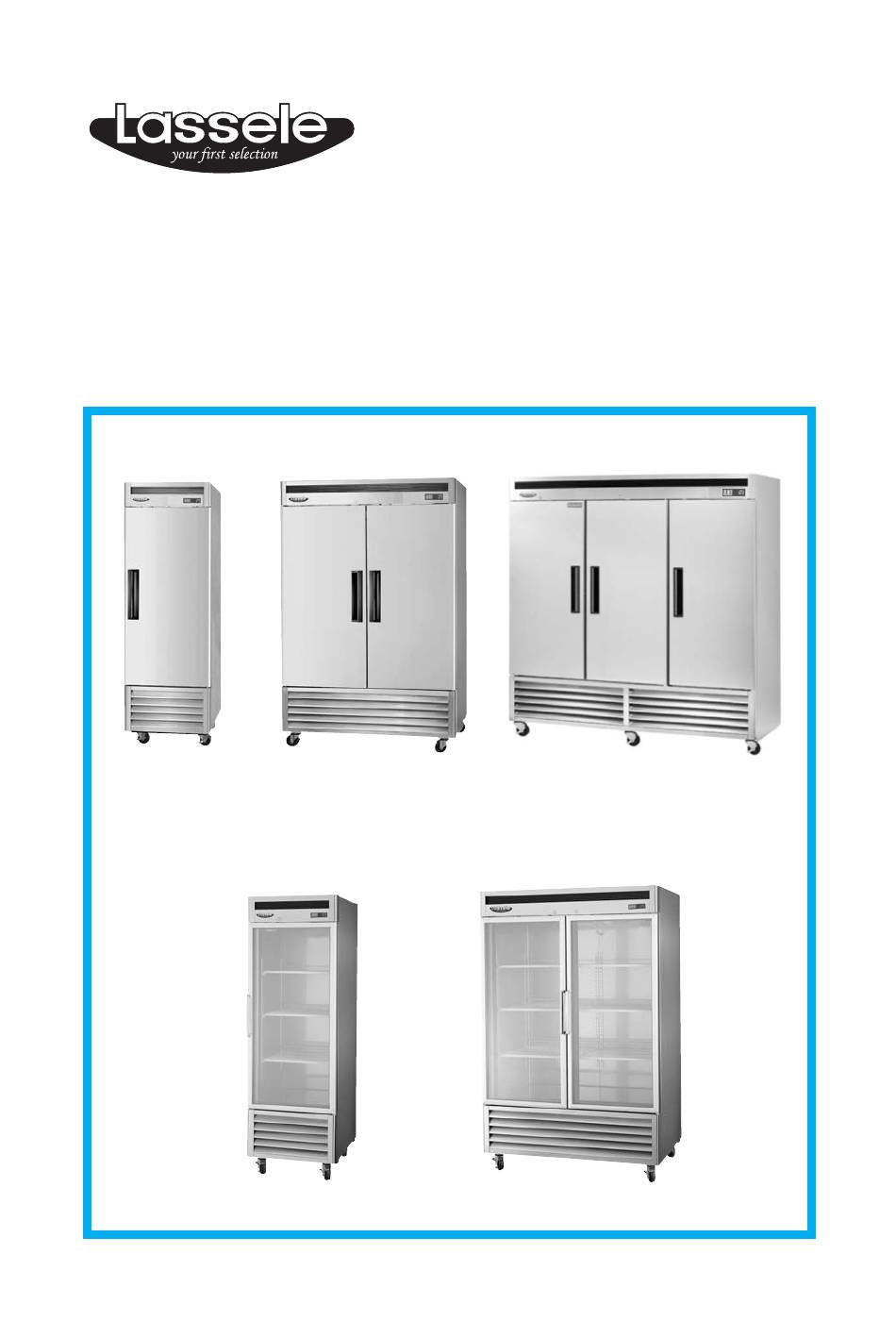

Refrigerator
Freezer
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
LRB-771PC
LFB-771PC
LRB-771PCG
CAUTION!
PLEASE KEEP POWER SWITCH ON
BEFORE OPERATING THE UNIT
<Solid Door>
LRB-1471PC
LFB-1471PC
<Glass Door>
LRB-72T
LFB-72T
LRB-1471PCG
R512A-881
Advertisement
Table of Contents
Related Manuals for lassele LFB-771PC
Summary of Contents for lassele LFB-771PC
- Page 1 PLEASE KEEP POWER SWITCH ON BEFORE OPERATING THE UNIT Refrigerator Freezer Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! <Solid Door> LRB-771PC LRB-1471PC LRB-72T LFB-771PC LFB-1471PC LFB-72T <Glass Door> LRB-771PCG LRB-1471PCG R512A-881...
-
Page 2: Specifications
LRB-771PC R-134a 123 kg LRB-1471PC R-134a 168 kg LRB-72T R-134a 230 kg Solid Door Freezers MODEL COMP. H.P REFRIGERANT WEIGHT LFB-771PC R-134a 129 kg LFB-1471PC R-404A 183 kg LFB-72T R-404A 254 kg Glass Door Refrigerators MODEL COMP. H.P REFRIGERANT WEIGHT... -
Page 3: Installation
INSTALLATION 1. GOOD AIR CIRCULATION - Be sure to avoid any object which will restrict exhausted air flow. - Be sure that there is ample space so that air can flow through the rear of the unit. - The back of the unit should be located no less than 5 inches from the wall. 2. - Page 4 CLEANING 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water with soap. - Do not use an abrasive cleaner because it will scratch the surface. 2. CLEANING THE CONDENSER FINS - To maintain proper refrigeration performance, the Condenser coil must be free of dust, dirt, and grease.
-
Page 5: Energy Star
ENERGY STAR This Energy star labeled product may save you money on your energy costs. Ⓡ ENERGY STAR OPTION AVAILABLE ENERGY STAR qualified models feature highly efficient compressors, generously sized condensers and evaporators and EC evaporator motors. These models may also qualify for energy rebate programs. Ⓡ... -
Page 6: Basic Operation
4. Temp. Control range 28℉ ~ 39℉ (-3℃ ~ 7℃) 5. The interior light is activated by the door switch when the door is opened. 6. Evaporator fan motor(s) will run after all doors are completely closed. LFB-771PC FREEZER LFB-1471PC LFB-72T 1. -
Page 7: Display Panel
DISPLAY PANEL INSIDE TEMP. TEMP. CONTROL BUTTON 1. UP / DOWN BUTTON (Temperature control button) - By pushing the up/down button, you can set the inside temperature. 2. DEFROST - The electronic defrost controller is set at the factory to provide a defrost cycle every 8 hours. -
Page 8: Troubleshooting Guide
TROUBLE SHOOTING GUIDE SYMPTOMS CAUSES SOLUTIONS Refrigerator/Freezer is The Temp. is set too low (high) Push the button to a warmer to maintain food freshness. (colder) position. freezing (thawing) food. Check the power cord to The unit does not There is a power make sure the unit is plugged connection failure problem. - Page 9 MEMO...
- Page 10 MEMO...
- Page 11 MEMO...
