Assembly Instruction
Trailer kit for twin-wheels
for TAMIYA Trucks (1:14)
Best.-Nr.: 2017-8522-xTD
Version 1.0 – 30.06.2017
MDTechShop – Torfstrasse 7 – 71229 Leonberg - Email: team@mdtechshop.de

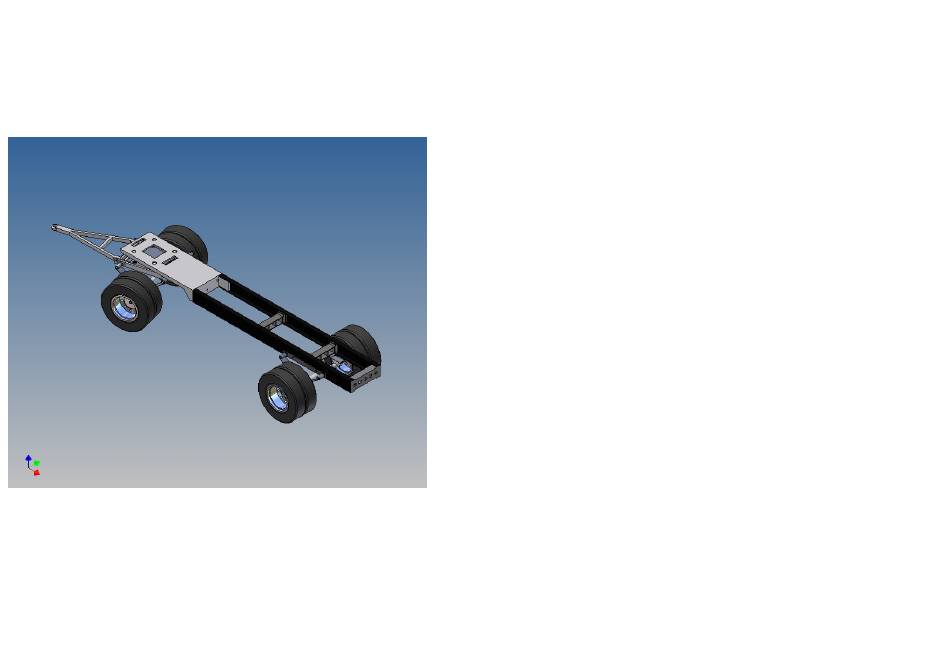

General Description
This parts set for a trailer as an accessory was designed
for the TAMIYA Trucks (1:14).
The complete rotary tool unit, the drawbar, middle and end beam as well as
the leaf springs consist of high-strength PLA (3D printing).
The aluminum axles come from own production and are designed for Tamiya's
twin-wheel rims.
The kit contains 2 frame profiles (l = 33cm) and a turntable.
For the drawbar are 2 different drawbar eyes (for Carson / TTM / Wedico)
enclosed.
In order for this trailer to be designed individually, all drilling holes must be
drilled in the rear frame part, at its own discretion. For this purpose, a drilling
template is provided for the spring elements, front / middle and end traverses.
Total length with drawbar: 62,5 cm
Total frame length: 48,4 cm
Frame width: 6,2 cm
Hook height: 7,8 cm
Frame height above stand area: 9,3 cm
Assembly Procedure
Before you put the parts together please read the assembly instructions
carefully and pay attention to the assembly sequence and test the fitting
accuracy of the parts before gluing them together.
The post-processing of the PLA parts is left to each model builder
himself, depending on the accuracy of the fit.
