- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG WDP3D Owner's Manual Shop genuine replacement parts for LG WDP3D Find Your LG Washer Parts - Select From 393 Models -------- Manual continues below --------...
- Page 2 SERVICE MANUAL PEDESTAL For washer, dryer, and combo LG 27" CAUTION : READ THIS MANUAL CAREFULLY TO DIAGNOSE CORRECTLY BEFORE SERVICING THE UNIT. MODEL : WDP1*/WDP2*/WDP3*...
- Page 3 INSTALLATION Attach the double-faced tape of the bracket to the WARNING washer/combo as shown so the bent parts of the brackets align with the edge and can be attached Excessive Weight Hazard to the pedestal with screws. Two or more people may be needed to install and NOTE : Attach the lower side first.
- Page 4 INSTALLATION Attach the double-faced tape of the bracket to the WARNING dryer as shown so the bent parts of the brackets align with the edge and can be attached to the Level both appliance and pedestal after the pedestal with screws. installation or service.
- Page 5 DISASSEMBLY INSTRUCTIONS Protect the floor with a large piece of cardboard. Remove three (3) screws on the drawer. Lay the appliance on the cardboard. Be sure the cardboard is under the entire lower back of the appliance. Remove two (2) screws on the either side of the drawer.
- Page 6 DISASSEMBLY INSTRUCTIONS Loosen the leg using the wrench.(supplied) Remove four (4) screws (two on each side) on both side of slide. Remove twelve (12) screws on the bottom of the pedestal.

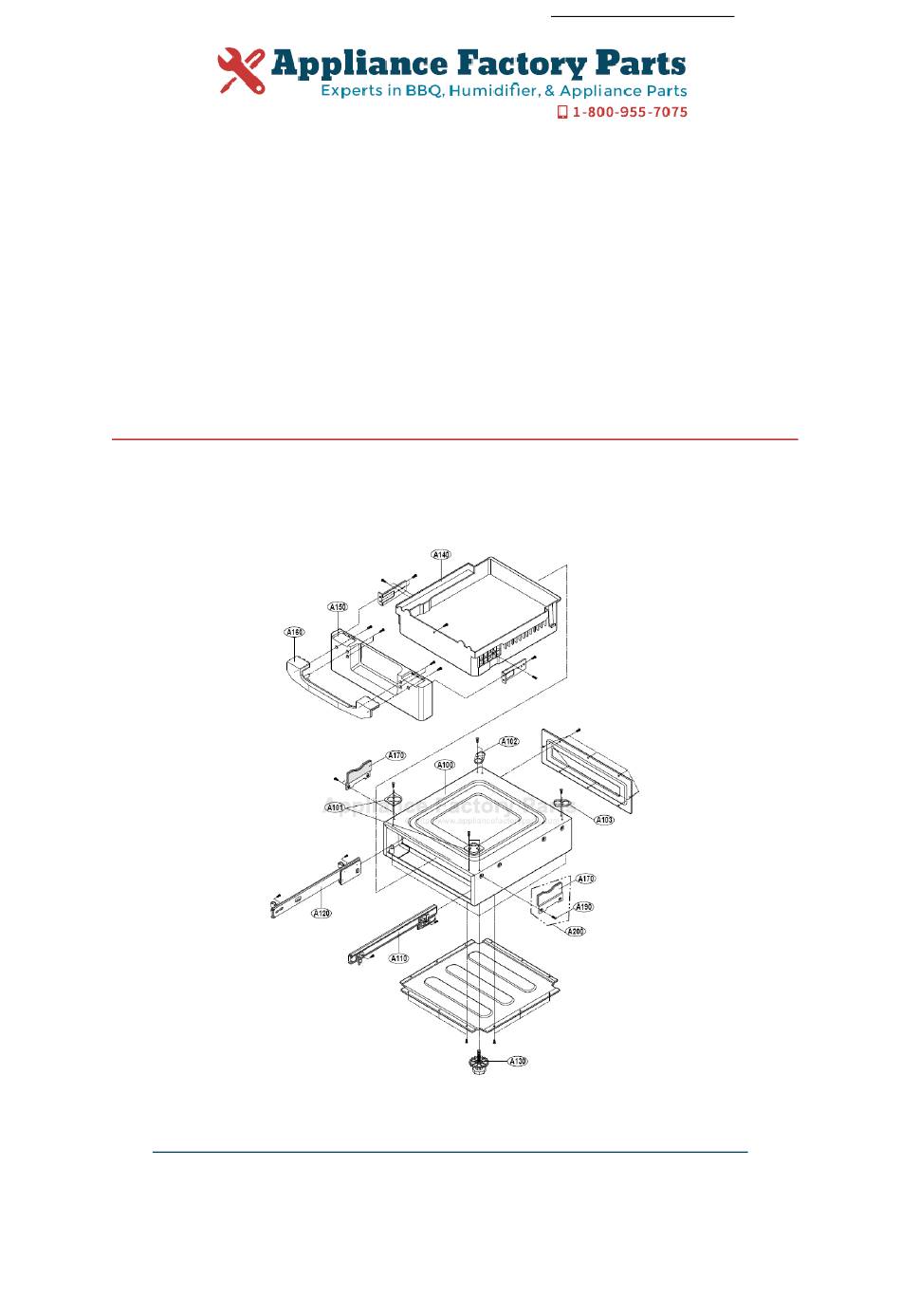

- Page 7 EXPLODED VIEW A140 A150 A160 A102 A170 A100 A101 A103 A170 A190 A120 A200 A110 A130...
- Page 8 APR. 2003 PRINTED IN KOREA P/NO:3828ER3018F...
