Features:

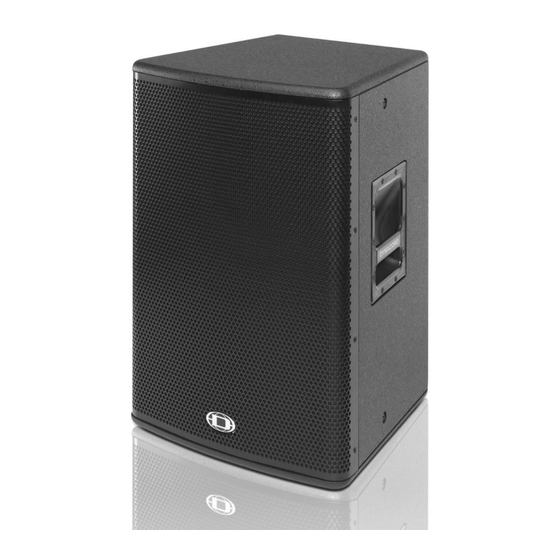

• Multi-Functional 2-Way Cabinet
• 500 W, 8 Ohms
• 90° x 50° Coverage Pattern
• 100 dB Sensitivity, 133 dB Maximum SPL
• Crossover with HF Protection
• SMX2151 LF Transducer
• DH3 Compression Driver
• Pole Mount for Tripod Use
• M8 Threaded Points
• Mounting Points to attach optional Mounting
Bracket
Wir weisen ausdrücklich darauf hin, dass bei
gehängten Lautsprecherboxen die einschlägigen
Sicherheitsbestimmungen zu beachten sind. Es
muss unbedingt qualifizierte Fachberatung in
Anspruch genommen werden!
We expressly point out that the relevant safety
regulations must be observed for "flying"
loudspeaker systems. It is imperative that quali-
fied expert advice is sought.
Technische Informationen
Engineering Data Sheet
C 15.2
15" / 1.25"
2-Way Fullrange Cabinet
Order No.
Cabinet
Configuration
Nominal impedance
Minimum Impedance
Rated Power RMS
Peak Power
Sound pressure level
SPL 1 W / 1 m
Max. SPL 1 m (calculated
with peak power)
Frequency Range (-10 dB)
Nominal Coverage Angle
(Horizontal x Vertical)
X-Over Frequency
LF Transducer
HF Transducer
DH3, 1.25'' (32mm) Diaphragm Compres-
Connectors
Dimensions (W x H x D)
Net Weight
Shipping Weight
Enclosure material
Grille
Steel, Black Finish with Acoustic Gauze
Suspension
3x M8 threaded Points - 1x on Each Side and
Warranty
DC-MBC15-UMH
TMA Tilt Angle for UMH
RMA Rotatable Mounting kit
TC-02 Truss clamp
EBK-M8 Eye Bolt Kit
Spare Parts
LF Transducer
HF Transducer
C 15.2
F01U165092
Fullrange
Passive 2-Way
8 Ohms
5.3 Ohms
500 W
2000 W
100 dB
133 dB
57 Hz to 20 kHz
90° x 50°
1550 Hz
SMX2151, 15'' (381 mm) Driver
sion Driver
2x Neutrik Speakon NL4
Full-Range 1+ / 1-
Wired through 2+ / 2-
445 mm x 660 mm x 445 mm
(17.5" x 26.0" x 17.5")
28.3 kg (62.4 lbs)
31.8 kg (70.1 lbs)
MDF with D-PUR PLUS
1x on the Rear of Enclosure
5 years
F01U169671
F01U118977
F01U118976
F01U100657
F01U166797
F01U134309
F01U103119
