PCB Piezotronics 3700 Series Installation And Operating Manual

Triaxial mems dc accelerometer, 10 mv/g, +/- 200g, +6 to 30 vdc excitation, integral cable
Hide thumbs Also See for 3700 Series:

Advertisement

Table of Contents

Model 3713B12200G
Triaxial MEMS DC accelerometer, 10 mV/g, +/- 200g, +6 to 30 VDC excitation, integral cable
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3700 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCB Piezotronics 3700 Series

Summary of Contents for PCB Piezotronics 3700 Series

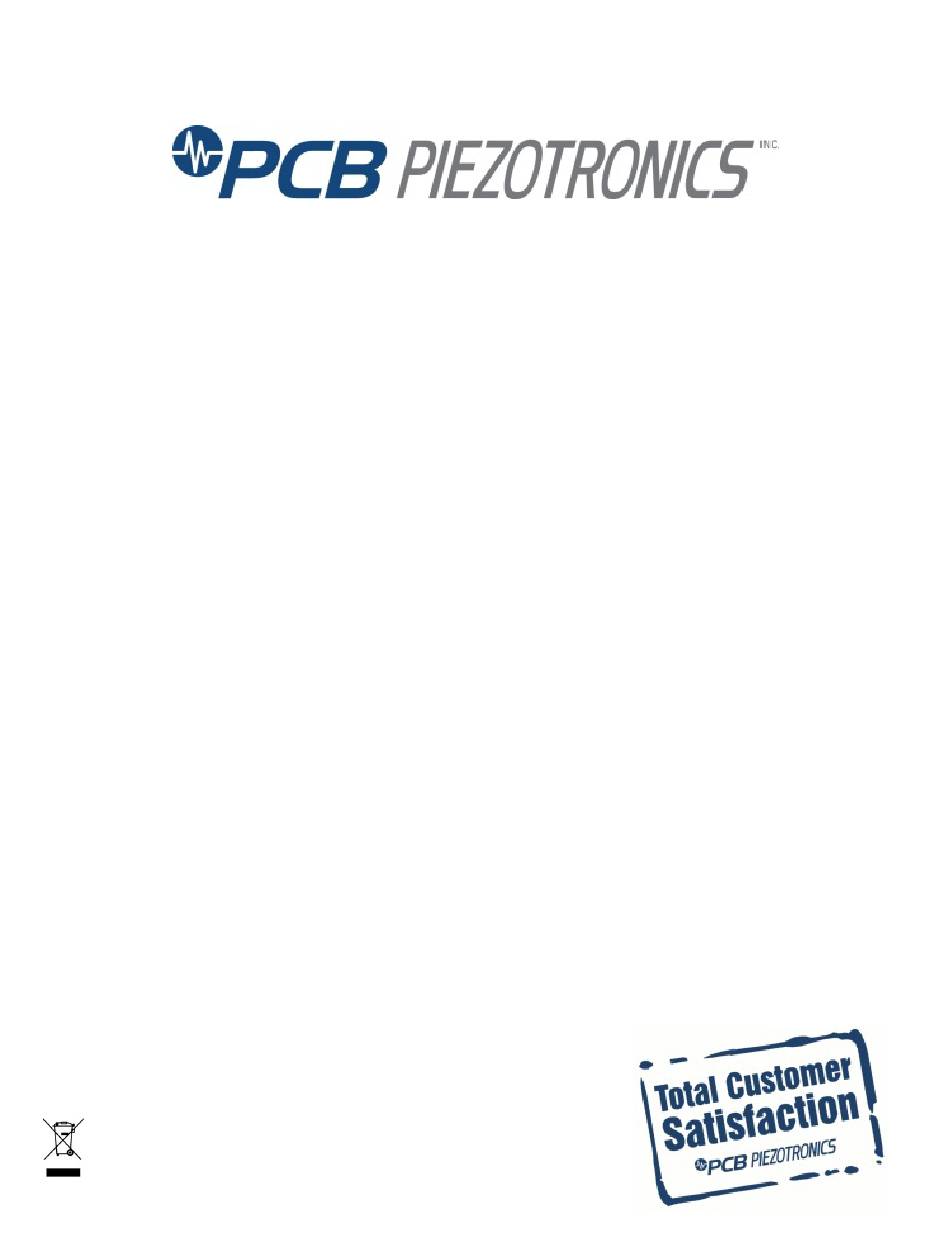

  • Page 1 Model 3713B12200G Triaxial MEMS DC accelerometer, 10 mV/g, +/- 200g, +6 to 30 VDC excitation, integral cable Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com...
