RT5BF01 RS485 Wireless Transponder Module Manual
Technical specifications：
Supply voltage: DC 8-25V (12V recommended)；
Working current：18-30MA；
Baud rate:9600/19200/38400/115200 default 9600, N, 8, 1；
Wireless operating frequency: 426MHz~508.5MHz, 16 channels, channel spacing 5.5MHz, default
426MHz；
Transmit power:20dBm;
Receiving sensitivity: -121dBm.
Wireless transmission distance：800-1000m(unobstructed open space)
Communication interface：RS485；
By changing the 485 address, a maximum of 63 modules can be cascaded (if more than 16
modules are used, use an RS485 repeater)；
Size： 107 X 54 X 32MM；
Weight: 72g.
Advertisement
Summary of Contents for Eletechsup RT5BF01
- Page 1 RT5BF01 RS485 Wireless Transponder Module Manual Technical specifications： Supply voltage: DC 8-25V (12V recommended)； Working current：18-30MA； Baud rate:9600/19200/38400/115200 default 9600, N, 8, 1； Wireless operating frequency: 426MHz~508.5MHz, 16 channels, channel spacing 5.5MHz, default 426MHz； Transmit power:20dBm; Receiving sensitivity: -121dBm. Wireless transmission distance：800-1000m(unobstructed open space) Communication interface：RS485；...
-
Page 2: Product Overview

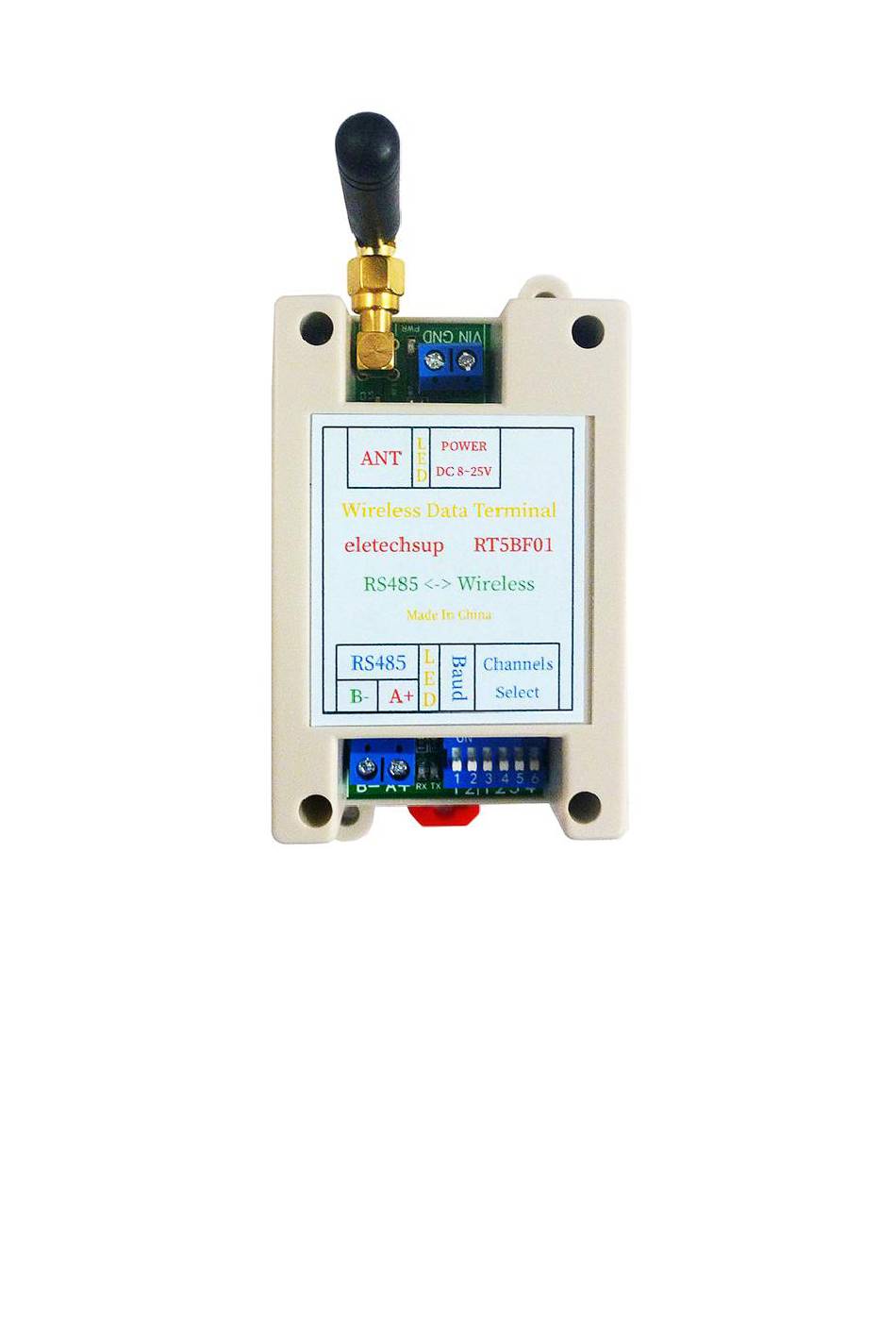

Product Overview： RT5BF01 wireless transmission module, based on the 433M frequency band development, can be RS485 received data signal into wireless signal, can be within a certain distance and the other end of the wireless transmission module for wireless communication, the other end of the wireless transmission module received wireless signal, and then converted into RS485 signal output. -
Page 3: Wiring Diagram
Frequency Band(Channel) selection table： Baud rate selection table： Wiring diagram： Control other RS485 devices as an RS485 wireless bus：... - Page 5 Directly control RS485 wireless relay(N4RFA04)：...
