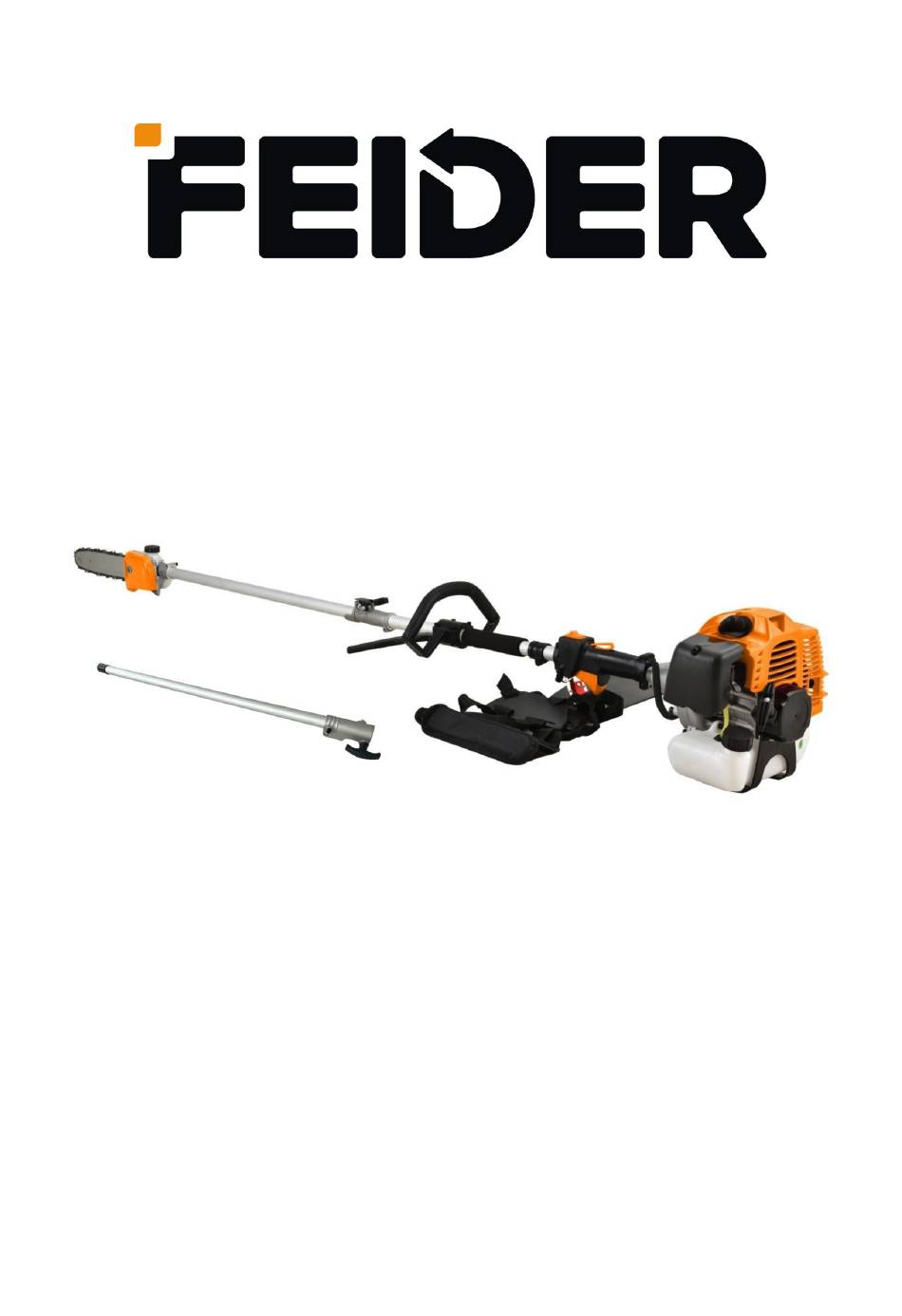

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL POLE PRUNING MACHINE FPS5230 INSTRUCTION MANUAL CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE............................3 2. SAFETY INSTRUCTIONS........................3 3. YOUR PRODUCT........................... 8 4. ASSEMBLY............................. 9 5. FUEL TANK............................11 6. UTILISATION............................12 7. CARE AND MAINTENANCE......................14 8. TRANSPORT AND STORAGE......................16 9. TECHNIQUE INFORMATION......................16 10. TROUBLESHOOTING........................17 11. DECLARATION OF CONFORMITY....................18 12. -
Page 3: Intended Use
1. INTENDED USE The pole pruner is exclusively intended for pruning trees and/or cutting small wood from the ground. Any other use is considered improper and will damage the tool. The correct use also includes reading and observing the instructions for use at each use as well as observing the warnings fixed on the machine. - Page 4 people from accessing the machine. As you stand in the work area, be aware of the presence of children. Observe local or regional safety precautions in your area. This also applies to all provisions relating to safety at the workplace and to health prevention in the workplace. Bystanders must be kept at a safe distance from the machine during operation.
- Page 5 15. Be alert to damaged components. Check the machine before using it. Are any components damaged? When you detect minor damage to the machine, ask yourself seriously whether the machine can still be used properly and safely. Ensure that the orientation and adjustment of the moving components are correct.
- Page 6 resulting from such unauthorized use. The manufacturer's warranty is void if the machine it has been designed has been transformed or used in an unauthorized manner and such situation results in damage. Warning! Even if the machine is used professionally, it is impossible to completely eliminate some residual risk.
- Page 7 Cables and filaments can be caught by the cutting blade or the filament Remove all foreign Hanging reel, which can damage the machine objects from the area you and cause injury. Remove all foreign want to mow before Danger objects from the area you want to mow starting work.
-
Page 8: Your Product
Sliding, On uneven floors, Be sure to always be on your stumbling damage can be caused by support and wear non-slip shoes and falling stumbling Disposal / Recycling Disposal instructions are indicated in the form of pictograms attached to the machine or packaging. The meaning of the various symbols is given in the chapter "Symbols attached to the machine". -
Page 9: Assembly
Mounting tube (extension Assembly tools (wrenches 11 Fuel tank tube and cutting head) and screwdrivers) Device for installing the Pruner 12 Exhaust pipe shoulder strap Engine Strap 13 Choke control Bottle for the oil mixture handle 14 Starter Protection of the blade Power Switch 15 Tank cap Pole mounted pruner... - Page 10 Tube installation Loosen the clamping knob Connect the cutting blade to the machine tube (Make sure the lock is securely engaged in the mounting hole. Tighten the knob. Make sure the connection is secure. If need to use the additional extension tube, and the additional tube first as explained above, then install the pruner on the extension tube.
-
Page 11: Filling Tank
Installation of the harness Install the harness latch into its dedicated device, located on the toolbar. The shoulder strap is equipped with an emergency release mechanism. To detach the machine from the shoulder strap in emergency situations, follow the instructions described below. WARNING! Check the emergency release mechanism BEFORE operating the machine. -
Page 12: Utilisation
in the absence of accessories or a catalyst during combustion. These motors are designed for use with unleaded gasoline. Always use gasoline with a minimum octane rating of 90RON. Using gasoline with a lower octane rating may cause an increase in engine temperature, causing problems with the engine, including seizure. - Page 13 3. Press the priming bulb 5 to 8 times until fuel flows through the clear hose. 4. Position the choke in the closed position. 5. Set the STOP switch to position "I". Make sure the cutting head is clear. Store the machine on a level, solid floor.
-
Page 14: Care And Maintenance
Use of the pole pruner Never use the tool at an angle of more than 60 °. The correct operation of the pruner is not impaired at angles greater than 60 °, but the risk of injury increases due to sudden drops of branches. - Page 15 To reduce the risk of fire, remove grease, from the engine, muffler and fuel compartment. Replace worn or damaged components. When the fuel tank is to be emptied, do so outdoors. Do not attempt to repair the machine unless authorized to do so. Use only spare parts and accessories recommended by the manufacturer.
-
Page 16: Transport And Storage
Store the machine in a dry place. The pruning machine must be properly packaged to prevent cuts. Use the baffles on cutting accessories with a metal knife. 9. TECHNICAL INFORMATION Model FPS5230 Type of engine 1E44F-5 (air cooled 2-stroke petrol engine) Engine speed Max. 9500 min-¹... -
Page 17: Troubleshooting
Machine mass (without fuel, cutting 7.5 kg attachment and harness) Cutting length 29.5 cm Chain pitch 9.525mm Chain gauge 1.27mm Sprocket (number of teeth x pitch) 7 Teeth x 9,525mm Guide bar: Zhonglin ZLA12-44-507P Cutting attachment Chain: HAOYU JL9D-3*44 Carburettor. MR15A2-11/HL;... -
Page 18: Declaration Of Conformity
4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANC Declare that the tool: PETROL POLE PRUNING MACHINE Ref：FPS5230 Serial number: 20250612057-20250612256 Is in conformity with the Directive Machine 2006/42/EC and the national regulation transposing it Also in conformity with the following European regulation:... -
Page 19: Warranty
1 2 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 20: Product Failure
1 3 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 21: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 22 SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Made in PRC...
