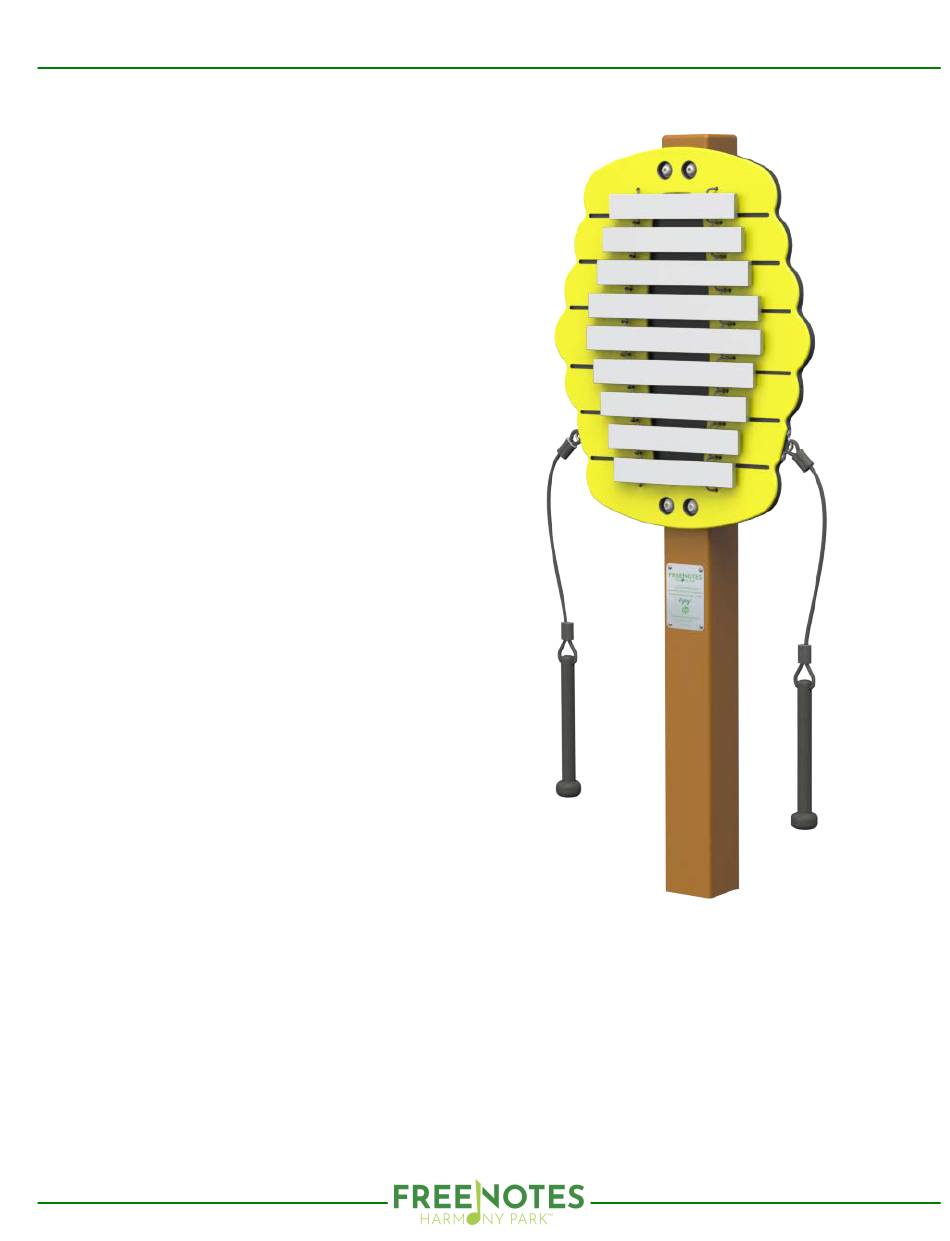

Harmony Hive
Installation Guide
CONTENTS
SHEET 1: BASIC INFO
SHEET 2: BILL OF MATERIALS
SHEET 3: ATTACHMENT TO POST
SHEET 4: FREESTANDING, IN GROUND MOUNT
SHEET 5: FREESTANDING, SURFACE MOUNT
SHEET 6: FREESTANDING, PORTABLE MOUNT
SHEET 7: WALL MOUNT, CONCRETE AND BRICK
SHEET 8: WALL MOUNT, WOODEN FENCE
SHEET 9: WALL MOUNT, CHAIN LINK FENCE
INSTRUMENT INFO
SCALE: C MAJOR DIATONIC
NOTES: (TOP TO BOTTOM) B,G,E,C,A,D,F,A,C
RANGE: ALTO/ SOPRANO
BARS: ANODIZED ALUMINUM
FRAME: HDPE
POST: HDPE
SPACERS: LDPE
HARDWARE: STAINLESS STEEL
MALLETS: MA-80BLK-22
www.freenotesharmonypark.com
Revised 10/17/2024
833.262.1569
Sheet 1OF9
Advertisement
Summary of Contents for Freenotes Harmony Park Harmony Hive HIVE-IG
- Page 1 Harmony Hive Installation Guide CONTENTS SHEET 1: BASIC INFO SHEET 2: BILL OF MATERIALS SHEET 3: ATTACHMENT TO POST SHEET 4: FREESTANDING, IN GROUND MOUNT SHEET 5: FREESTANDING, SURFACE MOUNT SHEET 6: FREESTANDING, PORTABLE MOUNT SHEET 7: WALL MOUNT, CONCRETE AND BRICK SHEET 8: WALL MOUNT, WOODEN FENCE SHEET 9: WALL MOUNT, CHAIN LINK FENCE INSTRUMENT INFO...
-
Page 2: Wall Mount
Harmony Hive Installation Guide FREESTANDING ITEM NO. DESCRIPTION HIVE-IG HIVE-SM HIVE-PM BEEHIVE-FREESTANDING INSTRUMENT 3/8" -16 BARREL NUT TORX PIN 302 STAINLESS SS LOCK WASHER FOR 3/8" BOLTS 0.406" ID 0.812" OD 18-8 SS SAE WASHER BEEHIVE-POST-SIGN-IN GROUND MOUNT BOLT - 3/8"-16 X 3-3/4" SECURITY TORX WITH PATCH 3/8"-16 WEDGE EXPANSION ANCHOR, 5"LG. - Page 3 Harmony Hive Installation Guide (FREESTANDING ONLY) USING THE IMPACT DRIVER, T45 TAMPER RESISTANT TORX BIT, AND T45 TAMPER RESISTANT TORX L-KEY, FASTEN THE INSTRUMENT TO THE POST USING THE 3/8" FLAT WASHERS, 3/8" LOCK WASHERS, AND 3/8", 3-3/4" LONG TAMPER RESISTANT TORX BOLTS.
-
Page 4: In Ground Installation
Harmony Hive In Ground Installation 1. Attach the instrument pre-assembly to the in-ground post extension by aligning the holes on each component and fastening them together with (3) 3/8" Hex Head Screws and (3) 3/8"-16 hex nuts. 2. Excavate one 10" diameter hole, 36" deep, at the installation location. 3. -
Page 5: Surface Mount Installation
Harmony Hive Surface Mount Installation 1. Determine installation location. Verify concrete pad is a minimum of 24" long x 24" wide x 6" thick. If the concrete pad is at an angle, steel washers are required to act as shims (shims not provided). If there is not already an existing pad, approximately (4) 80lb. - Page 6 Harmony Hive Portable Mount Installation 1. With two people, have one situate the instrument onto the portable stand and align the holes. 2. Have the second person secure the instrument to the portable stand with the provided 3/8"-16 thumb screws. Thumb screws should be tightened snuggly to prevent any raddling during play.
- Page 7 Harmony Hive Brick and Concrete Mount 1. With two people have one hold the instrument in the desired mounting location and have the other mark hole locations with a marker. For users ages 2-5 years, mount the instrument (center) 32" above finish grade. For users ages 5-12 years, mount the instrument 45"...
- Page 8 Harmony Hive Wooden Fence Mount 1. With two people have one hold the instrument in the desired mounting location and have the other mark the (6) mounting hole locations with a marker. For users ages 2-5 years, mount the instrument 32" above finish grade. For users ages 2-5 years, mount the instrument (center) 32"...
- Page 9 Harmony Hive Chain Link Fence Mount 1. With two people have one hold the instrument in the desired mounting location. For users ages 2-5 years, mount the instrument 32" above finish grade. For users ages 5-12 years, mount the instrument 45" above finish grade. For Adults, mount the instrument 52"...
