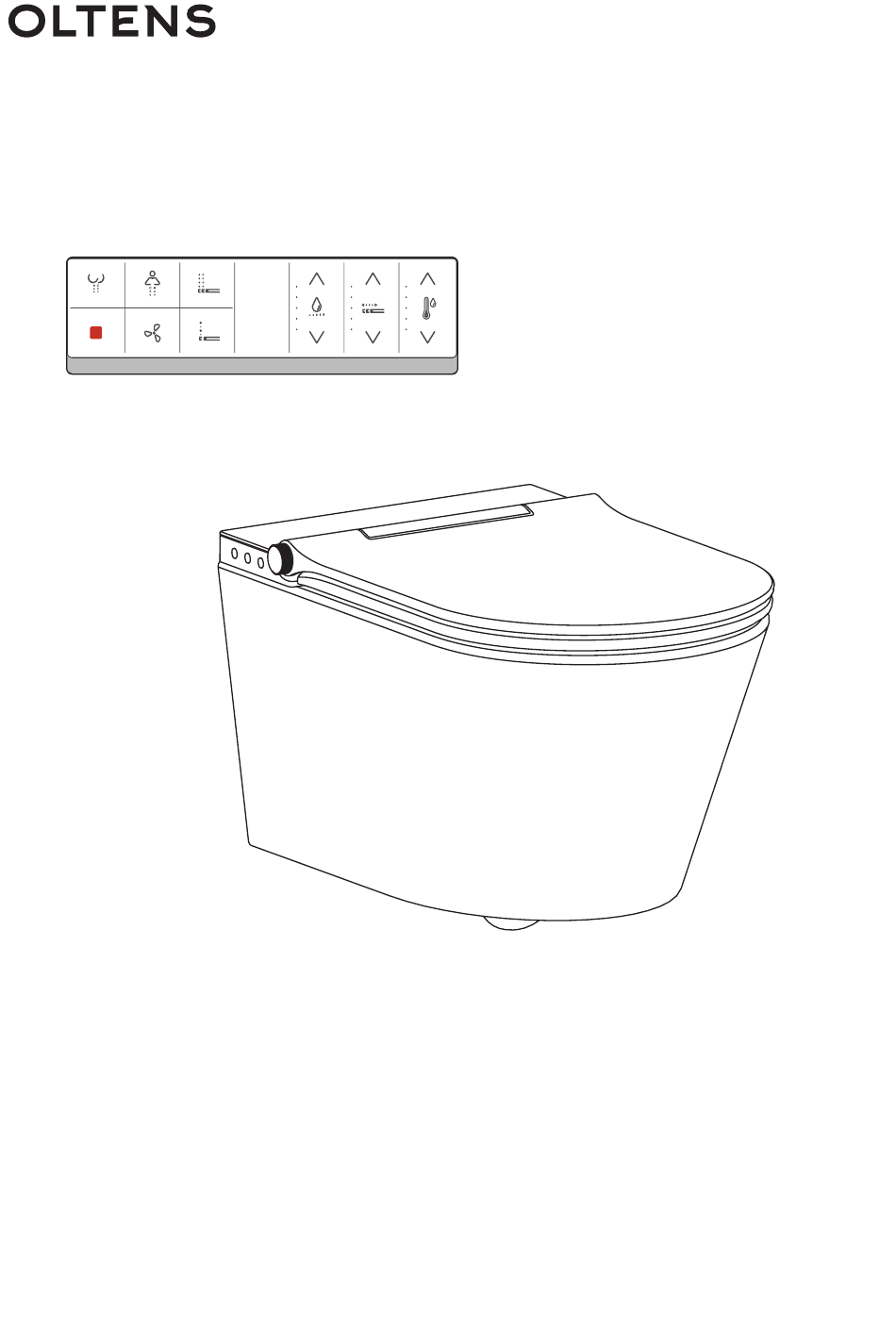

Smart Frisk - instruction manual

Refers to ME4010

Thank you for purchasing this smart toilet, please use it carefully

after reading this manual.

Table of Contents

Need help?

Do you have a question about the Smart Frisk ME4010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Oltens Smart Frisk ME4010

Page 1 Smart Frisk - instruction manual Refers to ME4010 Thank you for purchasing this smart toilet, please use it carefully after reading this manual.
Page 2: Table Of Contents
Table of contents Chapter 1 Safety notice Symbols and their meaning 1.2 Intended use 1.3 User requirements 1.4 Use only when the device is fully functional 1.5 Using the toilet seat 1.6 Using batteries 1.7 Other precautions Chapter 2 Product overview 2.1 Toilet body 2.2 Buttons on the front of the remote control 2.3 Buttons on the back of the remote control...
Page 3: Chapter 1 Safety Notice
Chapter 1 Safety notice In order to prevent harm and property damage to users or other individuals, please read the safety notice carefully and be sure to comply with it! 1.1 Symbols and their meaning Warning Ignoring this sign may result in serious injury or death. Note Ignoring this sign may result in bodily injury or property damage.
Page 4: Intended Use
To enjoy the benefits of the smart toilet seat, carefully read the instructions, especially the safety guidelines. Please keep this instruction manual in proper condition. If the product needs to be transferred to other users, please be sure to hand over this instruction manual. All instructions are in accordance with the technical state of the device at the time of printing.
Page 5: Using Batteries
For additional protection, it is recommended to install a residual current device (RCD) with a rated working current not exceeding 30 mA in the power supply circuit. Consult your installer for advice in this matter. Confirm that the grounding end of the power supply cable is 10 mm (3/8") longer than the live wire (L) and neutral wire (N).
Page 6: Other Precautions
People with disabilities and lack of experience or common sense (including children) should use the product under the supervision of a designated person. 1.7 Other precautions People with disabilities and those without experience or common sense This product must connect the cold water supply (water (including children) should use the product under the supervision of a caregiver.
Page 7 In case of using the device in the bathroom, ensure that the power outlet is waterproof. If the solutions used are not waterproof, it may result in electric shock or fire. WARNING Do not immerse in water Use a splash guard and do not spray water or detergent on the body or power plug.
Page 8 Prohibited actions Do not bend or twist the water supply hose. This may cause water leakage. Prohibited actions Do not use the following cleaning agents: gasoline, benzene, paint thinner, disinfecting powder and nylon brush. This may damage the water supply hose or the entire device. Prohibited actions Do not turn on a radio receiver near the device.
Page 9 Do not touch with wet hands Do not plug in or unplug the power supply with wet hands. Otherwise, electric shock may occur. Prohibited actions Do not unplug the power cord by pulling on the power cable, or damage the plug/power cord in any other way. This may cause fire, short circuit, or electric shock.
Page 10 Unplug the device If the device will not be used for a long time, drain the water from the inlet hose and disconnect the power cord. This will prevent water contamination and skin infections. Prohibited actions Do not lean your back on the lid. This may damage the toilet seat lid and cause bodily injury.
Page 11 Prohibited actions Do not forcefully close the lid or lower the toilet seat. This may damage the product. Prohibited actions Do not urinate on the device body or nozzle. This could cause malfunctions or stains, either pink or brown in color. Prohibited exposure to high temperatures Do not place flammable materials or hot objects near the device, as this could cause a fire.
Page 12: Chapter 2 Product Overview
Chapter 2 Product overview 2.1 Toilet body Power Supply Rear wash Front wash Cover Buffer Safety notice drying/filtering air nozzle Knob Night light Seat Nozzle and sprayer Ceramic body of the bidet toilet seat.
Page 13: Buttons On The Front Of The Remote Control
2.2 Buttons on the front of the remote control ICON BUTTON ICON BUTTON Rear wash Water jet adjustment Front wash Stop Nozzle position adjustment Drying Mobile massage wash Water temperature adjustment Pulse massage...
Page 14: Buttons On The Back Of The Remote Control
2.3 Buttons on the back of the remote control Electronic Button panel Battery compartment Open the battery display compartment Electronic screen Button panel Battery solt Open the battery Electronic screen Button panel Battery solt Open the battery 2.4 Panel buttons 2.4 Key panel description 2.4 Key panel description Press...
Page 15: Functions On The Back Of The Remote Control
2.5 Functions on the back of the remote control LAYER 1 LAYER 2 LAYER 3 Tip: to return to the CLEANING previous menu, press THE NOZZLE ODOR CONTROL MANUAL CLEANING Odor absorber AND PRE-WETTING Option numbers displayed on the screen 1. ON AUTO FEATURES 2.
Page 16: Chapter 3 Instructions For Use
Chapter 3 Instructions for use 3.1 Preparing the device for use 1. Open the inlet valve and ensure that the current water supply is connected. Turn clockwise to open the valve 2. Code matching (device pairing) [On] [Off] Turn off the power using the switch located under the top cover, insert batteries into the remote control, then press and hold the “STOP”...
Page 17 3. Remote control batteries a. Press firmly on the indicated spot b. Insert two AAA batteries. on the back of the remote control to push it to the left and open the battery cover as shown above. c. After aligning the cutouts with d.
Page 18: Description Of Toilet Buttons
5. Adjustment of the adjustment knob code Press together Long press a. Press the "power" and "rear b. Press and hold the knob until wash" buttons simultaneously. a long beep from the host is heard, After releasing them, a long beep indicating that the code has been from the host indicates that successfully paired;...
Page 19: Using The Knob
3.3 Using the knob Rear wash Front wash Drying Stop Stop Stop Water jet Temperature Water jet adjustment of the air blow adjustment To activate the rear To activate the warm air To activate the front wash function, sit on the drying function, while wash function, while toilet and turn the knob...
Page 20: Using The Remote Control Buttons
3.4 Using the remote control buttons The smart toilet can be operated using the knob and the remote control. The knob allows control of the rear and front wash, drying, and turning these functions off. The remaining functions are controlled via the remote control, including settings that can also be adjusted with the remote. To activate a selected function, press the corresponding button on the remote.
Page 21 Pressing the "▲" button during rear To stop the "Rear wash" function, press wash in the "Water Temperature the "Stop" button or wait for 3 minutes, Adjustment" segment will after which it will automatically turn off. increase the water temperature. Pressing the "▼" button will decrease the water temperature.
Page 22 Pressing the "▲" button in the To stop the "front wash" function, press "Water Temperature Regulation" the "Stop" button or wait for 3 minutes, section during the front wash function after which it will automatically turn off. increases the water temperature; pressing the "▼"...
Page 23 MOBILE MASSAGE WASH In the case of the “Mobile massage wash”, the nozzle moves back and forth. Condition: the "rear wash" or "front wash" function must be active. After activating the "mobilw Pressing the "Mobile massage wash" massage wash" function, button again stops the function the nozzle moves back and forth.
Page 24 After activating the "pulse massage" Pressing the "Pulse massage" button the water spray has variable intensity. again stops the "pulse massage" and switches back to standard wash or front wash. Alternatively, you can wait for 3 minutes, after which the operation will automatically stop. NOZZLE POSITION ADJUSTMENT There are 5 levels of nozzle position adjustment.
Page 25: Water Temperature Adjustment
WATER JET ADJUSTMENT There are 5 levels of water jet adjustment. The default setting is level 3. Condition: the "rear wash" or "front wash" function must be active. back forward Pressing the "▲" button increases the water flow. With each press of the button, it increases by one level until the maximum level is reached.
Page 26: Setting The Descaling Reminder (On The Back Of The Remote Control)
3.5 Setting the descaling reminder (on the back of the remote control) Due to the varying hardness of water, limescale can accumulate over a long period of time. To check the local water quality, after installing this multifunctional device, use the "total hardness 3.5 Descaling reminder setting (the remote's back) test strip"...
Page 27: Chapter 4 Cleaning And Maintenance
Chapter 4 Cleaning and maintenance 4.1 Cleaning the toilet seat unit The toilet seat unit should be cleaned regularly or immediately after soiling. If dirt is not 4.1 Toilet seat unit cleaning cleaned regularly, it may become noticeable and difficult to remove. Before cleaning the device's surface, ensure the power supply is disconnected.
Page 28: Enabling And Disabling Pre-Wetting
3. Remove the spray head and clean 4. Reattach the cleaned spray it with a cloth, sponge, or brush head, press the "Stop" button on dampened with a neutral detergent. the front of the remote control, and the operation will be completed, and the nozzle will retract.
Page 29 Container with filter Container with filter 2. Remove the filter container. 1. Open the glass cover at the back of the device. Bottom of the filter container 3. Clean the bottom of the filter 4. Place the cleaned filter container container of dust and paper lint back into the recess and close with a toothbrush or another...
Page 30: Cleaning The Filter Unit
1. Remove the filter container 2. Open the filter container. located on the back of the toilet. Deodorant box Deodorant box 3. Place the container with the new 4. Close the glass cover. deodorant back into the recess of the device. 4.6 Cleaning the filter unit After some time of use, manual cleaning of the filtering unit is required.
Page 31: Descaling
4.7 Descaling Due to the varying hardness of water, scale may accumulate over time. However, every three months, the following descaling procedure should be carried out: Descaling Tip: The descaling indicator light on the glass panel flashes. Descaling reminder light Descaling: ON/OFF 2.
Page 32: Waste Disposal
5. During the descaling process, the status indicator light will flash. After 12 minutes, descaling will be completed, and the status indicator will light up normally. Note: The descaling solution must be purchased by the user. It is recommended to purchase descaling liquid used for coffee machines (this should only be used for descaling calcium scale and should not be used for any other purpose.
Page 33: Winter Maintenance
1. Turn off the power and unplug 2. Close the valve and shut off the device. the water supply to the system. 3. Disconnect the water supply hose from the water inlet valve and drain the water from the hose. 4. Water quality may vary depending on the location.
Page 34: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Tip: If the device malfunctions, first perform the following basic operation: Turn off the main power to the device, then turn it on again after at least 3 minutes. If the device still does not function properly after following the instructions below, contact the customer service center or the retailer.
Page 35 Symptom Possible cause Solution Batteries not inserted Insert batteries Batteries are depleted Replacement battery Remote control not working Incorrect battery polarity Insert batteries correctly Remote control is damaged Call Customer Service Hotline Do not attempt to disassemble, repair, or modify this device yourself. WARNING Doing so may result in electric shock, fire, or device malfunction.
Page 36 Symptom Possible cause Solution Turn the power off and back Device malfunction on after waiting for one Abnormal water spray or incorrect operation minute If the issue persists, contact customer service Increase intensity to level 2, 3, Spray intensity set to level 1 4, or 5 Nozzle blocked Clean the spout...
Page 37 Symptom Possible cause Solution Deodorization The effect of odor control Dust clogging Clean the deodorant box is not satisfactory Deodorization produces Clean the intake opening Dust clogging loud noise of the deodorant box In the following cases, contact a service center. After unplugging and reconnecting the power cord, the indicator light on the toilet body continues to blink.
Page 38: Chapter 6 Technical Specification
Chapter 6 Technical specification Model ME4010 Power 1200W Water supply connector G1/2XG1/2 Ball valve G1/2XG3/8 Electrical power supply AC 220~240 V 50/60 Hz Cord length 1.8 m Permissible water pressure range 0.07 ~ 0.75 MPa (0.7 ~ 7.5 bar) Inlet water temperature 4 ~ 30 °C Ambient temperature 4 ~ 40 °C...
