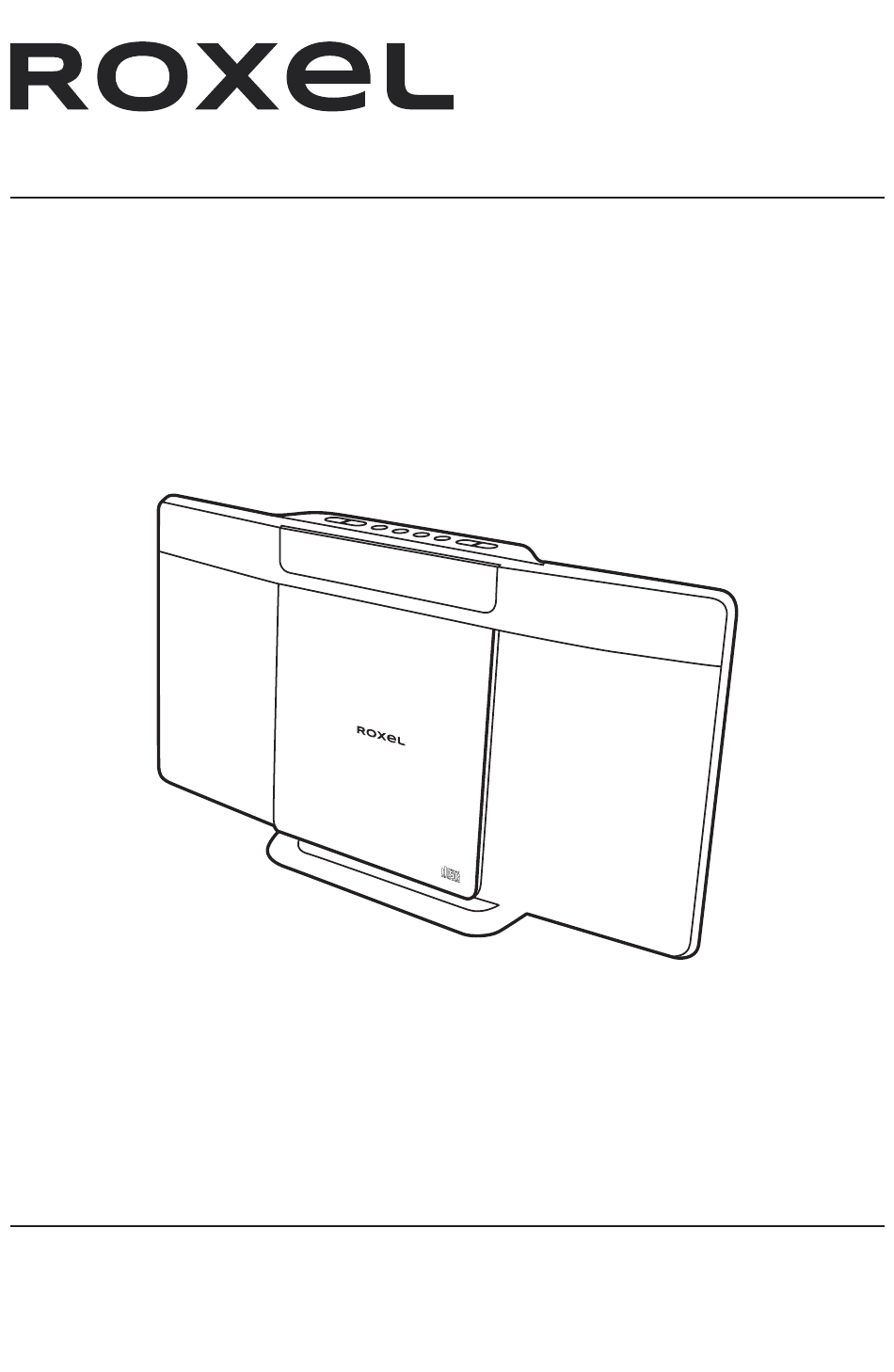

- Page 1 MODEL: RCD-200D User Manual All in one CD Player Please read these instructions carefully and retain for future reference...
-
Page 3: Table Of Contents
Contents Important Safety Instructions ....4 AUX Operation ........12 Safety ................4 Bluetooth Operation ......12 Standard Accessories ......6 Pair Bluetooth-enabled Devices Manually 12 Placement and Mounting ..... 7 USB Operation ........13 Identifying the Parts ......8 CD/MP3/WMA Operation ....13 Main Unit ...............8 Program .............. -
Page 4: Important Safety Instructions
Important Safety Instructions 10 Protect the power cord from being walked on CAUTION or pinched, particularly at plugs, convenience receptacles and at the point where they exit RISK OF ELECTRIC SHOCK DO NOT OPEN from the apparatus. 11 Only use attachments/accessories specified by CAUTION: TO REDUCE THE RISK OF ELECTRIC the manufacturer. - Page 5 When moving this unit Warning When changing places of installation or • The battery (batteries or battery pack) shall not packing the unit for moving, be sure to be exposed to excessive heat such as sunshine, remove the disc and return the disc tray to its fire or the like.
-
Page 6: Standard Accessories
Standard Accessories PAIR FM ST/MONO INFO INTRO REPEAT SHUFFLE MENU ALBUM/PRESET /SCAN BASS TIMER SLEEP DIMMER PROG CLOCK Main Unit Remote Control User Manual AC Power Cable RCA to 3.5mm audio Cable • Power cord quantity and plug type vary by regions. •... -
Page 7: Placement And Mounting
Placement and Mounting Placement • You are suggested putting the unit with below options: Option - A Option - B Stand Mounting (if using option-B) Remove the screws from the main unit. Drill 2 parallel holes (Ø 3-8 mm each according to wall type) in the wall. -
Page 8: Identifying The Parts
Identifying the Parts Main Unit SCAN Switch the unit between ON and Standby mode. PAIR SOURCE Select the Input source. Open and close the disc compartment. /SCAN/PAIR Play/pause/resume playback. Confirm a selection. SCAN Scan for radio station. Press and hold to activate the pairing PAIR function in BLUETOOTH mode and disconnect the existing paired... -
Page 9: Remote Control
Remote Control PAIR Switch the unit between ON and Standby mode. FM ST/MONO INFO INTRO REPEAT SHUFFLE SOURCE buttons MENU ALBUM/PRESET Select the play function. /PAIR Select the BT mode. /SCAN Press and hold to activate the pairing function in BLUETOOTH mode and <... -
Page 10: Preparations
Preparations Do not heat or disassemble batteries. • Never throw them in fire or water. Do not carry or store batteries with other • Prepare the Remote Control metallic objects as this may cause the batteries to short-circuit, leak or explode. The provided Remote Never recharge a battery unless it is •... -
Page 11: Set The Clock
Set the Clock 3 Press the , buttons on the remote control to adjust the minute digits, and then press the TIMER/SLEEP button on the remote Clock Synchronization control to confirm, the tuner timer will flash on the display Tip: Host time synchronization by default RADIO. -
Page 12: Select Modes
The unit will show "PAIR" and prompt “Pairing“. Press the DIMMER button on the remote control 3 Select “RCD-200D” enter “0000” for the to select brightness level. password if necessary. The unit will voice “Paired” and will show “BT”. -
Page 13: Usb Operation
CD/MP3/WMA Operation If no other bluetooth device pairs with this player within two minutes, the player will recover its previous connection. 1 Press the SOURCE button on the unit The player will also be disconnected when repeatedly or press the CD/USB button on your device is moved beyond the operational the remote control to select the DISC source. -
Page 14: Program
Select Repeat/Random Play Options 3 To re-tune, press the /SCAN button on the remote control to perform a quick scan again. During play, press the REPEAT / SHUFFLE • button repeatedly to select a repeat/random Auto Scan option play mode. The selected mode will show on the display: The auto scan will search for the entire DAB Band III channels. -
Page 15: Dab Information Display
Note: Programme Type This describes the style or genre of the • If you want to change the programed files, press and hold the (stop) button to clear programme that is being broadcast. the current program files. Channel Number DAB digital radio can be broadcast on a wide DAB Information Display number of frequencies. -
Page 16: Presetting Stations Manually
Text The search may not stop at a station with a very weak signal. The broadcaster can include a message Manual Tuning that displays information about the current • Press the buttons repeatedly until programme. you find the station you want. Programme Type If reception is still poor, try to adjust the This describes the “Style”... -
Page 17: Troubleshooting
Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. Menu Description • Ensure the mains cable is connected securely at both ends. No power •... -
Page 18: Specifications
Specifications Power requirements 100-240V~ 50/60 Hz Power consumption 30W / <1W (Standby) Output power 5W x 2 500 mA Dimension (W x H x D) 375 x 205 x 110 mm FM: 87.5 - 108 MHz Frequency Band DAB: 174.928 MHz-239.2 MHz Speaker Impedance 2 Ω... - Page 20 2030xxxxx RCD-200D_IFU_V1_240821...
