SuperCELL® Model SC500-H-SM User's Information
Alarm
Button
Power
Menu
Button
Up 1
Message
Button
Messages
Button

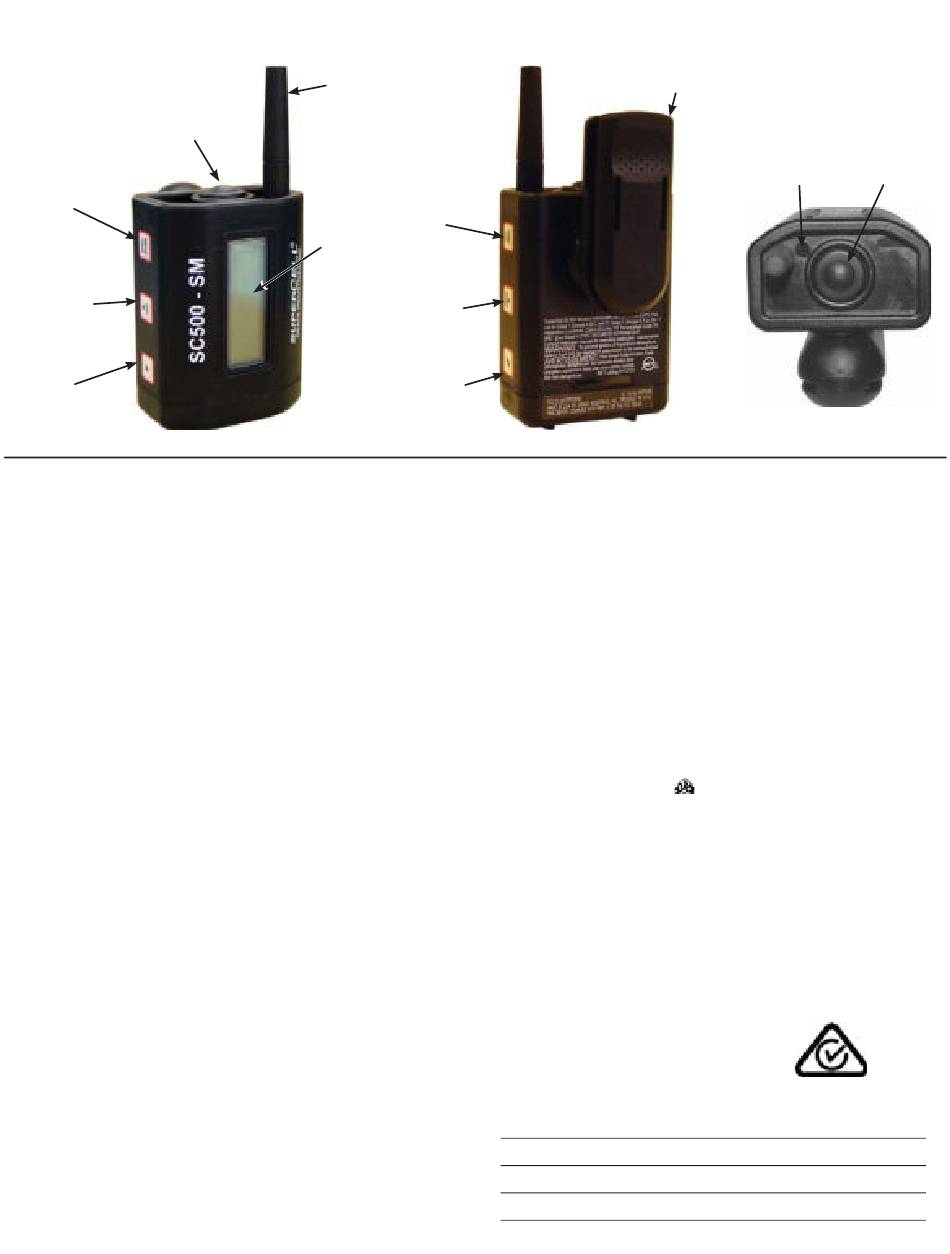

Front View
Introduction
SuperCELL® Model SC500-H-SM is an intrinsically safe,
high performance, RF-wireless, emergency signaling and
monitoring device which provides Man-Down monitoring
and notio cation for personnel working alone in hazardous
environments.
• Location: Tracking the location of the SuperCELL® is
possible when used in conjunction with the Grace Locator
Beacon and Grace-Watch® safety monitoring system.
• Alarm Monitoring: Alerts the Supervisor that a GRACE
Man-Down telemetry device, within signaling range, is
transmitting an alarm message.
• Panic ALARM: Manually activated Emergency Alarm.
• Man Down Alarm: An optional safety monitoring feature
which provides the Supervisor with motion sensing
protection.
• Alarm Acknowledgment: When a SuperCELL® is in an
alarm condition, an Alarm Acknowledgment message
can be sent from an MX900 transceiver. This will clear the
alarm condition and display the Alarm Ack message.
• Canned Text Messaging: Allows the Supervisor to send and
receive pre-set Canned Text Messages to other SuperCELL®
devices and Grace-Watch® monitoring systems.
Grace Industries, Inc.
Antenna
LCD
Display
Features
Power
Select
Button
Message
Button
Messages
Button
Back View
• Model: SC500-H-SM, Supervisor Model.
• Dimensions: 2-3/16" wide, 1-3/8" deep (without clip), 5"
high (with antenna).
• Weight: 5.6 oz.
• Internal Battery: 3.7 V nominal, 1960 mAh,
intrinsically safe, lithium-ion rechargeable.
• Device Run Time: Approximately 40 hrs. in Sensing Mode,
and 10 hrs. in Alarm Mode.
• Radio Frequency: ISM license free, spread spectrum.
• Battery Charger Operational Voltage: 120VAC or 12VDC.
Available international power adapters rated for 100-240VAC
input, with UL, FCC, CE,
• Battery Charge Time: 6 - 8 hrs.
• Certio cations:
• Intrinsically Safe UL913, CSA C22.2 No. 157
• IP67
• Radio Certio cations:
• FCC ID: J5XT3HEP
• IC: 5916A-T3HEP
• Australia / New Zealand: Compliant to ACMA AS/NZS
CISPR22:2006, Class A Digital Apparatus | AS/NZS 4268:2017
for Intentional Radiators
• EMC93142A-ACMA
• EMC93142A-AS/NZS 4268
1
Swi
Swivel Clip
Operation
Status LED
Specio cations
safety ratings.

Table of Contents

Alarm
Button
Top View
2
3
8
8
SC500-H-SM UI 2020-01
