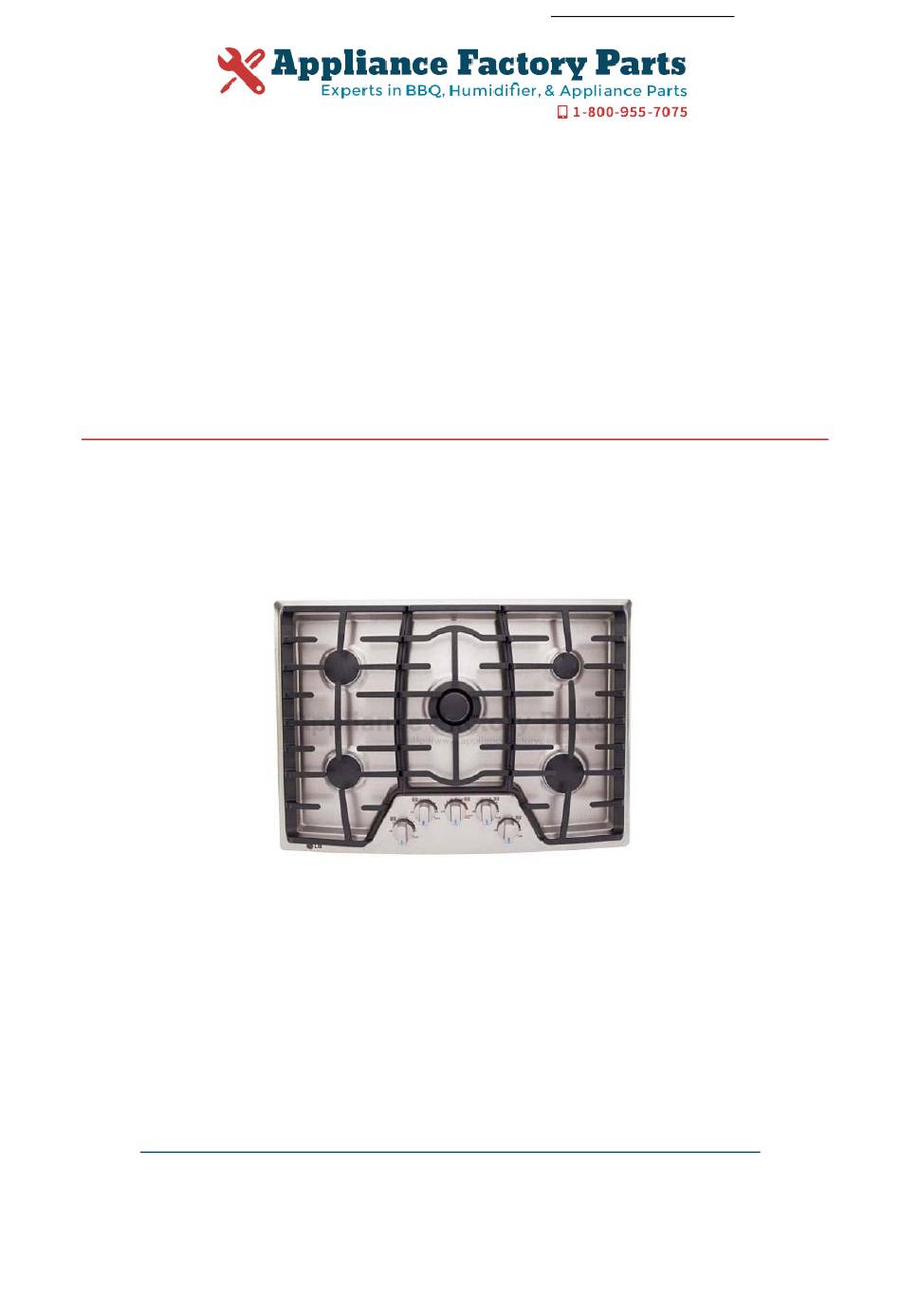

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG LCG3091ST Owner's Manual Shop genuine replacement parts for LG LCG3091ST Find Your LG Gas Range Parts - Select From 55 Models -------- Manual continues below --------...
-
Page 2: Gas Cooktop
GAS COOKTOP To contact LG Electronics, 24 hours a day, 7 days a week: 1-800-243-0000 (U.S.A.) INSTALLATION INSTRUCTIONS 1-888-542-2623 (Canada) Or visit us on the Web at: Please read this guide thoroughly us.lge.com (U.S.A.) before installation. ca.lge.com (Canada) BEFORE YOU BEGIN... -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLATION IN THE COMMONWEALTH OF MASSACHUSETTS • This product must be installed by a licensed • A flexible gas connector, when used, must not plumber or gas fitter. exceed 3 feet in length. • When using ball type gas shut-off valves, they shall be the T-handle type. -
Page 4: Installation Safety Instructions
INSTALLATION INSTRUCTIONS INSTALLATION SAFETY INSTRUCTIONS BEFORE YOU BEGIN Remove all tape and packing materials before using the cooktop. Dispose all plastic bags after unpacking the cooktop. Never allow children to play with packing materials. IMPORTANT SAFETY INSTRUCTIONS Read these instructions completely and carefully. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. - Page 5 INSTALLATION INSTRUCTIONS INSTALLATION SAFETY INSTRUCTIONS (continued) • The ventilating hood must be constructed of sheet • The vertical distance from the plane of the cooking metal not less than 0.0122” thick. Install above the surface to the bottom of adjacent overhead cabinets cooktop with a clearance of not less than 1/4”...
-
Page 6: Dimensions And Clearances
INSTALLATION INSTRUCTIONS DIMENSIONS AND CLEARANCES Provide enough clearances between the cooktop The cooktop may be placed with 2 3/4” clearance to and adjacent combustible surfaces. These dimensions the back wall. must be met for safe use of your cooktop. The location of the electrical outlet and pipe opening may be adjusted to meet specific requirements. -
Page 7: Installing The Cooktop Unit
INSTALLATION INSTRUCTIONS INSTALLING THE COOKTOP UNIT 1. LOCATE ELECTRICAL OUTLET INSTALL THE RETAINER BRACKETS AND GAS SHUT-OFF VALVE Install the retainer brackets to the bottom BENEATH CABINET of the cooktop unit. then snug the bolts against the bottom of the countertop as NEVER RE-USE shown OLD FLEX... -
Page 8: Provide Adequate Gas Supply
INSTALLATION INSTRUCTIONS 1. PROVIDE ADEQUATE GAS SUPPLY This cooktop is designed to operate at a pressure For LP gas, the pressure supplied must be between of 5” of water column on natural gas or 10” of water 10” and 13” of water column. column on LP, propan or butane gas. - Page 9 INSTALLATION INSTRUCTIONS FLEXIBLE CONNECTOR HOOKUP Pressure regulator Adapter Gas Flow into Range Flex connector (6 ft. max.) Adapter Installer: Inform the consumer of the shut-off 1/2” or 3/4” location of the gas valve Gas pipe shut-off valve.
-
Page 10: Electrical Connections
INSTALLATION INSTRUCTIONS 3. ELECTRICAL CONNECTIONS ELECTRICAL REQUIREMENTS 120 Volt, 60 Hertz, properly grounded dedicated The power cord of this appliance should be equipped circuit protected by a 15 A or 20 A circuit with a three-prong (grounding) plug which mates with breaker or time delay fuse. -
Page 11: Seal The Openings
INSTALLATION INSTRUCTIONS 3. ELECTRICAL CONNECTIONS (continued) The installation of appliances designed for mobile CAUTION home installation should conform with the Manufactured Home Construction and Safety Standard, Title 24 The customer should have the circuit checked by CFR, Part 3280 (formerly the Federal Standard for a qualified technician to make sure the receptacle Mobile Home Construction and Safety, Title 24, HUD, is correctly grounded. -
Page 12: Assemble The Surface Burners
INSTALLATION INSTRUCTIONS 5. ASSEMBLE THE SURFACE BURNERS Make sure the hole in the burner head is positioned CAUTION over the electrode. DO NOT operate the burners without all parts in place. Hole Place the burner caps and heads on the cooktop. Make sure that the caps and heads are placed in the Electrode correct locations. -
Page 13: Adjust The Surface Burner Low Flame (Simmer) Setting
INSTALLATION INSTRUCTIONS 7. ADJUST THE SURFACE BURNER LOW FLAME (SIMMER) SETTING For all surface burners except for the center 7. Position center burner head, center burner cap, center grate, center knob. burner 8. Connect power to appliance. 1. Light all surface burners except for the center 9. -
Page 14: Converting To Lp Gas
INSTALLATION INSTRUCTIONS WHEN ALL HOOKUPS ARE COMPLETE Make sure all controls are left in the off position. Make sure the flow of combustion and ventilation air to the cooktop is unobstructed. CONVERTING TO LP GAS (OR CONVERTING BACK TO NATURAL GAS FROM LP) This cooktop leaves the factory set for use with The conversion instructions and LP orifices are natural gas. - Page 15 Memo...
- Page 16 Printed In Korea Impreso en Korea Imprimé en Corée...
