ELECTRIC
QUICK START GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHIMANO STEPS MTB and is the answer not in the manual?

Questions and answers

Summary of Contents for Opus SHIMANO STEPS MTB

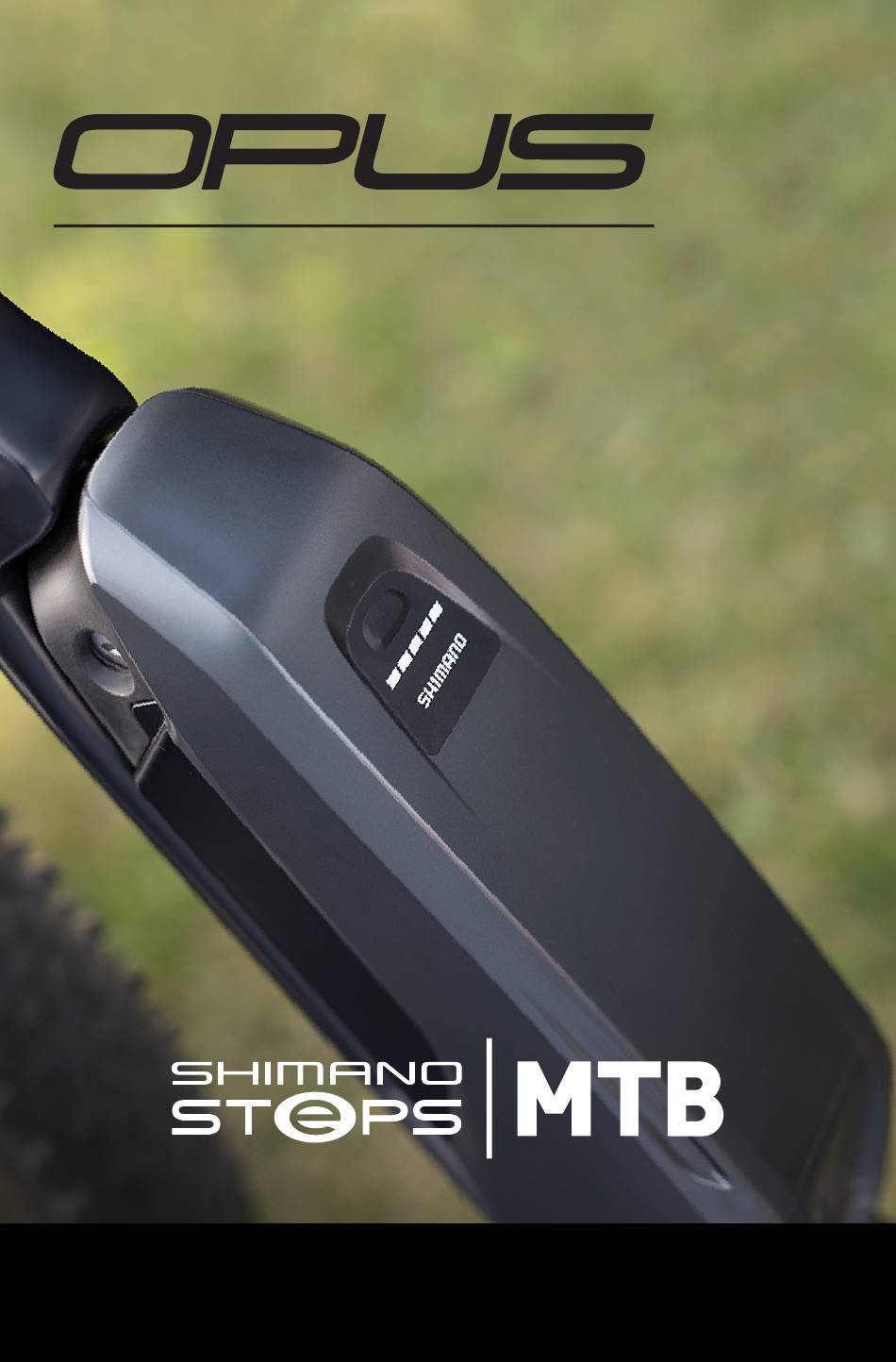

  • Page 1 ELECTRIC QUICK START GUIDE...
  • Page 2 SHIMANO STEPS MTB is for all you people - young, old and in between - who love to cycle and get outdoors, and put a premi- um on healthy living.
  • Page 3 CONNECTING / REMOVING THE BATTERY LOCK! CLICK! REMOVE BATTERY PRIOR TO BEFORE RIDING YOUR TRANSPORT AND STORE ELECTRIC BIKE, MAKE SURE SEPARATELY. THE BATTERY IS FIRMLY ATTACHED. CONNECTING To position in the holder, align the indentation from the bottom of the battery with the protrusion on the holder. Slide to the right until a clicking sound is heard.
  • Page 4 POWERING THE MOTOR ON /OFF DO NOT STEP ON THE PEDALS WHEN TURNING THE SYSTEM ON /OFF. Power on the system by pressing down the battery’s “POWER” button once. The indicator lights will turn on. Turn off the system by pressing down the battery’s “POWER” button once.
  • Page 5 CYCLE COMPUTER Speed Unit Display Battery Charge km/h Assist Mode Display BOOST Assist Gauge Display Button DISPLAY The cycle computer’s screen displays the status of the assisted bicycle as well as travel data. Change the displayed information by pressing the display button: •...
  • Page 6 SETTING THE SUPPORT MODE BOOST TRAIL Higher assistance WALK level (small trigger) Lower assistance level (big trigger) HOLD BIG TRIGGER 2 SECONDS FOR WALK MODE TO ENGAGE WHILE USING ANY ASSIST MODE. Set the support mode by using the assist switch. Choose one of the 5 modes by using the triggers.
  • Page 7 RANGE Based on field testing, the range in ECO can be up to 115km. The Range for Trail and Boost modes may vary. This is due to the “assistance sub modes”, that can be adjusted via Bluetooth/ANT+ connection, within each of the Main Modes (see graphic). Consult the “Range”...

  • Page 8: Charging The Battery

    CHARGING THE BATTERY WITH BATTERY ON OR OFF THE BIKE • Insert the battery charger’s power plug into an outlet. • Insert the charger plug into the battery mount’s charger connector. The LED on the charger will light up. CHARGE TIME 80% charge in 2 hours, 100% charge in 5 hours.
  • Page 9 CONTACT US HAVE ANY QUESTIONS? Contact us at info@opusbike.com or visit our website. OPUSBIKE.COM...
