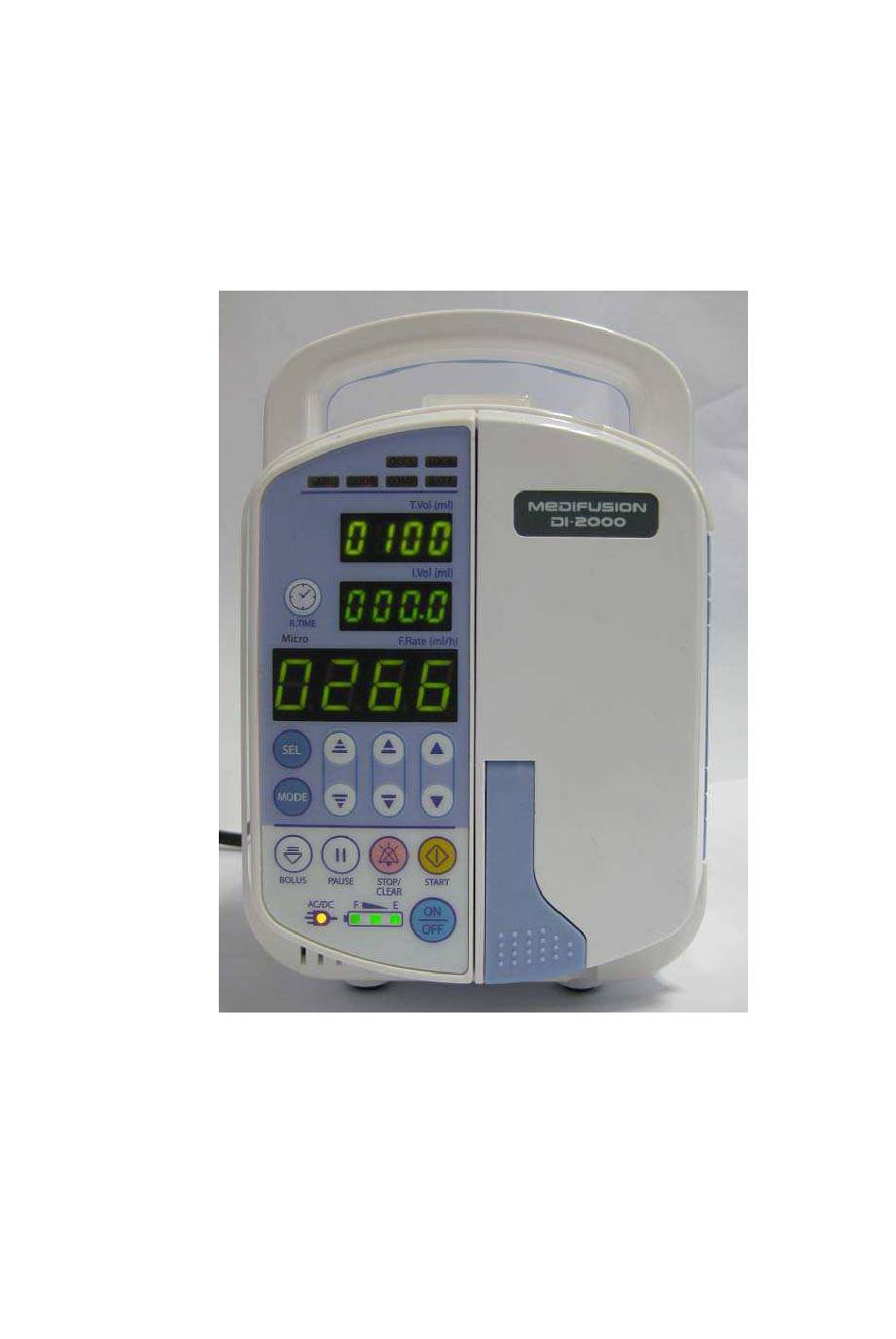

  • Page 1 Ⓡ MEDIFUSION DI-2000 Service Manual Read this manual carefully before using the pump to use the pump correctly and safely. Daiwha Corporation Ⓒ Copyright 2002, A Corporation, Ltd. All rights reserved.
  • Page 2 DAIWHA. ◎ Parts or circuits which are used for this equipment can be replaced to improve the safety and performance of this equipment. ◎ Contact DAIWHA if you have any questions regarding the equipment or the manual. Operation Address:...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction 2. Appearance and Functions 3. Inspection Procedures 4. Operating Mechanism 5. Electrical Wiring Inspection 6. Power Supply Inspection 7. Troubleshooting 8. Disassembly and Adjustment 9. Assembly and Exploded Views 10. PCB Layout 11. Schematic ※ DI-2000, DI-2200 Firmware Upgrade Guide...

  • Page 4: Introduction

    This manual provides technical descriptions on Medifusion DI-2000 Volumetric Infusion Pump for hospitals' medical equipment technicians or person authorized by Daiwha Corporation for maintenance of the equipment. For more details on how to use the equipment, see the user manual. 1.2 Product Overview Ⓡ...
  • Page 5 1.3 Technical Specifications Product Name Volumetric Infusion Pump DI-2000 Model Peristaltic Transit Finger Pumping Mechanism Micro(on): 0.1~99.9ml/h (0.1 ml/h Flow Rate 0.1 ~ 1200 ml/h step) 100~1200ml/h (1ml/h step) Micro(off): 1~1200ml/h (1ml/h step) ±5% ( Korea Vaccine CODE S203 Ⓣ type) Accuracy Measure every hour at room temperature (25 ℃) using water or saline solution (above 1.0 ml/h of flow rate).
  • Page 6 * Infusion Complete alarm (automatic switch-over to KVO feature) * AC/DC Power Shut-off alarm * Start Reminder alarm (after the pre-set pause) * Standby alarm (at a 2-minute interval when not infusing) * Near Complete alarm * The pump stops operating when alarms go off except for battery low, start reminder, and infusion completion signals.
  • Page 7 without a power supply, since a clock is installed. * Pause: Infusion resumes automatically after preset time elapses when the pause key is pressed and infusion is stopped (default 2 minutes, setting range from 1 minute to 24 hours in 1 minute units). * Event History: Saves up to 2,000 events.
  • Page 8 IEC 60227-5 300/500V 60227 KSIEC 53) USB, RS485 (optional) Communication...

  • Page 9: Appearance And Functions

    2. Appearance and Functions 2.1. Front Panel ① SEL key ⓐ Occlusion alarm LED ② MODE key ⓑ Key lock LED ③ Hundreds digit up key ⓒ Air (bubble) alarm LED ④ Hundreds digit down key ⓓ Door open alarm LED ⑤...
  • Page 10 2.2. Display Displays Functions ⓐ OCCL LED To be illuminated if the IV set is clogged. ⓑ LOCK LED To be illuminated if keys are locked (Key Lock). ⓒ AIR LED To be illuminated if air is flowed into the pump body. ⓓ...
  • Page 11 2.3. Keys Keys Functions Selects total volume, flow rate, and infusion time in ① SEL key ( infusion mode 1. Switches the mode among TIME, GTT, and DOSAGE ② MODE key ( in infusion mode 2 by long pressing the MODE key. ③...
  • Page 12 resume after the lapse of the pre-set time. (In order to resume infusion before the pre-set time has elapsed, press the STOP/CLEAR key. The pre-set time automatically passes and the pump will be switched to a normal state.) This key is used to stop drug infusion, BOLUS, and K.V.O.
  • Page 13 2.4. Inside the Door ① Air Detector – Prevents the patient from getting injected with air by detecting the air in the IV set. ② Auxiliary Door Lock – Used when opening the auxiliary door. ③ Pumping Unit – Infuses medical fluid by pressing the tube of the IV set.
  • Page 14 2.5. Rear Panel ① RS485 Port – Used when downloading History Log and communicating via RS485. ② Drop Sensor Port – The Drop Sensor is connected to this port. ③ Nurse Call Port – Connected to the Nurse Call equipment with a Nurse Call cable and warning signals are sent to the Nurse Call equipment if necessary during the infusion.

  • Page 15: Inspection Procedures

    3. Inspection Procedures In order to prevent sudden problems of Infusion Pump DI-2000 and ensure safe use, monthly inspections need to be carried out in accordance with the following procedures. 3.1. Power Supply Inspection 1) Connect the infusion pump to the external power. Make sure that the infusion set is not mounted and the door is closed.
  • Page 16 3.4. Accuracy Test 1) Turn on the power and mount the infusion set without air bubbles and clogging in the tube. 2) Set flow rate and total volume to 100 ml/h and 100 ml respectively. 3) Check whether the flow rate and the total volume are set to 100 ml/h and 100 ml respectively and make sure that the infused volume is 0 ml.
  • Page 17 3) Create air bubbles intentionally inside the tube and make them flow into the pump. 4) Check whether the air indicator blinks and alarm sounds when air bubbles reach the air sensor. The infusion indicator stops blinking, and the stop indicator is turned on. 5) Press the STOP key and check whether the alarm sound stops and the air indicator is still illuminated.
  • Page 18 all three battery level indicators will be turned on, and the AC/DC indicator will be turned on. 6) Plug in again and check whether the device is operated without problems. Repeat 3) and 4) above. 7) As the pump continues infusion, the battery level indicators will be turned off one after another and eventually the battery low alarm will sound.
  • Page 19 or cotton soaked with warm water. Do not use thinner, solvent, benzene, ammonium, or acetone. Also, do not disinfect the pump by autoclave or with EO (Ethylene Oxide) gas.
  • Page 20 3.12. User Mode Parameter Setting Value Factory Setting Value K001(Korea Vaccine T- Maker IVSET type), T001(Turkey IVSET), K001 expected to add DROP Set 15, 20, 60 Micro Set ON, OFF 1~1200 ml/h ( Resolution 0.1 Calibration Set 0.0 % ml/h ) Bolus Flow Rate(Purge) 1~100ml 700 ml/h...

  • Page 21: Operating Mechanism

    4. Operating Mechanism 4.1 Block Diagram 4.2. Power Supply The SMPS (Switching Mode Power Supply) changes AC phase current (100-240 VAC, 50/60 Hz) to DC current (24VDC, 1A) and charges the built-in battery. Through the regulator inside the main board, it generates 3.3 V for each electronic element and 5 V for the air sensor and displays.
  • Page 22 The inlet and the SMPS have a separate fuse (250V T3.15) to prevent sudden over- current. Also, the SMPS has a feature to prevent over-current and over-voltage. The main power supply is provided to each part by the SMPS as 24V/1A power and used to recharge the built-in battery.
  • Page 23 Motor control is composed of motor, motor driver, and motor checker. For precise control, uni-polar stepping motor was adopted and 1/16 micro step control is carried out through the motor driver for more precise control. A motor checker is attached to the pumping unit axis, which is sensed by the interrupt switch to check operation of the pumping unit (or motor) and to calculate infused amount.
  • Page 24 generated. If voltage declines to a level that the device cannot operate, the display is turned off and the motor stops. 4) Door open sensor When the door is opened, the distance between the magnet attached to the door and the hall sensor is widened and voltage drop is sensed, generating a warning sound.

  • Page 25: Electrical Wiring Inspection

    5. Electrical Wiring Inspection 5.1. SMPS 1) Check the wiring between Connector CN81 and the power inlet. 2) Check the wiring between Connector CN91 and Connector J5 of the main board. 5.2. Main board 1) Check the wiring between Connector J1 and Connector J1 of the checker. 2) Check the wiring between Connector J4 and EXT Power Switch.
  • Page 26 2) Check the wiring between Connector J4 and FFC (Flexible Flat Cable) of Connector J7 of the main board. 3) Check the wiring between Connector J6 and Connector J1 of the door. 4) Check the wiring between Connector J7 and Connector J1 of the air sensor. 5) Check the wiring between Connector J8 and speaker.

  • Page 27: Power Supply Inspection

    6. Power Supply Inspection 6.1. Main Board < Bottom of the main board> 1) TP8: Check the voltage of 24V. 2) TP31: Check the voltage of 5V 3) TP30: Check the voltage of 3.3V (VCC1). 4) TP35: Check the voltage of 3.3V (VCC2) (with front switch (SW14) on). 6.2.
  • Page 28 6.3. Air Sensor <Top of the air sensor board> 1) TP1: Check the voltage of 5V. 2) TX1: Check 2.2 Mhz frequency. 3) TP2: Check the voltage of 2V. 6.4. Alarm <Bottom of the alarm board> 1) Check J1's 1Pin VCC.
  • Page 29 6.5. Battery Gauge <Top of the battery gauge board> 1) TP2: Check the voltage of 3.3V. 2) TP3: Check the current battery voltage. 3) TP5: Check the voltage between 3.0V and 6.5V. 4) TP7: Check the voltage of HDQ 3.3V. 6.6.
  • Page 30 6.7. Door Sensor <Top of the door board> 1) TP1: Check the voltage of 3.3V . 2) TP2: Check output voltage (Close:0V, Open: 3.3V). 6.8. Occlusion Sensor <Bottom of the occlusion board> 1) TP1: Check the voltage of 3.3V. 2) TP2: Check output voltage (0.8V~2.0V). 3) TP3: Check temperature voltage (1.0V~2.0V (changes depending on temperature;...

  • Page 31: Troubleshooting Table

    7. Troubleshooting 7.1. Troubleshooting Table 7.1.1. Power supply and battery problems Table 1. Power & Battery Block Symptoms Causes Corrective Actions 1. Use phase power of 1. Phase power and power 100VAC-240VAC. line have problems. 2. Check power cord and 2.
  • Page 32 Table 1. Power & Battery Block Symptoms Causes Corrective Actions power. necessary. The battery level 1. Check problems with indicators are on but 1. The On/Off key has SW14 (D) and wrong the pump is not turned problems. components of AL1 and on by the on/off key 2.
  • Page 33 Table 1. Power & Battery Block Symptoms Causes Corrective Actions recharged. 2. The battery recharging 2.1. Check DQ Line (High). circuit has problems. 2.2. Check MCU 10-pin, 29- pin (High). 2.3. Replace the battery board. 1. The DC power jack has 1.
  • Page 34 Table 2. Display Block (Except AC/DC LED) Symptoms Causes Corrective Actions rate display show the problems. same number. 1. The flow rate display has Part of the digits of the 1. Check the display problems. flow rate display are (FND1). 2.
  • Page 35 Table 3. Keypad Block Symptoms Causes Corrective Actions problems. used. 3. Check keys with problems and replace them if necessary. 4. Replace the display board. 1.1. Check whether the sound Keys are working, but 1. The speaker or the speaker volume is too low.
  • Page 36 Table 4. Occlusion Sensor Symptoms Causes Corrective Actions infusion stops even when 2. The tube around the 3. Check the occlusion the tube is not clogged. occlusion device was circuit and replace if severely deformed because necessary. of the use of the infusion set for long periods of time.
  • Page 37 Table 5. Air Detector Block Symptoms Causes Corrective Actions problems. and replace if necessary. 1. The infusion set is not The air warning light is 1. Re-mount the infusion set. mounted properly. on when the tube is 2. Check the air sensor board 2.
  • Page 38 Table 6. Door Block Symptoms Causes Corrective Actions problems. 1. The door circuit has The door open warning 1. Check the door board and problems. light is on when the door replace if necessary. 2. The display circuit has is closed. 2.
  • Page 39 Table 8. Speaker Block Symptoms Causes Corrective Actions Speaker sound is not 1. The speaker has 1. Check the speaker and J8 generated (when a problems. connection on the display warning sound is 2. The speaker circuit has board. generated or keys are problems.
  • Page 40 Table 9. Others Symptoms Causes Corrective Actions assembly is not proper. 1. In case of purge infusion, air occlusion warning will Warning and alarm are not be generated. Also, not generated during infusion will continue even purge infusion. after infusion is completed once the purge key is pressed.

  • Page 41: Disassembly And Adjustment

    8. Disassembly and Adjustment Only some part of Infusion Pump DI-2000 can be disassembled and replaced. The warranty shall not apply to disassembly or repairs arbitrarily carried out. Reassembly can be conducted in the reverse order of disassembly. Disconnect the external power supply before disassembly, and leave the power switch off.
  • Page 42 2) Remove the bolt fixing the main PCB and separate PCB by removing the cable connected. 3) Be careful about organization of cables when reassembling. 8.4. Separation of Pumping Unit (See 9.6.) 1) Lift the hook of the finger cover to separate the finger case. 2) Make sure that the spring is mounted properly when reassembling.
  • Page 43 3) Remove the occlusion sensor assembly from the case front and separate the occlusion sensor PCB assembly. 8.8. Replacement of Door Sensor PCB Ass'y (See 9.8.) 1) Separate the case front from the base frame completely. 2) Remove the connector of the door sensor PCB assembly from the display PCB assembly.
  • Page 44 4) Reassemble in the reverse order of disassembly. After replacing SMPS, check the ground wire connection. 8.12. Replacement of Power Inlet (See 9.5.) 1) Separate the case front and case rear completely. 2) Remove the cable from SMPS. 3) Loosen the bolt to separate the power inlet. 4) Remove the cable from the inlet.

  • Page 45: Assembly And Exploded Views

    9. Assembly and Exploded Views 9.1. Clamp Module Quantity Quantity Title Title (ea/set) (ea/set) Rubber foot Clamp Handle Clamp Lever E-Ring (∅4) SUS Clamp Lever Stopper Clamp Spring Bolt (flat head M4X16L, Clamp Lever Stopper SUS) Clamp Latch Clamp Body Clamp Base Hinge Clamp Lever Shaft Clamp Base...
  • Page 46 9.2. Product Exploded View · Quantity Quantity Title Title (ea/set) (ea/set) Bolt (M3X8L, SEMS, Battery Cover P.W:∅6, SUS) Button Overlay Rubber O-ring...
  • Page 47 Case-Front second Ass'y ID name plate Case-Rear Ass'y Sponge...
  • Page 48 9.3. Case-Rear Exploded View Quantity Quantity Title Title (ea/set) (ea/set) Handle Cover Rear panel name plate Tapping Screw Rubber foot (M3X14L, type 2, SUS) Hole Cover-A Case-Rear Hole Cover-B...
  • Page 49 9.4. Case-Front First Exploded View Quantity Quantity Title Title (ea/set) (ea/set) Bolt (M3X8L, SEMS, Battery Pack P.W:∅6, Ni-plated) Bolt (flat head M4X16L, Door Ass'y SUS) Door Latch Bolt(M3X16L, SEMS,...
  • Page 50 P.W:∅6, SUS) Sub Door Locker Pin Pumping unit Ass'y Locker Plate Spring Door Hinge Spring Bolt(M3X20L, SEMS, Case-Front First Ass'y P.W:∅6, SUS) Base Frame Ass'y Sub Door Locker 9.5. Base Frame Exploded View...
  • Page 51 Quantity Quantity Title Title (ea/set) (ea/set) Tapping Screw (M3X6L, Pulley-A Type 2, Ni-plated) Tapping Screw (M3X10L, Type 2, Ni- Power Switch plated) Bolt (M3X8L, SEMS, Power Switch Cap P.W:∅6, Ni-plated) Motor SMPS Insulated Sheet Tapping Screw (M3X8L, SMPS Type 2, Ni-plated) Bolt (Flat Head Main PCB Ass'y M3X8L, SUS)
  • Page 52 9.6. Pumping unit Exploded View Quantity Quantity Title Title (ea/set) (ea/set) Pumping unit Finger Pumping unit Finger Cover Case Pumping unit Finger Pumping unit Finger Spring...
  • Page 53 9.7. Door Exploded View Quantity Quantity Title Title (ea/set) (ea/set) Bolt (M3X8L, SEMS, Door Hinge P.W:∅6, SUS) Magnet (∅4X5L) Presser Block Door Cover Sub Door Stopper...
  • Page 54 Quantity Quantity Title Title (ea/set) (ea/set) Spring Door Handle Pin Presser Block Spring Door Base Sub Door Door Upper Seal Door Pin Sub Door Stopper Occl. Block Plate Washer (Bore 3.2 Door Handle Outside Diameter 7) Tapping Screw (M2.6X4L, Type 2, Ni- plated)
  • Page 55 9.8. Case-Front Second Exploded View Quantity Quantity Title Title (ea/set) (ea/set) Case-Front Occl. Case Alarm Lamp Lens Occl. PCB Ass'y Alarm Lamp PCB Ass'y Occl. Finger Plate Washer (Bore 3.2 Occl. Cover Outside Diameter 8)
  • Page 56 Quantity Quantity Title Title (ea/set) (ea/set) Bolt(M3X8L, SEMS, Tapping Screw (M3X6L, P.W:∅6, SUS) Type 2, Ni-plated) Air Sensor Ass'y Magnet (∅4X5L) Tapping Screw (M3X10L, Type 2, Ni- Occl. Finger Spring plated) Display PCB Ass'y Speaker Bolt(M3X8L, SEMS, Sponge P.W:∅6, Ni-plated) Door Sensor PCB Ass'y...

  • Page 57: Pcb Layout

    10. PCB Layout 10.1 Main PCB <Top> <Bottom>...
  • Page 58 10.2 Display PCB <Top> <Bottom>...
  • Page 59 10.3 Air PCB <Top> <Bottom> 10.4 Alarm PCB <Top> <Bottom> 10.5 Battery PCB <Top> <Bottom>...
  • Page 60 10.6 Checker PCB <Top> <Bottom> 10.7 Door PCB <Top> <Bottom> 10.8 Occl PCB <Top> <Bottom>...

  • Page 61: Schematic

    11. Schematic Contact Daiwha Corporation Tel: +82-2-558-1711 Fax: +82-2-558-1745 e-mail: daiwha@daiwha.com Daiwha B/D, 733-18 Yeoksam-dong, Gangnam-gu, Seoul, Korea...

  • Page 62: Di-2000, Di-2200 Firmware Upgrade Guide

    DI-2000, DI-2200 Firmware Upgrade Guide Daiwha,. co. ltd...
  • Page 63 TABLE OF CONTENTS 1. Setup Procedure 1.1 Setup Procedure 1.2 PC Setup 1.3 USBto Serial Adapter Drivers Installation 1.3.1 Installing CDM Drivers 2. Firmware Upgrade 2.1 Firmware Upgrade...

  • Page 64: Setup Procedure

    “MegaLoad”; 4. (While you are at it, create another subdirectory called “Daiwha DI2000 or DI2200 Docs” for manuals, etc); 4. (While you are at it, create another subdirectory called “Daiwha DI2000 or DI2200 Docs” for manuals, etc);...
  • Page 65 If they ARE found, the installer proceeds automatically to the “MegaLoad Setup Wizard” described in the next main paragraph (Para 9 below). a. If NOT, you will be prompted with a small window with text starting: “This setup requires the .NET framework …”...
  • Page 66 Internet. This can be done by either removing the network cable from your PC or by disabling your network card by going to the "Control Panel\Network and Dial-Up Connections", right-clicking on the appropriate connection and selecting "Disable" from the menu. The connection can be re-enabled after the installation is complete.
  • Page 67 Figure 1.3 -Select "Search for the best driver in these locations" and enter the file path in the combo-box ("C:\CDM 2.02.04" in Figure 1.4 below) or browse to it by clicking the browse button. Once the file path has been entered in the box, click next to proceed Figure 1.4 -If Windows XP is configured to warn when unsigned (non-WHQL certified) drivers are about to be installed, the message dialogue shown in Figure 1.5 will be displayed unless installing a Microsoft...
  • Page 68 Figure 1.5 -The screen shown in Figure 1.6 will be displayed as Windows XP copies the required driver files. Figure 1.6 -Windows should then display a message indicating that the installation was successful (Figure 1.7). Click "Finish" to complete the installation for the first port of the device. Figure 1.7...

  • Page 69: Firmware Upgrade

    “DI2000S_xxxx_Revxx.hex” file. (xxx is the current version number). Save it in the “DI2000 or DI2200 hex files” data directory just created on your PC: i.e. “C:\Daiwha downloads\DI2000 hex files” 2. Click on the Megaload.NET icon on your desktop to run the downloader: Figure 2.1...
  • Page 70 Figure 2.2 Go to Start → Control Panel → System → Hardware → Device Manager → Ports Go to Start → Control Panel → System → Hardware → Device Manager → Ports Go to Start → Control Panel → System → Hardware → Device Manager → Ports Click on the “+”...
  • Page 71 Figure 2.4 9. Unplug, setup the switches and install. If doing a number, just plug the next one in and toggle its yellow switch.(If it fails to program or stops prematurely, push the small RESET switch to retry. It should show Target Mega128 at the end).
