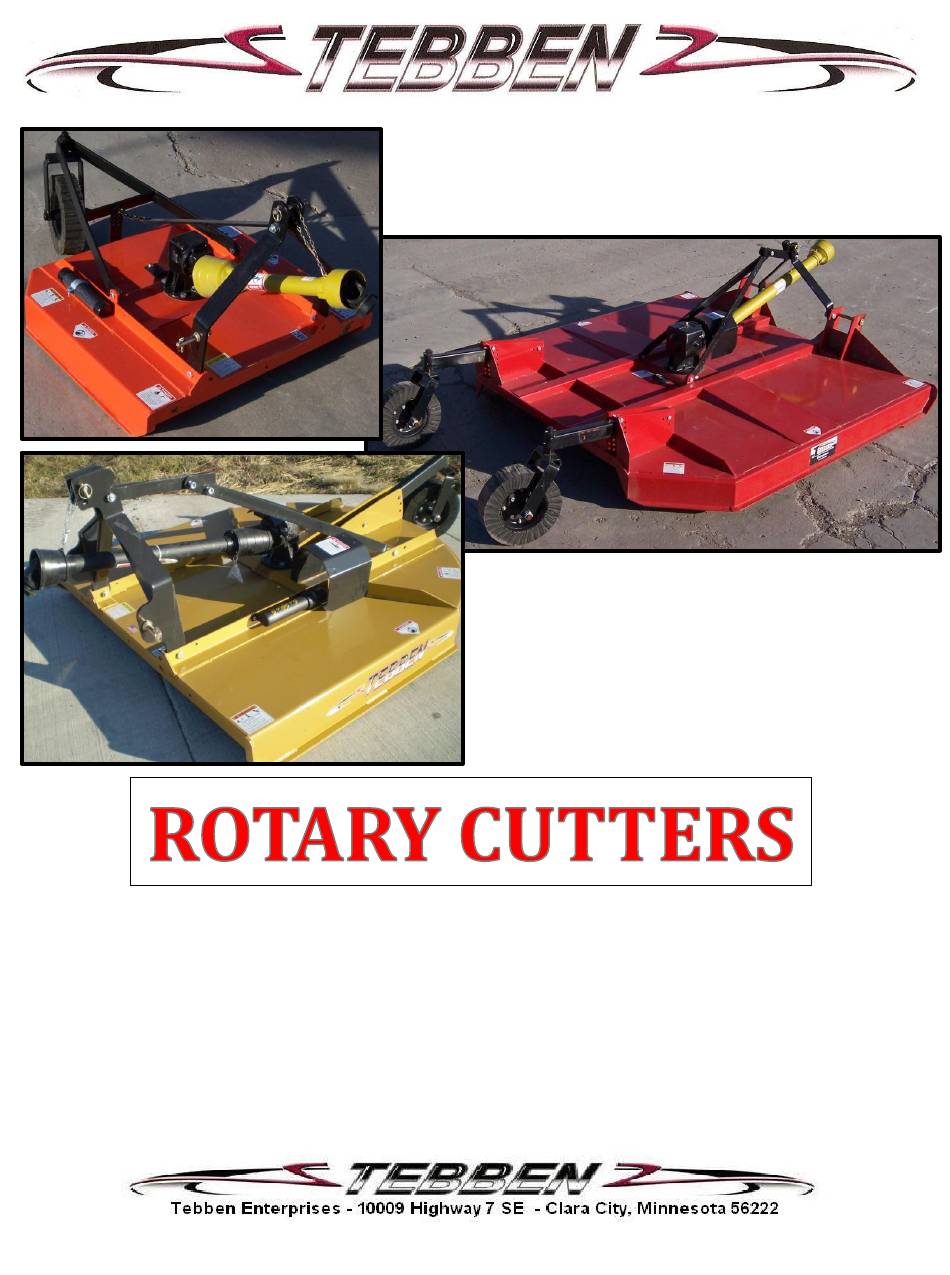

- Page 1 MODEL: TC07-40 MODEL: TC10-400/TC10-500/TC10-600 MODEL: TC94-40/TC94-400/TC94-500/TC94-600 MODEL: TC94-500MC/TC94-600MC/TC94-700MC OPERATOR’S MANUAL AND PARTS BOOK OPERATOR’S MANUAL PART# 60-2007 Phone: (320)847-2200...
-
Page 4: Warranty
Tebben Enterprises, TRANSPORTATION PREPAID, accompanied by a letter setting forth the nature of the defect. If the part is found to be defective by reason of materials or workmanship, Tebben Enterprises, shall replace the part, but shall not be responsible for its re-installation. -
Page 5: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE INTRODUCTION SAFETY General Safety Operating Safety Maintenance Safety Transport Safety Storage Safety Safety Decals Sign-Off Form SAFETY DECAL LOCATIONS OPERATION To The New Operator or Owner Machine Components Machine Break-In Pre-Operation Checklist Equipment Matching Attaching/Unhooking Field Operation 14-16 Transporting... -
Page 6: Introduction
Use the Table of Contents as a guide to locate required information. Keep this manual handy for frequent reference and to pass on to new operator or owners. Call your Tebben dealer or distributor if you need assistance, information or additional copies of the manuals. -
Page 7: Safety
The Safety Alert symbol identifies ATTENTION! BECOME ALERT! important safety messages on the YOUR SAFETY IS INVOLVED! Tebben Rotary Cutter and in the manual. When you see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the safety message. -
Page 8: General Safety
SAFETY GENERAL SAFETY YOU are responsible for the SAFE operation and maintenance of your Tebben Rotary Cutter. YOU must ensure that you and anyone else who is going to operate, maintain or work 1. Read and understand the Operator's Manual and all... -
Page 9: Operating Safety
MAINTENANCE SAFETY OPERATING SAFETY 1. Read and understand the Operators Manual 1. Follow ALL the operating, maintenance and all safety signs before operating, servicing, and safety information in the manual. adjusting, repairing or unplugging. 2. Support the machine with blocks or safety 2. -
Page 10: Transport Safety
SAFETY DECALS TRANSPORT SAFETY 1. Keep safety decals and sign clean and 1. Make sure you are in compliance with all local legible at all times. regulations regarding transporting equipment on public roads and highways. 2. Replace safety decals and signs that are missing or have become illegible. -
Page 11: Sign-Off Form
SIGN-OFF FORM TEBBEN ENTERPRISES follows the general Safety Standards specified by the American Society of Agricultureal Engineers (ASAE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be operating and/or maintaining the Cutter must read and clearly understand ALL Safety, Operating and Maintenance information presented in this manual. -
Page 12: Safety Decal Locations
SAFETY DECAL LOCATIONS The types of decals and locations on the equipment are shown in the illustration below. Good Safety requires that you familiarize yourself with the various Safety Decals, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS. Think SAFETY! Work SAFELY! PART NO. - Page 13 The types of decals and locations on the equipment are shown in the illustration below. Good safety requires that you familiarize yourself with the various Safety Decals, the types of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS. Think SAFETY! Work SAFELY! PART NO.
-
Page 14: Operation
TO THE NEW OPERATOR OR OWNER The Tebben Implement Rotary Cutter is designed to cut a variety of grassses and other ground covers. Rotational power to the blades is provided by the tractor PTO. Be familiar with the machine before starting. -
Page 16: Machine Break-In
MACHINE BREAK-IN PRE-OPERATION CHECKLIST Although there are no operational restrictions on Efficient and safe operation of the Tebben Rotary the Rotary Cutter when used for the first time, it is Cutter requires that each operator reads and un- recommended that the following mechanical items... -
Page 18: Attaching/Unhooking
ATTACHING/UNHOOKING The Cutter should always be located on a level, dry Use the screw jack on the right lift arm to area that is free of debris and other foreign objects. align the ball with the pin. When attaching the machine to a tractor, follow this procedure. -
Page 19: Field Operation
FIELD OPERATION OPERATING SAFETY Read and understand the Operator's Manual Clean reflectors, SMV and lights before and all safety signs before operating, servic- transporting. ing, adjusting, repairing or unplugging. Use hazard flashers on tractor when trans- Do not allow riders. porting. - Page 20 6. Set the Machine a. Level the Frame: Use the screw jack on the right lift arm to level the frame from side-to-side. Use the turnbuckle on the top link to center the top pin in its slot. This will allow the machine to follow the contour of the ground.
- Page 21 Align the unit with the working area. 11. Operating hints: Starting machine: a. Although it is best to cut when it is dry, a. Run the engine at low idle. the cutter works well in we conditions as well. However, the operator will have b.
- Page 23 h. The dished shape of the rotating plate under the deck acts as a "stump jumper". The concave shape allows the machine to go over stumps, rocks and other obstacles while operating. i. Always reduce gound speed when cutting around obstructions or in close quarters.
-
Page 24: Storage
STORAGE STORAGE SAFETY 1. Store unit in an area away from human activity. 2. Do not permit children to play on or around the stored machine. 3. Store the unit in a dry, level area. Support the frame with planks if required. After the season's use, the machine should be thoroughly inspected and prepared for storage. -
Page 25: Service And Maintenance
SERVICE AND MAINTENANCE FLUIDS AND LUBRICANTS MAINTENANCE SAFETY 1. Grease: 1. Follow ALL the operating, maintenance and Use an SAE multi-purpose high temperature safety information in the manual. grease with extreme pressure (EP) perfor- mance. Also acceptable is an SAE multi-purpose 2. -
Page 30: Optional Slip Clutch Maintenance
OPTIONAL SLIP CLUTCH MAINTENANCE An optional slip clutch is available on the machine. Proper clutch operation requires that the friction plates be set at the required pressure and the material be clean. To ensure these requirements, follow this procedure: Before first use or after a long storage, loosen set screw on pressure nut. -
Page 31: Trouble Shooting
TROUBLE SHOOTING The Tebben Rotary Cutter uses a pair of free-swinging blades on a rotor to cut grass and other types of weeds and brush. It is a simple and reliable system that requires minimal maintenance. In the following section, we have listed many of the problems, causes, and solutions to the problems that you may encounter. -
Page 32: Assembly
ASSEMBLY The machine is shipped from the factory in a partially disassembled form that allows for easy WARNING and convenient shipping. Machine is shown with guard lifted for illus- When preparing for the customer, follow this trative purposes only. Do not operate ma- chine with guard lifted. -
Page 33: Optional Equipment
OPTIONAL EQUIPMENT CHAIN GUARD DEFLECTORS A Chain Guard deflector for the front and rear is available for the Rotary Cutter. Tebben recom- mends that the machine be equipped with these deflectors to minimize expelled debris. SLIP CLUTCH A Slip clutch on the gearbox input shaft is available from the factory. -
Page 34: Specifications
STANDARD EQUIPMENT AND SPECIFICATIONS TC10-400 TC10-500 TC10-600 48" 60" 72" Cutting Width 52" 64" 76" Transport Width 80" 98" 108" Overall Length 3/4" Min 3/4" Min 3/4" Min Cutting Height Cat. I Cat. I Cat. I Hitch Blade Carrier 15 Min. 20-40HP 20-40HP Horsepower Required... -
Page 35: Bolt Torque
BOLT TORQUE CHECKING BOLT TORQUE The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the torques specified in the chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Make sure To replace worn out bolts and nuts with the same grade your machine came with. -
Page 36: Parts List
3 on and illustration points to a component which is item 3 on the accompanying table. PART NUMBER The part number is the number by which the component may be identified and ordered from TEBBEN ENTERPISES and its network dealers. DESCRIPTION This column contains the name and description of the part. PAGE 31... -
Page 37: Rotary Cutter (Roundback)
ROTARY CUTTER (ROUND BACK) MODEL TC10-400 4’ MODEL TC10-500 5’ MODEL TC10-600 6’... - Page 38 ROTARY CUTTER (ROUND BACK) MODEL TC10-400 MODEL TC10-500 PARTS LIST MODEL TC10-600 REF. PART NO. DESCRIPTION QTY. 64-40010 48” Deck 64-50010 60” Deck 64-60010 72” Deck 60-912 Blade Bolt Nut 60-913 Lock washer 60-750 Stump Jumper Pan 60-914 Blade, 48” Cut 60-915 Blade, 60”...
- Page 39 ROTARY CUTTER (ROUND BACK) MODEL TC10-400 PARTS LIST MODEL TC10-500 MODEL TC10-600 REF. PART NO. DESCRIPTION QTY. 60-4066 Chain Guard Rear Cable – 48” 60-5068 Chain Guard Rear Cable – 60” 60-6074 Chain Guard Rear Cable – 72” 64-80048 Rear Chain Guard – 48” 64-80060 Rear Chain Guard –...
-
Page 41: Rotary Cutter (Economy)
MODEL TC07-40 ROTARY CUTTER (ECONOMY) MODEL TC07-400 PARTS LIST MODEL TC07-500 MODEL TC07-600 PART NO. DESCRIPTION 64-407 Deck, 40" (2007 & Newer) 64-4007 Deck, 48" (2007 & Newer) 64-5007 Deck, 60" (2007 & Newer) 64-6007 Deck, 72" (2007 & Newer) 60-912 Blade Bolt Jam Nut, 1-1/8"... - Page 42 MODEL TC07-40 ROTARY CUTTER (ECONOMY) MODEL TC07-400 PARTS LIST MODEL TC07-500 MODEL TC07-600 PART NO. DESCRIPTION 60-700 Wheel Fork 60-748 1-8 x 8-1/2 Hx Bolt 60-749 1-8 Hx Nut, Nylock 60-743 Nylon Bushing 60-745 Rim & Tire (Hard Rubber) OBSOLETE...
-
Page 44: Rotary Cutter (Medium Duty)
ROTARY CUTTER (Medium Duty) MODEL TC94-400 PARTS LIST MODEL TC94-500 MODEL TC94-600 PART NO. DESCRIPTION 60-400 Deck, 48" 60-500 Deck, 60" 60-600 Deck, 72" 60-852 Bushing, 3PT Arm 60-820 Upright 60-851 Bushing, Linkage 60-810 Linkage Arm 60-805 Attaching Brace - 48" 60-800 Attaching Brace - 60"... -
Page 45: Optional Pull Type Hitch
ROTARY CUTTER (Medium Duty) MODEL TC94-400 PARTS LIST MODEL TC94-500 MODEL TC94-600 PART NO. DESCRIPTION 60-864 Front Chain Guard Cable - 48" 60-865 Front Chain Guard Cable - 60" 60-866 Front Chain Guard Cable - 72" 60-862 Rear Chain Guard Cable - 48" 60-867 Rear Chain Guard Cable - 60"... -
Page 47: Rotary Cutter (Heavy Duty)
ROTARY CUTTER (HEAVY DUTY) MODEL TC94-500MC PARTS LIST MODEL TC94-600MC MODEL TC94-700MC PART NO. DESCRIPTION 60-500MC Deck - 60" 60-600MC Deck - 72" 60-700MC Deck - 84" 60-852 Bushing, Upright 60-820 Upright 60-851 Bushing, Large 60-813 Linkage Arm 60-800 Attaching Brace 60-908 5/8-11 x 2-1/2 Hx Bolt 61-625... - Page 48 ROTARY CUTTER (HEAVY DUTY) MODEL TC94-500MC PARTS LIST MODEL TC94-600MC MODEL TC94-700MC PART NO. DESCRIPTION 60-865 Front Chain Guard Cable - 60" Deck 60-866 Front Chain Guard Cable - 72" Deck 60-989 Front Chain Guard Cable - 84" Deck 60-867 Rear Chain Guard Cable - 60"...
- Page 50 OPTIONAL PULL TYPE HITCH ASSEMBLY TC94-500MC, TC94-600MC, TC94-700MC PART NO. DESCRIPTION 61-665 Screw Jack (Complete) 61-663 Screw Jack Handle 61-667 Hitch Pin 61-66 Keeper 60-948 Height Adjustment Bracket 60-955 Trail Wheel Frame (Non Swivel) 60-993 Hitch 60-1000 7/8"-9 x 4" Hx Bolt 60-921 7/8"...
- Page 54 HEAVY DUTY CUTTERS 01-114 5’, 6’ HD CUTTER & 7’, 8’, & 10’ DBL CUTTERS 01-115 7’ HD CUTTER REF. PART NO. QTY. DESCRIPTION 18-027 HOUSING 02-053 OUTPUT SHAFT 04-010 #368 BEARING CONE 04-009 #362 BEARING CUP 03-061 OUTPUT PINION 13 TOOTH, TC94-500MC, TC94-600MC 03-062 OUTPUT PINION 14 TOOTH,...
- Page 56 2007 & Newer Driveshaft Economy & Medium Duty Cutters 60-9517 60-9567 60-9617 TEBBEN DRIVESHAFT ASSEMBLY PART# 40" & 48" 60" 72" Ref. Part# Part# Part# Qty Req'd Description 5070E0355 5070E355 5070E355 YOKE #4/S4 1-3/8" z6 SHROUDED PIN (007) 4120E0011R25 4120E0011R25 4120E0011R25 CROSS KIT #4 27x74.6 ZERK IN BODY...
- Page 58 2006 & OLDER DRIVE SHAFT & SLIP CLUTCH ECONOMY, ROUNDBACK & MEDIUM DUTY CUTTERS 40" & 4' REF. NO PART NO. PART NO. PART NO. DESCRIPTION 0800403 SAME - 4' SAME - 4' YOKE 08204 SAME - 4' SAME - 4' CROSS JOURNAL ASSY.
