Introduction
The network cable tester is a small hand-held cable tester, which enables network professionals to
quickly and easily verify the integrity of Ethernet twisted pair cables.
Features
( Test device used with UTP (Unshield Twisted Pair) and STP (Shield Twisted Pair) wiring.
( Checks continuity and configuration of wiring with unshielded and shielded modular plugs.
( Tests for open circuits, shorts, miswires, reversals, and split pairs.
( SHIELD detection tests a cable's shield integrity.
( Main unit and one remote allow one person to test T568A, T568B, 10Base-T, and Token Ring.
( DEBUG quickly identifies which cable pairs have a specific wiring fault.
( 6 volt battery is installed in the main tester unit (Remote unit is unpowered).
( Battery low indicator.
( 1 (
∙ manual ∙
( Panel
Panel
①. RJ45 Test Jack
②. Pair 1 Indicator (1-2)
③. Pair 2 Indicator (3-6)
④. Pair 3 Indicator (4-5)
⑤. Pair 4 Indicator (7-8)
⑥. Shield Indicator
⑦. Test or Debug Button
⑧. Short Faults LED
⑨. Miswire Faults LED
⑩. Reversed Faults LED
⑪. Split Pairs LED
⑫. Low Battery Indicator
⑬. Power Switch
Network
Network
Network Cable
Network
Cable
Cable
Cable Tester
1-2 3-6 4-5 7-8
SHIELD
SHORT
TEST
MISWIRE
REVERSED
SPLIT PAIRS
LOW BATTERY
NETWORK
NETWORK
NETWORK
NETWORK
CABLE TESTER
CABLE TESTER
CABLE TESTER
CABLE TESTER
Tester
Tester
Tester
Advertisement
Related Manuals for Mastech MS6811
Summary of Contents for Mastech MS6811

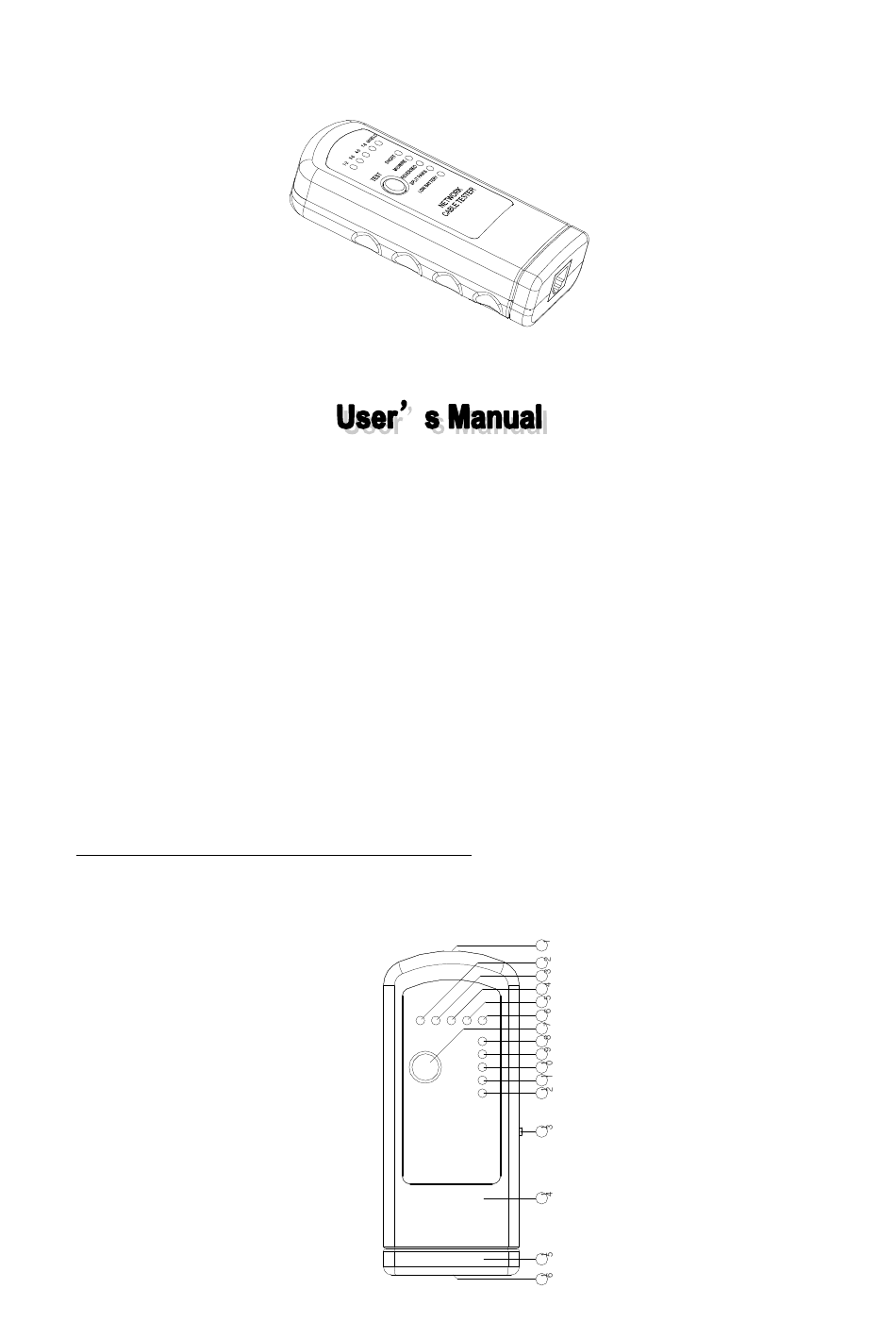

- Page 1 Network Network Network Network Cable Cable Cable Cable Tester Tester Tester Tester Introduction The network cable tester is a small hand-held cable tester, which enables network professionals to quickly and easily verify the integrity of Ethernet twisted pair cables. Features ( Test device used with UTP (Unshield Twisted Pair) and STP (Shield Twisted Pair) wiring.
- Page 2 ⑭. Main Unit ⑮. Remote Unit . RJ45 Test Jack ( 2 ( ( FAIL INDICATORS ∙ manual ∙ Fail Indicators A flashing pair LED indicates that this wire pair has a fault. A flashing LED in the FAIL section will indicate which fault was detected.
- Page 3 an accurate test. At this time, you must replace it with a new battery (6 volt L1325/4LR44). CAUTION CAUTION CAUTION CAUTION circuits circuits as it it it it may damage damage tester tester Do NOT NOT use use on on the the circuits circuits as may damage...
- Page 4 ∙ manual ∙ ( BATTERY REPLACEMENT Note: When test is over, tester will be automatically in sleep mode (switch at ON position and test is over). Even though the sleep mode consumes very little power, it is suggested to turn off the power if do not use for a long time.
