American International Electric AIE-450FD Instruction Manual

Double impulse foot sealer
Hide thumbs

Advertisement

Table of Contents

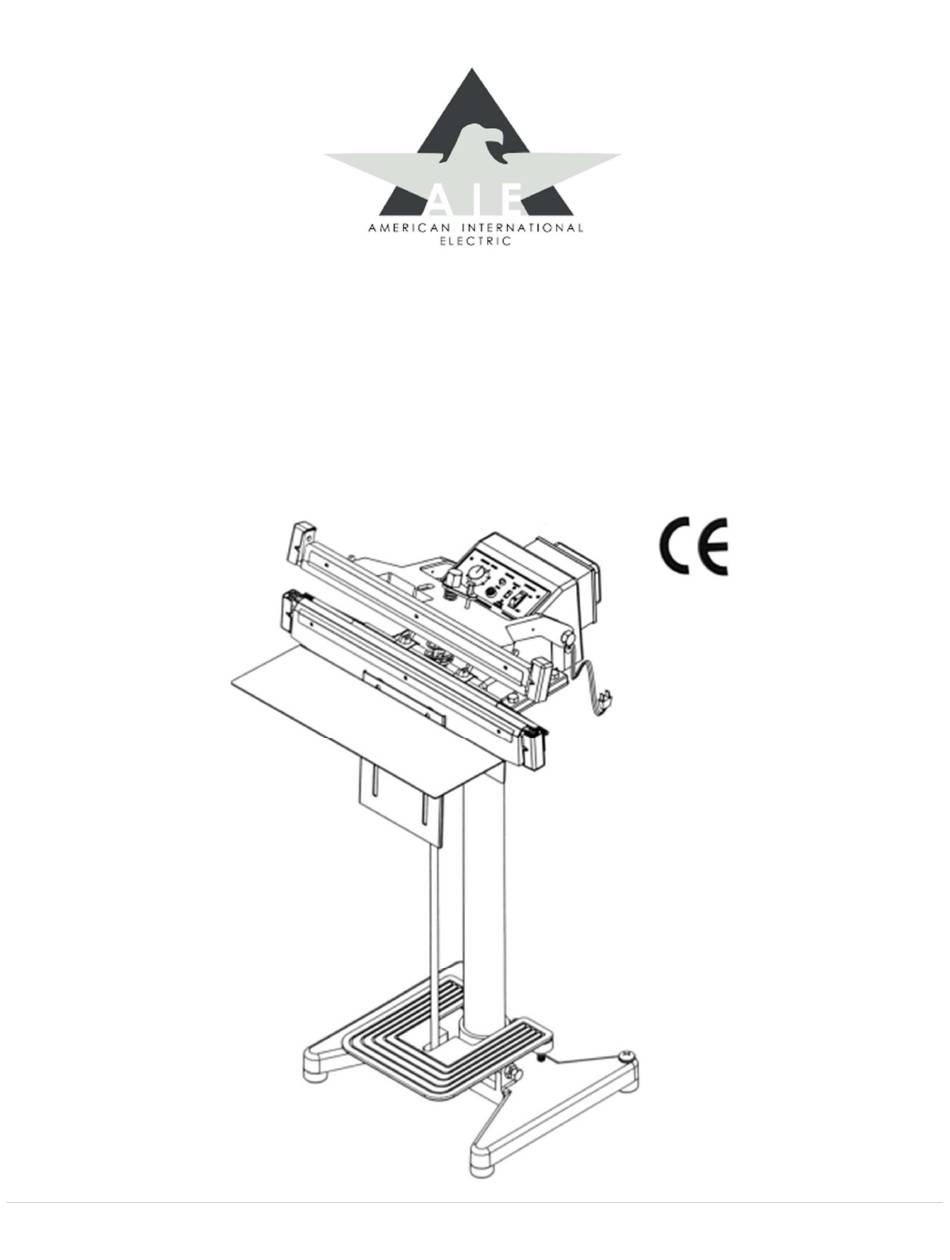

DOUBLE IMPULSE FOOT SEALER
AIE-450FD
INSTRUCTION MANUAL
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIE-450FD and is the answer not in the manual?

Questions and answers

Related Manuals for American International Electric AIE-450FD

Summary of Contents for American International Electric AIE-450FD

  • Page 1 DOUBLE IMPULSE FOOT SEALER AIE-450FD INSTRUCTION MANUAL P a g e...

  • Page 2: Construction Diagram

    CONSTRUCTION DIAGRAM P a g e...

  • Page 3: Parts List

    *BODY-B60 36 TRANSFORMER *TR300FD 36 TRANSFORMER *TR600FD 39 UPPER PTFE FIXED PLATE *TFP300FD 39 UPPER PTFE FIXED PLATE *TFP600FD AIE-450FD/AIE-410FD AIE-800FD 6 UPPER SEALING JAW *SRH45FD 6 UPPER SEALING JAW *SRH80FD 13 SEALING SILICON RUBBER *SR450 13 SEALING SILICON RUBBER...

  • Page 4: Replacement Kits

    36 TRANSFORMER *TR450FD 36 TRANSFORMER *TR800FD 39 UPPER PTFE FIXED PLATE *TFP450FD 39 UPPER PTFE FIXED PLATE *TFP800FD REPLACEMENT KITS MODEL AIE-300FD AIE-310FD AIE-450FD AIE-410FD AIE-600FD AIE-610FD AIE-800FD *K300FD *K310FD *K450FD *K410FD *K600FD *K610FD *K800FD All kits include x2 flat element wires, x2 cover scrolls, and x2 lower PTFE strips.
  • Page 5 FOOT SEALER ASSEMBLY 1. Insert the standing tube (#28) into the pedal base (#37) and fix in place using the two short screws. 2. Using the four long screws, connect the enclosure body (#1) to the standing tube (#28). 3. Attach the puller tension rod (#23) to the puller notch located under the lower sealing body (#27) and then attach it to the foot pedal (#24).

  • Page 6: Helpful Information

    5. Attach the working board (#15) over the fixed adjust bracket (#18) with two screws. Note: When attaching the working board to the adjust bracket, make sure to leave enough space between the lower sealing body and the top of the screws so that the working board can be easily attached.

  • Page 7: Changing Parts

    CHANGING PARTS To replace a burnt-out PTFE cloth or a broken element wire, please follow these instructions: REMOVE THE PLUG FROM ELECTRIC OUTLET USE ONLY GENUINE REPLACEMENT PARTS 1. To replace the PTFE cloth: a. Loosen the PTFE press clips and remove the PTFE fixed plate. b.

  • Page 8: Spare Parts

    SPARE PARTS ACCESSORIES QUANTITY Working Board Working Adjust Bracket Heating Wire Fuse 6.3A x1 or 10A x1 or 20A x1 SPECIFICATIONS AIE-300FD/AIE- AIE-455FD/AIE- AIE-605FD/AIE- Model 310FD 410FD 610FD AIE-805FD Max Seal Length 300 mm (12") 450 mm (18") 600 mm (24") 800 mm (32") Seal Width 5 mm/ 10 mm...
