MICRO-AIR WC5000 Installation And Operation Manual

Hide thumbs

Advertisement

Table of Contents

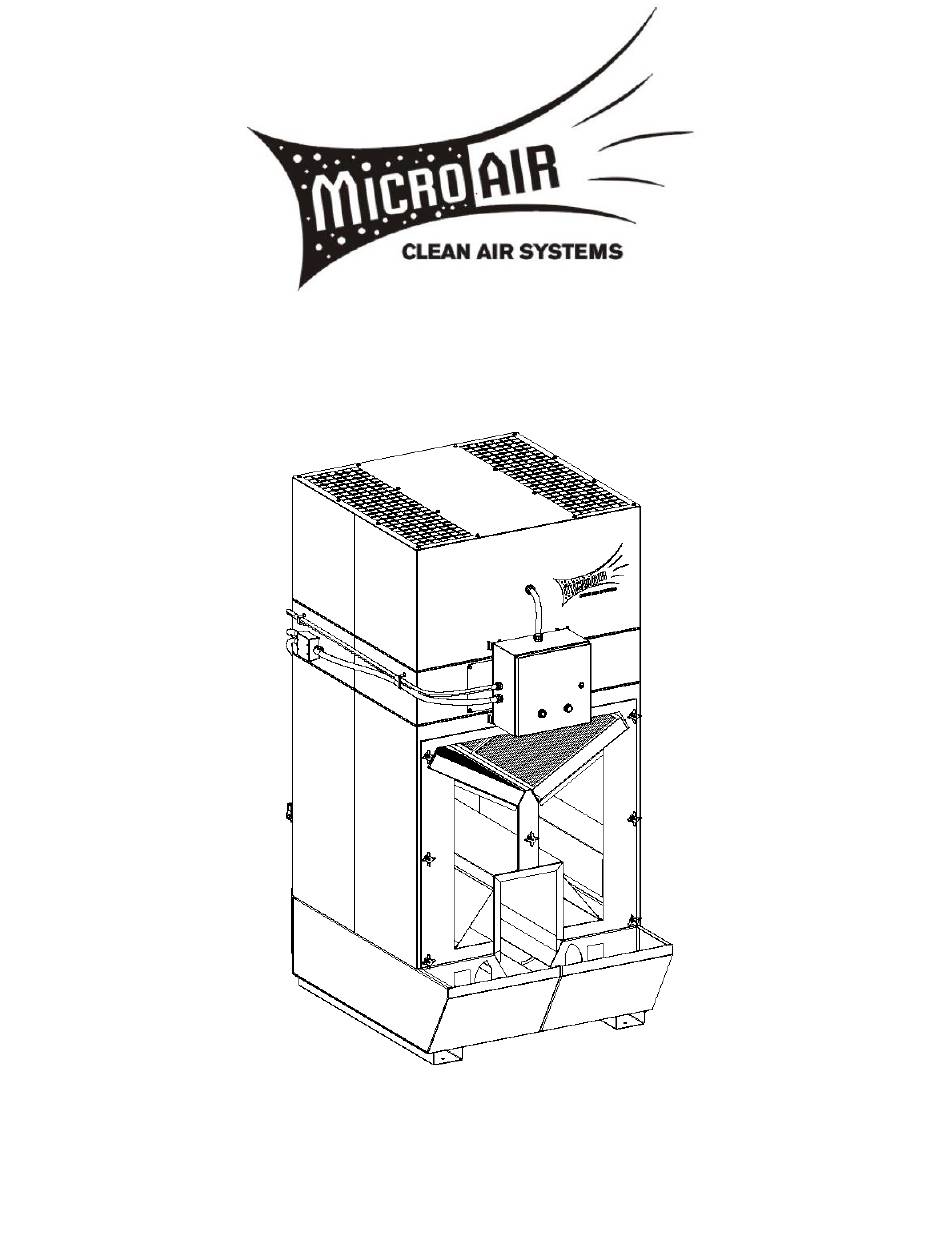

MODEL WC5000
Installation and Operation Manual
This manual contains specific cautionary statements relative to worker safety. Read this manual thoroughly and follow
as directed. It is impossible to list all of the hazards of dust control equipment. It is important that use of the equipment
be discussed with a Micro-Air Representative. Persons involved with the equipment or systems should be instructed how
to operate in a safe manner.
MICRO AIR
www.microaironline.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WC5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for MICRO-AIR WC5000

  • Page 1 It is impossible to list all of the hazards of dust control equipment. It is important that use of the equipment be discussed with a Micro-Air Representative. Persons involved with the equipment or systems should be instructed how to operate in a safe manner.

  • Page 2: Equipment / Tools Required

    All users of Micro-Air Equipment should comply with all National and Local Fire Codes and/or other appropriate codes when determining the location and operation of dust control equipment.
  • Page 3 WC5000 MICRO AIR PRE-OPERATING INSTRUCTIONS: The Micro Air WC5000 may be shipped on multiple skids. 1. Inspect every skid for any visible damage that may have occurred during shipment. Report any damage to the delivery carrier. 2. Remove the shipping crate, shipping straps and plastic wrap from unit. Discard shipping materials.

  • Page 4: General Maintenance

    WC5000 MICRO AIR UNIT OPERATION: THIS UNIT REQUIRES A MINUMUM OF 6.5 INWC OF EXTERNAL STATIC PRESSURE TO OPERATE. IF THIS CONDITION IS NOT MET THE RISK OF EXHAUSTING WATER WILL BE PRESENT. Starting and Stopping: 1. To Start the unit press the button labeled START.
  • Page 5 WC5000 MICRO AIR 6. Energize the unit. Mist Eliminator Filters: The unit is equipped with four (4) Chevron type mist eliminator filters. The filters require periodic cleaning to ensure proper operation. The service interval will vary depending on the specific application.
  • Page 6 WC5000 MICRO AIR 7. Repeat this process until the entire sump bottom has been cleaned. 8. Replace the sump access panel. 9. Start the unit. Method 2: This method utilizes an industrial rated filtered wet sump vacuum. DO NOT use a standard shop vacuum, as it is not rated for this operation and can lead to injury, fire, or explosion.

  • Page 7: Installation

    WC5000 MICRO AIR A-FRAME INSTALLATION PROCEDURE This kit includes: ITEM PART NO. DESCRIPTION QTY. 34634-01 A-Frame Assembly 1 ea. 5/16-18 x 1” SS Hex Bolt P2551 16 ea. P2553 SS Lock Washer 16 ea. P2552 SS Flat Washer 16 ea.
  • Page 8 WC5000 MICRO AIR SILENCER INSTALLATION PROCEDURE This kit includes: ITEM PART NO. DESCRIPTION QTY. 34627-01 Silencer Assembly 1 ea. 5/16-18 x 1” SS Hex Bolt P2551 16 ea. P2553 SS Lock Washer 16 ea. P2552 SS Flat Washer 16 ea.

  • Page 9: Wiring Schematic

    WC5000 MICRO AIR HEPA AFTER FILTER INSTALLATION PROCEDURE This kit includes: ITEM PART NO. DESCRIPTION QTY. 34624-01 HEPA Plenum 2 ea. 34674-03 HEPA Plenum Bracket 4 ea. 5/16-18 x 1” SS Hex Bolt P2551 24 ea. P2553 SS Lock Washer 24 ea.
  • Page 10 WC5000 MICRO AIR FIG. 10...

  • Page 11: Troubleshooting

    WC5000 MICRO AIR TROUBLESHOOTING: CAUTION: Before disassembling the unit or doing any inspecting of the parts, make certain that the power has been cut off and the blower has come to a complete stop. NEVER run the unit with the access door opened or the panels removed.
  • Page 12 WC5000 MICRO AIR High sump water level Fill sensors dirty Clean sensor probe with cloth Fill sensors failed Replace failed capacitance sensor Slosh tank lid not sealed Reinstall slosh tank lid, ensure positive seal Build up on fill valve seat...
  • Page 13 WC5000 MICRO AIR CAB PARTS LIST: FIG. 11...
  • Page 14 WC5000 MICRO AIR FIG. 12 FIG. 13...
  • Page 15 WC5000 MICRO AIR CAB PARTS LIST: ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 34669-04 Exhaust Panel P9135 3M Deutch Connector P919 15HP Motor 34670-03 Motor Plate P9107 Blower Wheel P9102 Mist-X Filter P3649 4-Prong Knob P9111 Lexan Panel 34669-07...
  • Page 16 WC5000 MICRO AIR Notes: Serial Number: Supply Voltage: Date Installed: Installed By: L2676 04/25...
