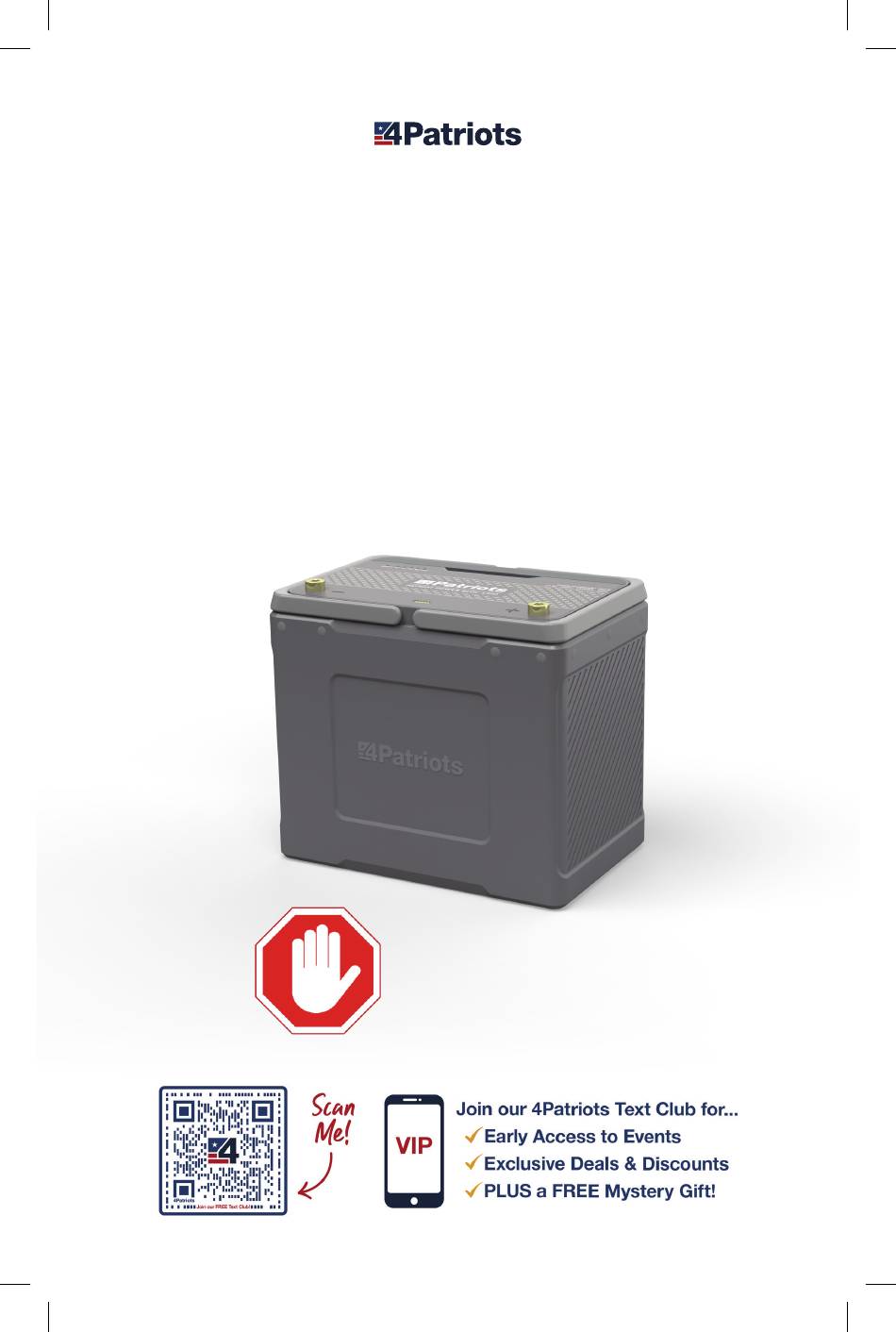

PATRIOT POWER
EXPANDABLE BATTERY 1300
Congratulations! Your Patriot Power Expandable Battery 1300 is
a powerful backup power source that's safe and can be used as a
standalone portable battery or in conjunction with your Patriot Power
Generator 2000X and Patriot Power Battery Connector for maximum
power output.
The Patriot Power Expandable Battery 1300 uses the latest in lithium
battery technology. This replaces deep cycle lead acid batteries with
the safest and long-lasting lithium iron phosphate batteries for your
maximum peace of mind.
READ THIS MANUAL
BEFORE OPERATION
1
Advertisement
Related Manuals for 4Patriots PATRIOT POWER EXPANDABLE BATTERY 1300
Summary of Contents for 4Patriots PATRIOT POWER EXPANDABLE BATTERY 1300
- Page 1 Generator 2000X and Patriot Power Battery Connector for maximum power output. The Patriot Power Expandable Battery 1300 uses the latest in lithium battery technology. This replaces deep cycle lead acid batteries with the safest and long-lasting lithium iron phosphate batteries for your maximum peace of mind.
- Page 2 WARNINGS 1. Do not disassemble, resassemble, or repair the battery. Incorrect reassembly may cause combustion or electric shock. 2. If the battery is damaged, please contact Customer Service at 1-800-304-4202. 3. Do not short-circuit the battery, set it near heat or water sources, or allow it to become wet.
- Page 3 OPERATING YOUR PATRIOT POWER BATTERY 1300 1. When the battery is ON and not charging, briefly press the top OR side button. The correspondence between the LED lights and capacity is as follows: Capacity LED1 LED2 LED3 LED4 LED5 5S - 2HZ (FLASH) 1% - 20% 5S (ON)
- Page 4 The diagram below is a reference on how to connect batteries in series and parallel in a 12V (12.8V nominal) system. Before connecting, each battery must be independently fully charged. CONNECTING YOUR PATRIOT POWER BATTERY 1300 TO ADDITIONAL BATTERIES WARNING: DO NOT CONNECT MORE THAN 4 BATTERIES AT ONCE...
-
Page 5: Features And Specs
MAINTENANCE SUGGESTIONS • For storage over one month, place the battery in a dry and ventilated room that is within the recommended storage temperatures. • Do not store near corrosive material, fire, or heat sources. • Discharge and charge the battery until full, once every six months if not being used. - Page 6 BATTERY PACK ELECTRICAL SPECIFICATIONS Item Parameter Normal Voltage 12.8 (12V) (Works with 12V Systems) Technical Rated Capacity 105aH Minimum Capacity ≥104.5Ah Internal Resistance ≤5mΩ Standard Charging Current Max Charging Current 100A Max Charging Voltage 14.6V Max Continuous Discharge Current 150A Discharge Over Current Protection >150A @ >...
- Page 7 NOTES:...
- Page 8 Manufactured for: 4Patriots, LLC 2920 Berry Hill Dr., Suite 300 Nashville, TN 37204 (800) 304-4202 | 4Patriots.com Made in China V1.1...
