4Patriots PATRIOT PURE AIR User Manual

The Patriot Pure Air Advanced Purification System
will purify up to 485 square feet of your indoor air.
This unit is easy to install and use, and is virtually
silent. Its H13 filter is a medical-grade air filter
capable of removing a minimum of 99.95% particles
at MPPS (0.21 microns) - making it a truly advanced-
engineered "clean air wonder."
Please be sure to read operational instructions and
take note of all warnings before first use.
COMPONENTS:
CONTROL
PANEL
AIR INLET
FILTER
GRID
INSTRUCTIONS FOR USE:
1. Locate a flat, level surface on which to place your
Patriot Pure Air Advanced Purification System.
2. Carefully remove the unit from its packaging.
Keep it unplugged while you are setting it up,
before first use.
3. AIR ADVANCE FILTER INSTALLATION:
You will need to install the filter first, found in the

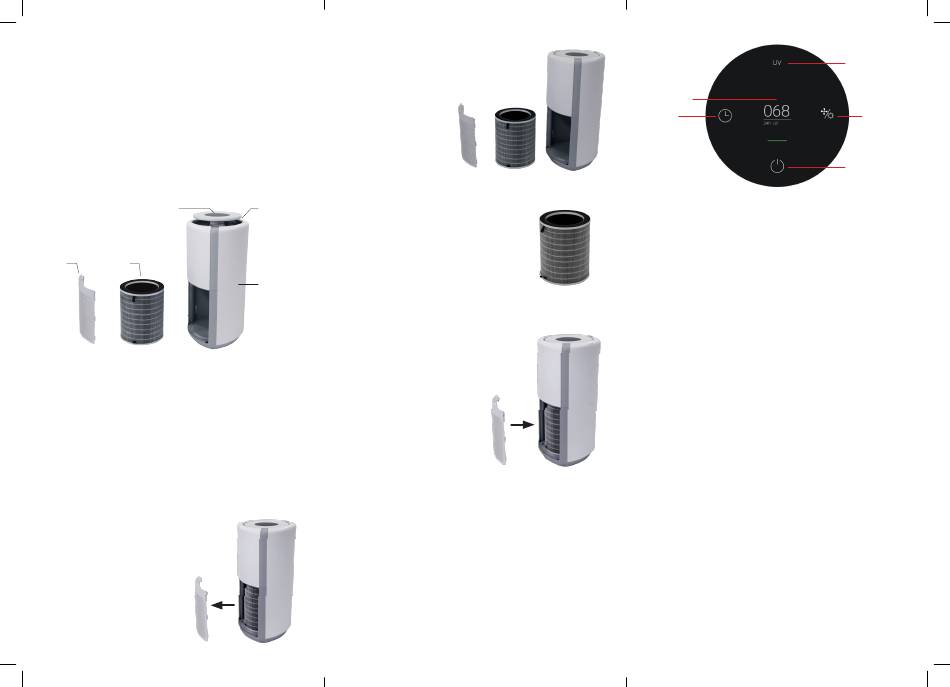

back of the unit. See the following diagrams for a
visual guide.
Locate the tab in the front
to release the front cover.
Open the air inlet grid as
shown. The cylindrical
filter will be inside.
Take out the new filter and
adapter from the air purifier.
AIR
OUTLET
Remove the packaging from
GRID
the new filter.
DEVICE
BODY
Install the filter back into
the device, then close the
air inlet grid.
NOTE: the filter is meant to fit snugly inside
its housing, so take your time putting it back
in the unit. Do not force parts back together to
prevent breakage.
4. You are now ready to plug in your Patriot Pure Air
Advanced Purification System.
5. Notice the configuration of the top LED display
control panel on the following page.
PM 2.5
TIMING
6. POWER/ON BUTTON: On the top LED display
panel, locate the power button and press. The
system will turn on and the control panel will rise
a couple of inches, exposing the air outlet grid.
The inner LED will indicate the air quality.
7. WINDSPEED BUTTON: The LED button display
also includes settings to adjust fan speed (Auto/
High/Middle/Low/Sleep). Press the button
repeatedly to cycle through the preferred
windspeed setting.
8. UV BUTTON: Press to turn on/off UV function.
9. TIMING BUTTON: Set the circulation timer
(2H-24H). Press this button to cycle through
to the preferred timing session. You can also
leave the unit in "Auto" mode for it to actively
filter the air without manually powering it on or
off. Cancel the programmed timing session by
long pressing the button (it will go back to "Auto"
mode).
10. PM 2.5: This indicates the level of particulate
matter that is smaller than 2.5 microns. These
smaller particles have been shown to be
damaging to your health. The Patriot Pure Air
Advanced uses a laser dust sensor to constantly
scan your current air quality. In "Auto" mode, it
will adjust fan speed according to levels of these
dangerous dust particles. There is also a color
change to indicate the density. Blue is 0-75 ug/
m3 (GOOD); Yellow is 76-150 ug/m3 (FAIR); and
Red is 151-999 ug/m3 (POOR). A healthy home
should have less than 5 ug/m3 on average.
