SPD-SX PRO Update
This manual explains the new features that were added in SPD-SX PRO
version 1.20. Refer to the SPD-SX PRO Quick Start and Reference
Manual (Roland website) while reading this information.
NOTE
You may not be able to connect the app to the SPD-SX PRO if their
respective versions are different. Use the latest versions for this unit
and for the SPD-SX PRO APP.
Functions Added in Ver.1.20
Using the DH-10 and WT-10 to wirelessly
connect the SPD-SX PRO to a V-Drums pad
This explains the settings you can use for the DH-10 (DrumLink Hub)
and the WT-10 (Wireless Trigger Adapter) to wirelessly connect a
V-Drums pad or cymbal to the SPD-SX PRO.

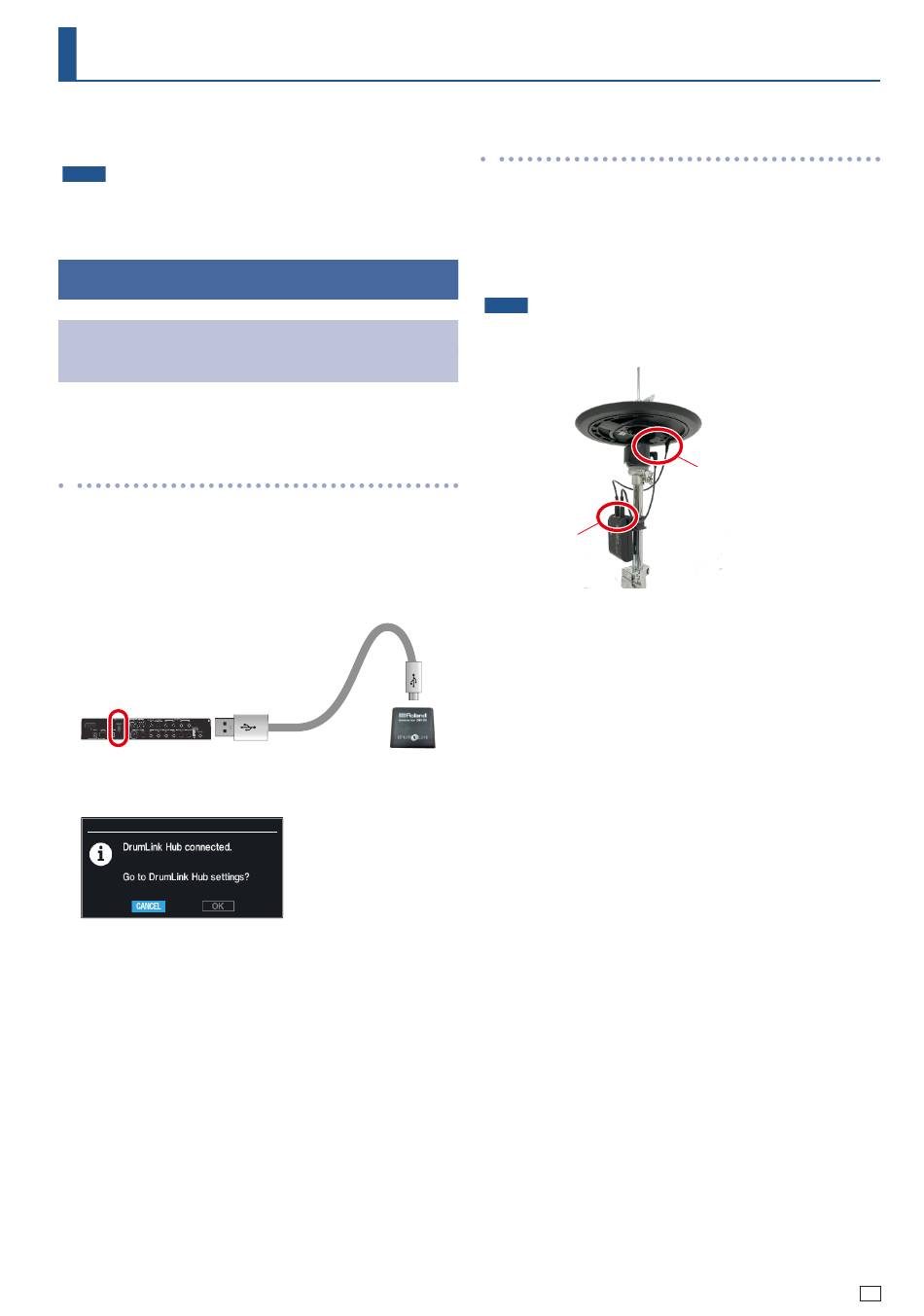

Connecting the DH-10 (DrumLink Hub) to SPD-SX PRO
1.
Use the USB Type-C® cable and the USB Type-C® to
Type-A adaptor that are included with the DH-10 to
connect the DH-10 to the SPD-SX PRO.
First, the blue indicator blinks several times, then the blue and red
indicators remain lit.
USB Type-C® to A adapter
SPD-SX PRO rear panel
The following message is shown once you connect the DH-10.
2.
Use the cursor buttons to select "OK" and press the
[ENTER] button.
This switches to the DrumLink - HUB screen.
Connecting the WT-10 (Wireless Trigger Adapter) to a
drum pad/cymbal
1.
Connect the cables included with the WT-10 to the
PAD1 and PAD2 jacks of the WT-10 and the drum
pad/cymbal jacks.
The power of the WT-10 turns on when you connect a plug into the
PAD1 jack (the indicator briefly blinks blue and then goes dark).
NOTE
When connecting cables to the WT-10, hold the WT-10 firmly.
Example of attaching the WT-10 to the VH-10 hi-hat
PAD1 jack
PAD2 jack
* When connecting only one drum pad or cymbal to the WT-10, use
the PAD1 jack. The PAD1 jack also functions as a power switch.
USB
Type-C®
* When connecting the Roland VH-10 hi-hat, the CY-16R-T cymbal
(both sold separately) or the like, use both the PAD1 and PAD2
jacks.
DH-10
1
© 2023 Roland Corporation
OUTPUT jacks on the drum
pad/cymbal
02
