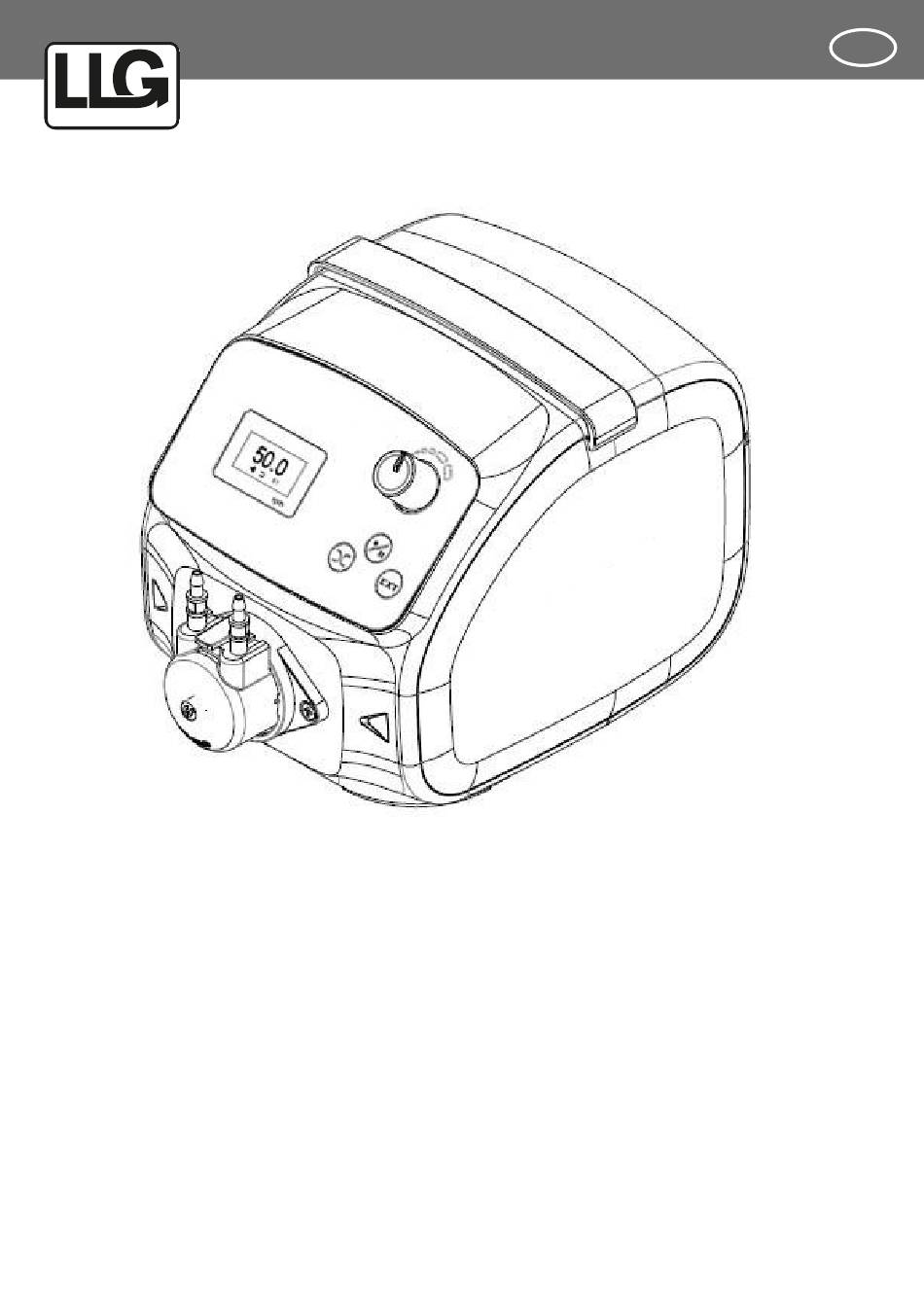

- Page 1 INSTRUCTION MANUAL ® L A B W A R E INSTRUCTION MANUAL LLG-uniPERISTALTICPUMP 1 Please read the manual carefully before use, and follow all opera- ting and safety instructions!
-
Page 2: Table Of Contents
® L A B W A R E Product Introduction Installation instruction Operation instruction Product Appearance ........5 Screen and keypad . -
Page 3: Product Introduction
• If the power line or plug is damaged, please hold the plug to unplug it, not hold the line. 1. Product Introduction LLG-uniPERISTALTICPUMP 1 uses a step Features: motor, has a small size and low noise • Easy installation of pump head, stable emission. -
Page 4: Installation Instruction
L A B W A R E 2. Installation instruction Please note: Micropump head installation and adjustment. 1. Put LLG-uniPERISTALTICPUMP 1 on the If the rollers and hoses are improperly table. placed, it will affect the service life of the hoses and the use of the pump. -
Page 5: Operation Instruction
Picture 5 Picture 6 LLG-uniPERISTALTICPUMP 1 peristaltic pump The two power connectors on the back can has an ABS plastic casing that is anti-static be cascaded with up to three other and prevents corrosion. On the back, there LLG-uniPERISTALTICPUMP 1 pumps. -
Page 6: Screen And Keypad
Working status External button Direction Picture 7 Picture 8 The LLG-uniPERISTALTICPUMP 1 pump has a mechanical keypad with a life of 300,000 cycles to fully meet the needs of various environments. 1. Digital knob: Turn the speed control 4. Start/stop button: Change the motor working status. -
Page 7: Communication Interface
INSTRUCTION MANUAL 3.3 Communication interface We use standard modus protocol • For RS485 communication mode connect (RTUmode). Communication modes are the A+pin (5 pin) together with T/R+ pin RS485 and USB. You can control the start/ of the RS485 module. Connect the B- pin stop, direction and motor speed. -
Page 8: Specifications
® L A B W A R E 5. Specifications Model Peristaltic Pump LLG-uniPERISTALTICPUMP 1 Adaptor Input: AC100-240V, 50/60Hz Output: DC12V/1A Power <10 W Display OLED screen Operation mode Mechanical keypad Motor speed 0.1-150 RPM Flow rate 0,0043 - 63,69 ml/min (depends on tubing size) -
Page 9: Ordering Information
INSTRUCTION MANUAL 6. Ordering Information Cat No. Descriptions Peristaltic Pump LLG-uniPERISTALTICPUMP 1, with EU plug, 6.263 540 pumphead with PharMed tubing ID = 3 mm ® Peristaltic Pump LLG-uniPERISTALTICPUMP 1, with UK Plug, 6.263 541 pumphead with PharMed tubing ID = 3 mm ®... -
Page 10: Warranty
® L A B W A R E 7. Warranty This product is warranted to be free from defects in material and workmanship for a period of three (3) years from date of purchase. This warranty is valid only if the product is used for its intended purpose and within the guidelines specified in this instruction manual. - Page 11 INSTRUCTION MANUAL Notes...
