Red Smoke Alarms RFMOD User Manual

User Manual
Model: RFMOD
Wireless RF Module
INTRODUCTION
IMPORTANT: If you are installing this product for use by others, you
must leave this manual (or a copy of it) for the end user.
Add the RF module (RFMOD) to Red smoke/heat alarm to enable
wireless connection with other RF wireless alarms/products from Red
Smoke Alarms.
The purpose of the RF Module is to wirelessly connect with all Red
Smoke Alarm RF Paired devices within a system. If one alarm detects a
fire, the RFMOD module connected to that alarm will send out an RF
signal, triggering all other alarms in the system to sound off.
RFMOD removes the necessity of setting up wired connections between
alarms on various floors and rooms to convey warnings.
The RFMOD cannot function independently, it requires attached alarms.
It must be connected to the Red Smoke RF compatible alarm unit (refer
to the section "Compatible Models with RFMOD"). We advise end-users
to carefully read the installation instructions for correct RFMOD setup.
DIAGRAM & WARNING

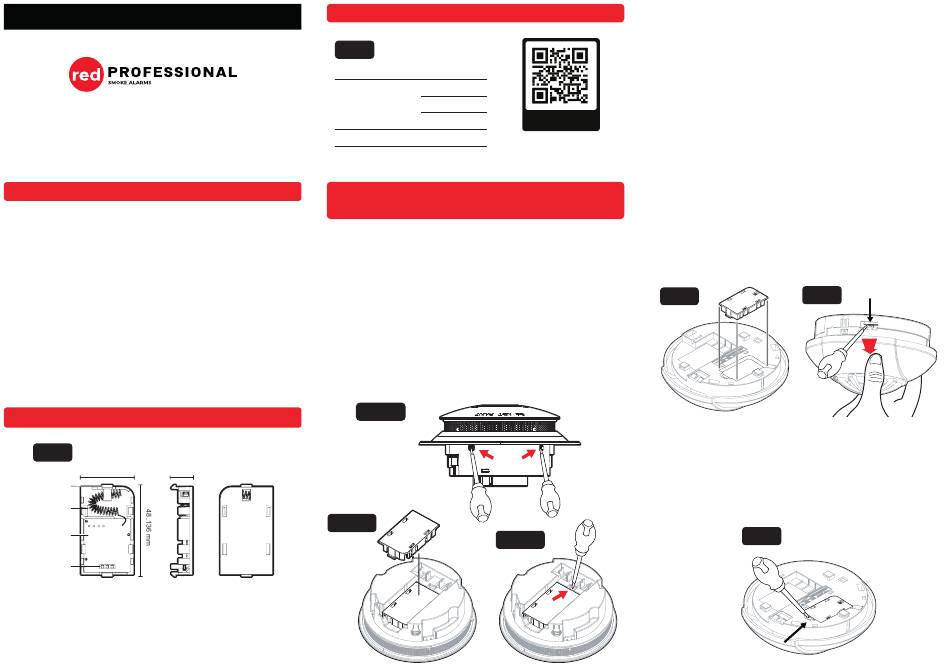

Fig.1
27.64 mm 11.2 mm
Module Lock
ANTENNA
RF PCB Chip
PIN
WARNING : DO NOT BEND THE ANTENNA OR THE PIN.
CAUTION : DO NOT TOUCH THE RF PCB CHIP. HOLD THE
PLASTIC HOUSING PART OF THE RFMOD FOR
INSTALLATION.
COMPATIBLE MODELS WITH RFMOD
Fig.2
Model
RFMDUAL
Smoke Alarms
R240P
RSDUALP
RHA240SL
Heat Alarm
SECTION 1 - EXAMPLES OF INSTALLATION
AND REMOVAL OF THE RFMOD
1.1 INSTALLATION OF RFMOD INTO RFMDUAL
INSTALLING THE RF MODULE INTO THE ALARM UNIT:
1. Before installing the RF Module into the alarm unit, ensure that the
alarm is deactivated by removing the alarm unit from the flush
mount base. To remove the alarm unit from the flush mount base,
use an insulated screwdriver to press the button located at the two
arrow points. See Fig.3
2. Adjust the angle of the RF Module to align it parallel with the alarm
unit, and gently push the RF Module into place. Avoid using
excessive force to prevent any damage to the RF Module. If the RF
Module does not fit smoothly into the alarm unit, readjust the angle
and try reinserting. See Fig.3.1
3. When the RF module is successfully installed into the alarm unit,
you will hear a clicking sound indicating proper attachment.
Fig. 3
Fig. 3.1
Fig. 3.2
REMOVING THE RF MODULE FROM THE ALARM UNIT:
• To remove the alarm unit from the flush mount base, use an insulated
screwdriver to press the button located at the two arrow points. See
Fig.3
• Hold the alarm unit securely and use an insulated screwdriver to push
the module lock of the RF Module, which will result in the removal of
the RF module from the alarm unit. See Fig.3.2
1.2 INSTALLATION OF THE RFMOD INTO
RFMOD
AN RHA240SL
Scan QR code to find out
INSTALLATION OF THE RF MODULE INTO THE ALARM UNIT:
all the compa�ble series
alarms and installa�on
1. Prior to inserting the RF Module into the alarm unit, carefully slide
the alarm unit out from its base, utilise an insulated screwdriver to
lift the latch positioned at the arrow points. See Fig. 4.1
2. Adjust the angle of the RF Module to align it parallel with the alarm
unit, and gently push the RF Module into place. Avoid using
excessive force to prevent any damage to the RF Module. If the RF
Module does not fit smoothly into the alarm unit, readjust the angle
and try reinserting. See Fig.4
3. When the RF module is successfully installed into the alarm unit,
you will hear a clicking sound indicating proper attachment.
Fig. 4
REMOVAL OF THE RF MODULE FROM THE ALARM UNIT:
• To remove the alarm unit from its base, utilise an insulated
screwdriver to lift the latch positioned at the arrow points. (See Fig.
4.1), then slide the alarm unit out from its base following the direction
indicated by the red arrow.
• Hold the alarm unit securely and use an insulated screwdriver to push
the module lock of the RF Module, which will result in the removal of
the RF module from the alarm unit. See Fig.4.2
Fig. 4.1
Fig. 4.2
