Summary of Contents for EVERFURN Vega FD-TS-12

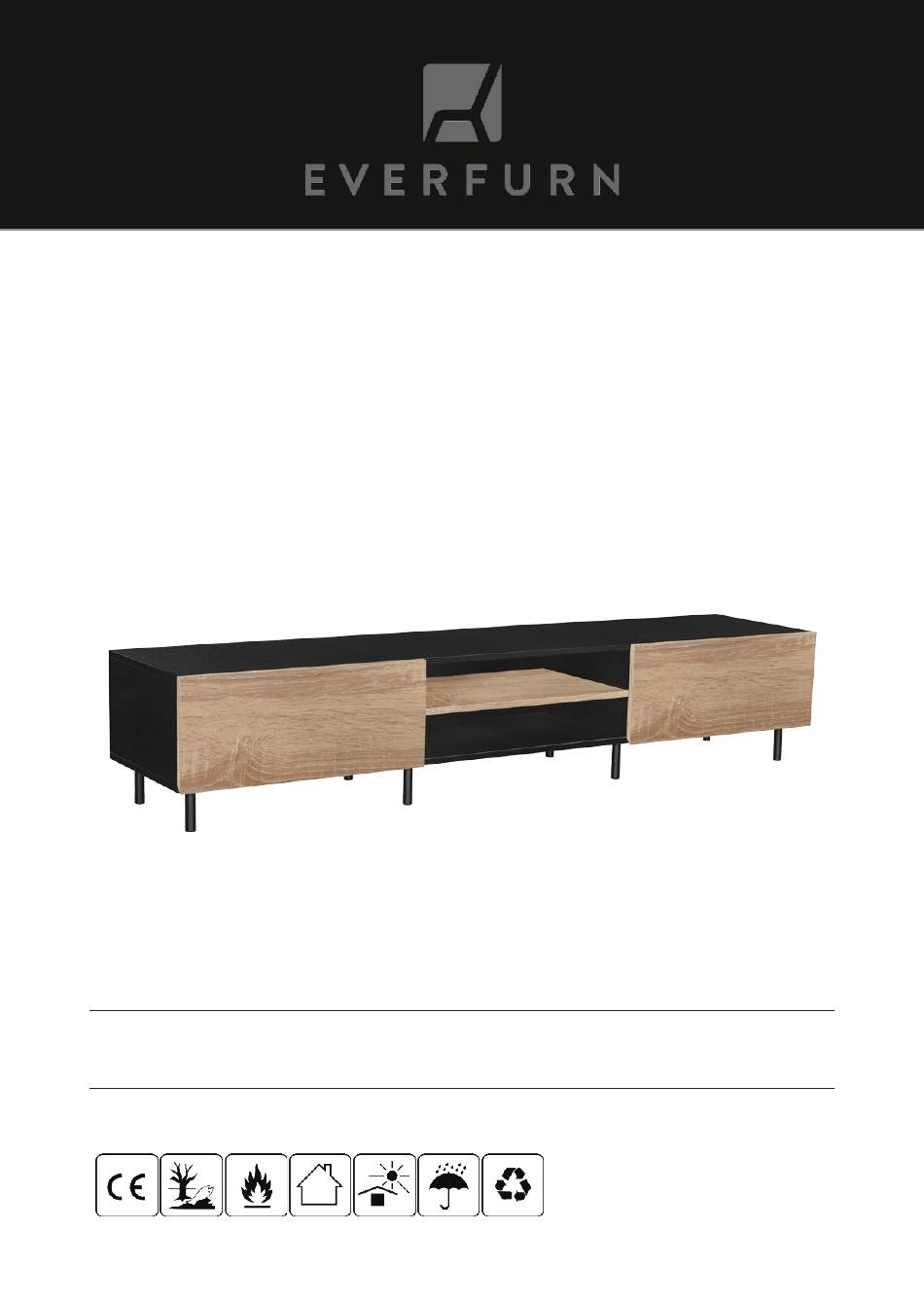

- Page 1 Vega TV Stand INSTRUCTION MANUAL Please read these instructions carefully and retain them for future reference. FD-TS-12...
-
Page 2: Package Contents
HIGHLIGHTS • Powder Coated Frame • Durable Melamine PACKAGE CONTENTS " • Everfurn Vega TV Stand • Assembly Parts • Instruction Manual SPECIFICATIONS • Depth: 400 mm • Height: 350 mm • Width: 1800 mm • Top Board Thickness: 15 mm... -
Page 3: Identifying Parts
IDENTIFYING PARTS 8X30mm M6X12mm 20pcs 28pcs 32pcs 4pcs ST3.5X18mm ST3.5X14mm ST5X50mm 10pcs 28pcs 10pcs 8pcs 16pcs 8pcs Hardware A. Screw and Nut Set x28 F. ST5X50mm Phillips Screw x8 B. 8X30mm Dowels x20 G. ST3.5X18mm Phillips Screw x10 C. M6X12mm Allen Cap Screw x32 H. - Page 4 INSTRUCTIONS FOR USE ASSEMBLY INSTRUCTIONS Important Note: When tightening any fasteners, ensure not to tighten them more than 90% tightness to prevent damage to the product or the fastener. Step 1: 1. Attach the Stand Legs (K) to the Bottom Stand Panel (3) using the M6X12mm Allen Cap Screws (C).
- Page 5 ASSEMBLY INSTRUCTIONS (Continued) Step 4: 1. Attach the Shelf Panel (2) to the Inner Right Stand Panel (5) and the Inner Left Stand Panel (6) using the Screw and Nut Set (A), and the 8X30 Dowels (B). 2. Cover the screws with the Screw Caps (J).
- Page 6 ASSEMBLY INSTRUCTIONS (Continued) Step 7: 1. Attach the Top Stand Panel (1) to the current assembly using the Screw and Nut Sets (A) and the 8x30 Dowels (B). 2. Cover the screws with the Screw Caps (J). • Use a Phillips screwdriver (Not included) to assist with this step.
- Page 7 ASSEMBLY INSTRUCTIONS (Continued) Step 10: 1. Insert the Drawers into the assembled stand. Step 11: 1. Attach the Mounting Brackets (I) to the rear of the stand using the ST3.5X18mm Phillips Screw (G). • Use a Phillips screwdriver (Not included) to assist with this step. Complete...
-
Page 8: Safety Precautions
CLEANING AND CARE INSTRUCTIONS - GENERAL • Cleaning: Wipe down the product’s surface using a thickly folded damp cloth. • Do not use harsh or abrasive cleaning chemicals or materials on the product; doing so may damage or scratch the surface finish. •... -
Page 9: Environmentally-Friendly Disposal
DISCLAIMER All product and company names are trademarks™ or registered ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. ENVIRONMENTALLY FRIENDLY DISPOSAL • At the end of its working life, the product must not be disposed of as urban waste. -
Page 10: Warranty
WARRANTY The Everfurn Vega TV Stand includes a standard 12-month limited warranty against manufacturing defects and faults. Should the product be unboxed with any faulty parts, poor finishing, visible damage, or failure to perform due to a manufacturing defect or poor workmanship, please return it with your proof of purchase (till slip or invoice) to the store of purchase for an exchange, or repair, depending on the store’s returns policy.
