TecLINE HL1000 Instruction Manual

DIVING TORCH TECLINE HL1000
INSTRUCTION MANUAL
Thank you for choosing the Tecline HL1000 diving torch.
If you have additional questions about the torch described in this manual please contact us by email: scubatech@scubatech.pl.
PURPOSE
The Tecline HL1000 diving torch is designed for use underwater, either as a head torch or on the wrist (straps included). Thanks
to the possibility of switching to a wide angle, it can be used when taking photos or filming. A special hole at the bottom
of the torch allows it to be attached to a tripod for a GoPro type camera.
USE / CHARGING THE BATTERY
- To switch the torch on/off, press and hold the control button for approximately 0.5 seconds and release.

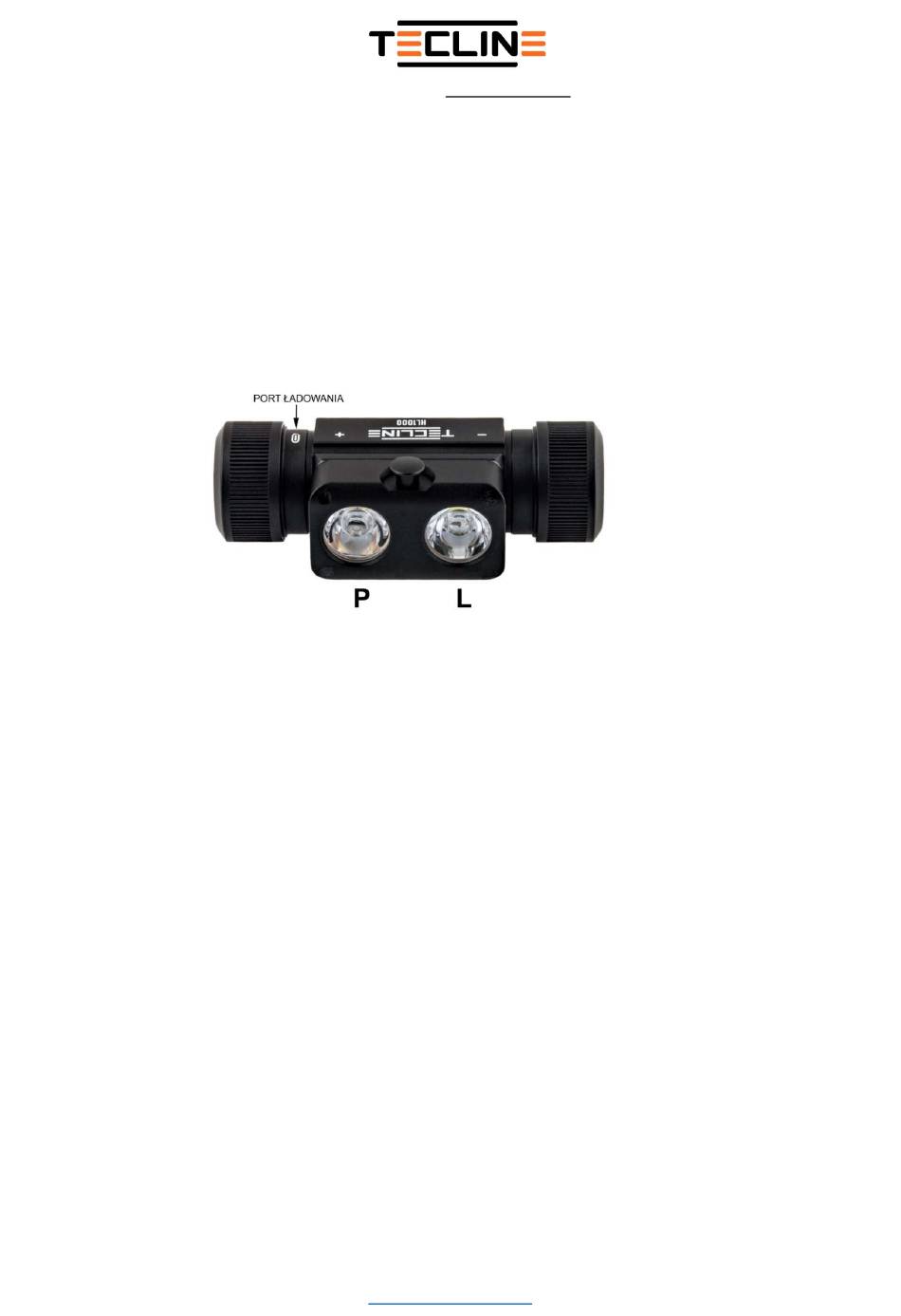

- Light modes: L wide angle 100%, 50% / L+P wide and narrow angle 100%, 50% / P narrow angle 100%, 50%.
- Changing the light mode: one click changes the output brightness, double click changes the beam angle.
Pressing the control button and holding for 1 second enters strobe mode.
- The torch can be easily operated with one hand.
- The battery is charged by unscrewing the charging port cover and connecting the USB-C end of the cable to the torch port and
the USB end to the power source. A flashing green LED indicates that charging is in progress, a steady light indicates that
charging is complete.
SAFETY INFORMATION / RECOMMENDATIONS FOR THE BATTERY
! ) Never point the light beam directly at your eyes. The light from the torch can permanently damage your eyesight.
!) Avoid using the torch on a surface. Overheating can damage the LED.
!) Never open the battery compartment or the charging connector cover under water. Flooding the battery compartment risks
damaging the torch and the battery. Such damage is not subject to warranty.
!) Never charge the battery pack on damp ground.
MAINTENANCE AND STORAGE
- The torch should be thoroughly rinsed in clean fresh water after each use.
- All O-rings should be replaced every 12 months.
- The torch should be stored in a dry place at room temperature.
TECHNICAL DATA
- Material: aluminium T6061 with hard anodic coating
- Light source: 2 LEDs with a life span of 50,000 hours
- Light output: 100% mode - 1300 lumens / 50% - 600 lumens
- Light temperature: 6000K - 6500K
- Light angle: narrow 8-10o / wide 45o
- Maximum operating depth: 150m
