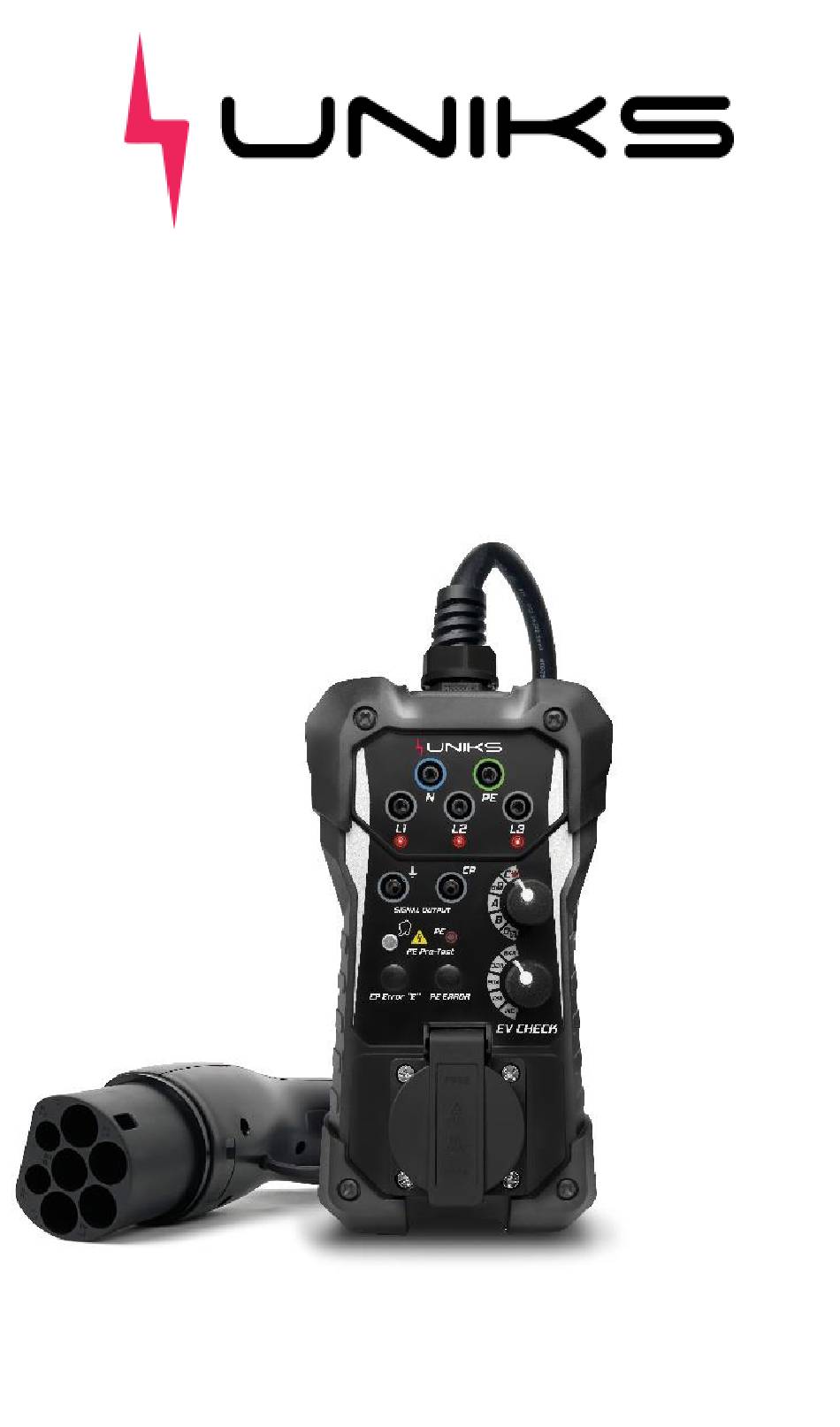

- Page 1 EVSE Adaptor Testing of charging for electric vehicles User Manual Uniks srl V1.0 Copyright®...
-
Page 2: Register Your Product
REGISTER YOUR PRODUCT www.uniks.it The registration of your products will allow you to stay informed about news, take advantage of advantageous discounts dedicated to you for the purchase of accessories and products for your daily work. Registration is free... -
Page 3: Table Of Contents
EV CHECK Safety Introduction ..........1 Symbols Description ..........1 Safety Precautions ..........2 3-1.Safety Working Area ..............2 3-2.Electricity safety ..............2 3-3.Personnel Safety ..............3 Available Measurements and Product Description ... 4 Before Use ............. 5 5-1.Standard Equipment ..............5 5-2.safety precautions .............. -
Page 4: Safety Introduction
Safety Introduction • Introduction: You have acquired a high-quality test adapter that enables you to perform repeatable measurements for an extended period of time. • Designed specifically for testing the function and electrical safety of AC charging stations in mode 3, this adapter can be used in conjunction with suitable test instruments such as installation testers and/or oscilloscopes. -
Page 5: Safety Precautions
3. Safety Precautions • The utilization of this equipment is restricted to individuals who have undergone appropriate training and are capable of operating it effectively. • In order to achieve optimum performance, it is essential to read the instruction manual before using the product. •... -
Page 6: 3-3.Personnel Safety
3-3.Personnel Safety • Stay alert, watch what you are doing and use common sense when operating equipment. • Avoid using equipment when tired or affected by drugs, alcohol, or medication. • Serious personal injury may occur due to a brief lack of attention while operating equipment. -
Page 7: Available Measurements And Product Description
4. Available Measurements and Product Description • The adapter is capable of conducting electrical safety and function tests on mode 3 electric vehicle charging equipment (EVSE) with a type 2 connector . • PE Pre-Test (potential presence of dangerous voltage at PE. terminal by mistake)-touch electrode and led lamp. -
Page 8: Before Use
5. Before Use 5-1.Standard Equipment • Prior to usage, ensure all the items listed below are present in the package: • Main Unit x 1 • Type 2 Test Cable x 1 • Portable Package x 1 • Instruction Manual x 1 5-2.safety precautions •... -
Page 9: 5-3.Appropriate Usage
mentioned in the technical specification section. • The adapter should only be used in dry and clean environments as dirt and humidity can reduce insulation resistance and potentially lead to electrical shocks, especially for high voltages. • Never use the adapter in precipitation such as dew or rain, as temperature fluctuations may cause condensation leading to its malfunction. -
Page 10: Warning Marks Description
6. Warning Marks Description 1-Immediate cessation of further testing is necessary if the PE Pre-Test indicator lights up during the test, as it indicates a high risk of electric shock. Ensuring a proper connection between your body and the earth is crucial while performing this test. -
Page 11: Operation Elements And Connectors
7. Operation Elements and Connectors 1-Measuring Terminal PE 2-Measuring Terminal N 3-CP Signal Output Terminal (Connected to PE) 4-PE Pre-Test Warning Indicator 5-PE Pre-Test Touch Probe 6-PE Error (Earth Fault) Button 7-CP Error “E” Button 8-Mains socket, use for test purpose only, Max allowed current=10A. 9-Measuring Terminal L1,L2,L3 10-Phase Indicators of L1,L2,L3Terminals 11-CP (Control Pilot) State Rotary Switch Selector (A,B,C,D). -
Page 12: Testing Charging Stations
8. Testing Charging Stations 8-1.Purpose of the Test Adapter The Test Adapter serves two main purposes. 1-simulate connection of an electrical vehicle to the tested charging station (the test adapter simulates electrical vehicle and charging cable), connection of the test adapter to a charging station triggers the charging process in the charging station (CP switch at the adapter shall be in appropriate mode), various cable charging capabilities can be simulated(NC,13A,20A,32Aand63A) - Page 13 Please consult the manufacturer's recommendation and national standards that are associated IEC/HD60364-6 for initial test or IEC/HD 60364-7-722. The required tests are: • Visual inspection • Continuity of protective conductors and protective bonding • Insulation resistances • Loop/Line impedance • RCD test •...
-
Page 14: 8-2.Connection Of The Test Adapter To Charging Station
8-2.Connection of the Test Adapter to Charging Station • TYPE 2 test cable, designed for type 2 charging stations featuring a panel mount with socket outlet or a fixed cable with a vehicle connector. Instructions for connecting the test adapter to the charging station: •... - Page 15 connected to phase or if there is an interruption in the PE connection, the situation can become hazardous. • Test procedure: • Firmly connect the adapter to the charging station.. • Then touch the probe with a bare finger. • If the light indicator illuminates, it indicates the presence of dangerous voltage at the PE conductor.
- Page 16 8-3-2.Proximity Pilot (PP) State (Cable Simulation) • With the PP State rotary switch various current capabilities of the charging cable can be simulated when the test adapter is connected to the charging station. • By connecting various resistances between the PP and PE conductors, different current capabilities are simulated.
-
Page 17: 8-3-4.Cp Signal Output Terminals
Correlation between resistance, vehicle state and CP voltage signal Marking Resistance Voltage at CP of Vehicle Vehicle State between CP terminal (1kHz) State and PE Electric vehicle (EV) not ∞ Open ( ±12V connected Electric vehicle(EV) 2.7k Ω connected,not ready to +9V/-12V charge Electric vehicle (EV) - Page 18 8-3-5.CP Error “E” Simulation • The CP Error "E" button can be pressed to simulate a CP error according to IEC/EN 61851-1. • When the CP error "E" button is pushed, a short circuit is created between CP and PE through an internal diode, resulting in the termination of the ongoing charging process.
-
Page 19: Maintenance
8-3-9.Measuring Terminals L1, L2, L3, N and PE • The measuring terminals are directly linked to the L1, L2, L3, N, and PE conductors of the tested charging station through the test cable. • These terminals may only be utilized for measurement purposes, and it is not permissible to draw current over an extended period or supply any other electrical loads. -
Page 20: 9-3.Fuse Replacement
9-3.Fuse Replacement • The fuse (10A (H)/250V, 5x20mm) may blow if there is no voltage between the L and N terminals of the mains socket while the charging connector is connected to the charging station in charging mode. • If a fuse blows due to overload or improper operation, follow these steps for replacement: •... -
Page 21: Specifications
Specifications Functions PE Pre-Test PP Simulation NC/13A/20A/32A/63A A(Electric vehicle not connected) CP States B(Electric vehicle connected, not ready to charge) C(Electric vehicle connected,ventilation not required,ready to charge) D(Electric vehicle connected,ventilation required,ready to charge) CP Error “E” On/Off PE Error (Earth Fault) On/Off Outputs (for test purpose only) Measuring... - Page 22 General Features Input Voltage Up to 250V(Single phase system)/up to 430V(Three phase system), 50/60Hz, max 10A. AC charging mode 3,suitable to Type 2 Test Cable IEC62196-2 type 2 socket outlet or fixed cable with vehicle connector (Type 2, 7P three-phase). Weight 450 gr.
-
Page 23: Assistance
Assistance 11.1 WARRANTY CONDITIONS This instrument is warranted against defects in materials and workmanship, in accordance with the general terms and conditions. During the warranty period, defective parts can be replaced, but the manufacturer reserves the right to repair or replace the product. If the instrument is to be returned to the after - sales service or to a dealer transportation is borne by the customer. -
Page 24: Assistance
instruction manual. The content of this manual may not be reproduced in any form without the permission of the manufacturer. Our products are patented and their trademarks. The manufacturer reserves the right to change specifications and prices if this is due to technological improvements 11.2 ASSISTANCE If the instrument does not operate properly, before contacting the... - Page 28 Uniks Srl Via Vittori 57 48018 Faenza (RA), Italy 0546.623002 0546.623691...
