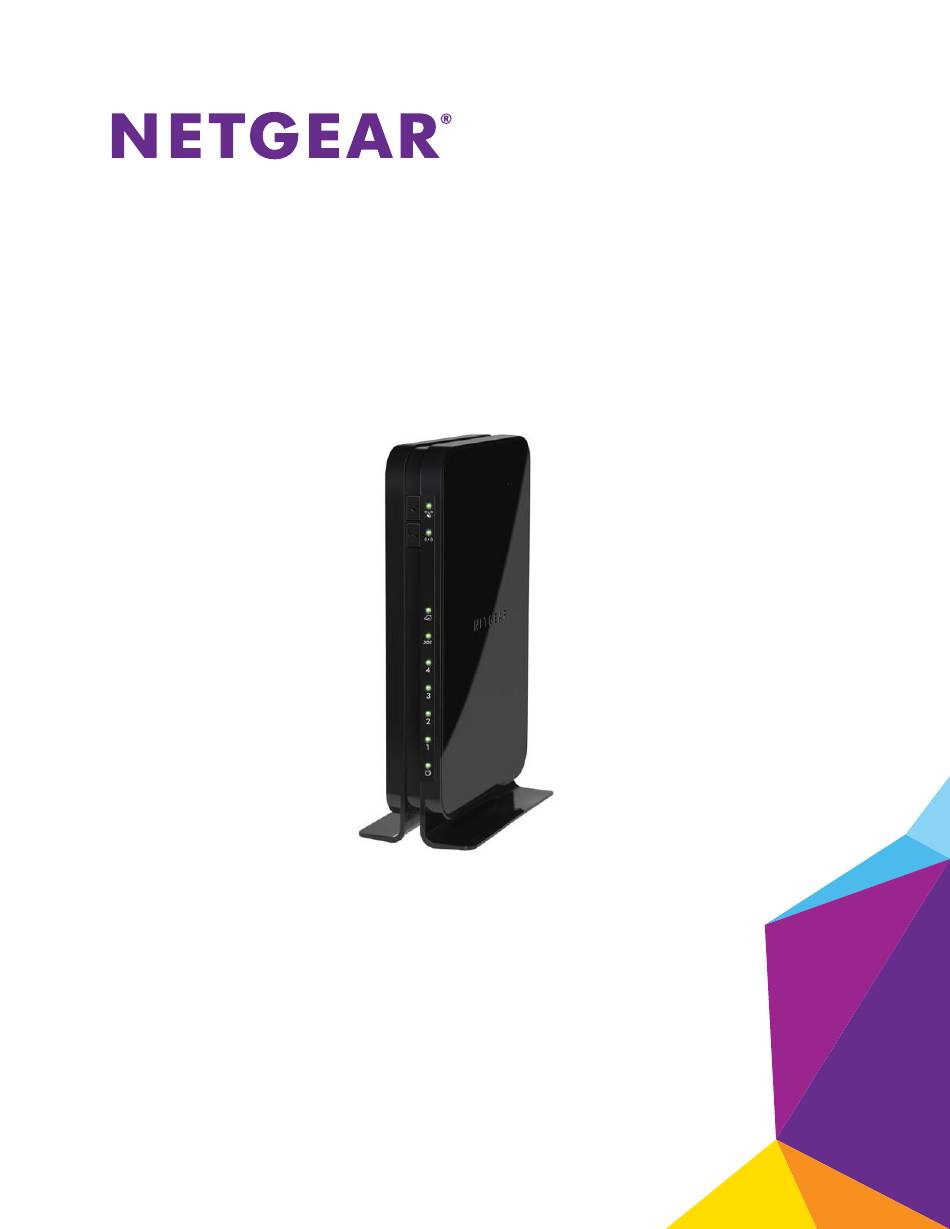

- Page 1 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Us er Manual August 2013 202-11326-01 350 East Plumeria Drive San Jose, CA 95134...
- Page 2 Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved.
-
Page 3: Table Of Contents
NETGEAR genie Setup ........ - Page 4 Chapter 4 NETGEAR genie ADVANCED Home NETGEAR genie ADVANCED Home Screen ..... . 47 Internet Connection Setup Wizard ....... 47 Setup Menu .
- Page 5 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Manage the Configuration File ........90 Back Up Settings .
- Page 6 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Chapter 8 Troubleshooting Quick Tips ..........139 Sequence to Restart Your Network .
-
Page 7: Chapter 1 Hardware Setup
G e t t o kn o w y o u r m o de m r outer The NETGEAR® N150 Wireless ADSL2+ Modem Router DGN1000Bv3, going forward in this manual referred to as the modem router, provides an easy and secure way to set up a wireless home network with fast access to the Internet. -
Page 8: Unpack Your Modem Router
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Unpack Your Modem Router Your box contains the items that are shown in the following figure. An installation guide and documentation CD are also included. In the unlikely event that any parts are incorrect, missing, or damaged, contact your NETGEAR dealer. -
Page 9: Hardware Features
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Hardware Features Before you cable your modem router, take a moment to become familiar with the front panel, back panel, and label. Pay particular attention to the LEDs on the front panel. Front Panel The modem router front panel has the status LEDs that are shown in the following figure. - Page 10 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The following table describes the buttons and LEDs on the front panel. Table 1. Front panel buttons and LEDs Button Description Pressing the WPS button lets you use Wi-Fi Protected Setup (WPS) to join the...
-
Page 11: Back Panel
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Back Panel The back panel has the buttons and port connections as shown in the following figure. ADSL port Ethernet LAN ports Power adapter input On/Off button Figure 3. Back panel connections and buttons... -
Page 12: Side Panel With Restore Factory Settings Button
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Side Panel with Restore Factory Settings Button You can return the modem router to its factory settings. On the right panel of the modem router, use the end of a paper clip or some other similar object to press and hold the Restore Factory Settings button for at least seven seconds. -
Page 13: Bottom Panel
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Bottom Panel The label on the bottom panel of the modem router shows the preset login information, MAC address, and serial number. Password MAC address Serial number WiFi network name Figure 5. Label on the bottom panel of the modem router... -
Page 14: Plug-To-Wan Jack Adapter And Adsl Microfilters
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Plug-to-WAN Jack Adapter and ADSL Microfilters If this is the first time you have cabled a modem router between a DSL phone line and your computer or laptop, you might not be familiar with ADSL microfilters. If you are, you can skip... -
Page 15: Two-Line Adsl Microfilter
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Two-Line ADSL Microfilter Use an ADSL microfilter with a built-in splitter if you have a single wall outlet that provides connectivity for both the modem router and your telephone equipment. Plug the ADSL microfilter into the wall outlet, plug your phone equipment into the jack labeled Phone, and plug the modem router into the jack labeled ADSL. -
Page 16: Chapter 2 Getting Started
C on ne c t t o t h e mo de m r out e r This chapter explains how to use NETGEAR genie® to set up your modem router after you complete cabling as described in the installation guide and in the previous chapter. -
Page 17: Modem Router Setup Preparation
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Modem Router Setup Preparation You can set up your modem router with the NETGEAR genie automatically, or you can use the genie menus and screens to set up your modem router manually. Before you start the setup process, get your ISP information and make sure the computers and devices in the network have the settings described here. -
Page 18: Netgear Genie Setup
NETGEAR genie screen displays. • If you already used the NETGEAR genie, type http://www.routerlogin.net in the address field for your browser to display the NETGEAR genie screen. See NETGEAR genie after Installation on page 19. -
Page 19: Use Netgear Genie After Installation
NETGEAR technical support. Use NETGEAR genie after Installation When you first set up your modem router, NETGEAR genie automatically starts when you launch an Internet browser on a computer that is connected to the modem router. If you want to view or change settings for the modem router, you can use genie again. -
Page 20: Dashboard (Basic Home Screen)
Settings. You need a solid understanding of networking to use this tab. • Help & Support. Go to the NETGEAR support site to get information, help, and product documentation. These links work after you have an Internet connection. Getting Started... -
Page 21: Join Your Wireless Network
Wi-Fi Protected Setup (WPS) lets you connect to a secure WiFi network without typing its password. Instead, press a button or enter a PIN. NETGEAR calls WPS Push 'N' Connect. Some older WiFi equipment is not compatible with WPS. WPS works only with WPA2 or WPA wireless security. -
Page 22: Netgear Genie App And Mobile Genie App
NETGEAR genie App and Mobile genie App The genie app is the easy dashboard for managing, monitoring, and repairing your home network. See the NETGEAR genie App User Manual for details about the genie apps. Retrieve wireless password About genie... -
Page 23: Chapter 3 Netgear Genie Basic Settings
NETGEAR genie Basic Settings Yo ur I n t e r n et c o nn e c t ion an d Wi F i n e t wo r k This chapter contains the following sections: • Internet Setup •... -
Page 24: Internet Setup
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Internet Setup NETGEAR recommends that you use the Setup Wizard to detect the Internet connection and automatically set up the modem router (see Internet Connection Setup Wizard on page 47). You can view or change the basic ISP information on the Internet Setup screen. -
Page 25: Internet Setup Screen Fields: No Login Required
Click the Apply button. Your settings are saved. To test your Internet connection, click the Test button. If the NETGEAR website does not display within one minute, see Chapter 8, Troubleshooting. The following sections describe all of the possible fields on the Internet Setup screen. -
Page 26: Internet Setup Screen Fields: Login Required
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 • Use Static IP Address. Enter the IP address, IP subnet mask, and the gateway IP address that your ISP assigned. The gateway is the ISP’s modem router to which your modem router connects. - Page 27 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Internet IP Address. • Get Dynamically from ISP. T-Online uses DHCP to assign your IP address. T-Online automatically assigns these addresses. • Use Static IP Address. Enter the static IP address that T-Online provides.
- Page 28 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Encapsulation is PPPoE and Your ISP is Other These fields display only when you select PPPoE from the Encapsulation menu and the Other radio button. Figure 14. Internet Setup screen: fields that are specific to the Other selection •...
- Page 29 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Encapsulation is PPPoA These fields display only when you select PPPoA from the Encapsulation menu. You cannot select an ISP radio button with the PPPoA selection. Figure 15. Internet Setup screen: fields that are specific to PPPoA encapsulation •...
-
Page 30: Internet Setup Screen Fields: Fields That Display
Enable. NAT is enabled. This is the default setting. • Disable. NAT is disabled. xDSL Setup NETGEAR recommends that you use the Setup Wizard to detect the DSL connection and automatically set up the modem router (see Internet Connection Setup Wizard on page 47). -
Page 31: Configure Regular Internet Service
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Configure Regular Internet Service The modem router uses interface WAN1 for regular Internet service. To configure the DLS setup for regular Internet service: Select BASIC > xDSL Setup. The selection from the Physical WAN Type menu is fixed at ADSL2+. -
Page 32: Configure Iptv Service
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The default setting is 38. Depending on your configuration, either disable or configure and enable the VLAN: • If you do not use interface WAN2 for IPTV service, clear the Use VLANID check box. - Page 33 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 From the WAN menu, select WAN2. Interface WAN2 is used for IPTV only. The screen adjusts. The Multiplexing Method menu becomes unavailable and the default VLAN ID changes to 8, but the Use VLANID check box remains cleared.
-
Page 34: Parental Controls
To set up Live Parental Controls: Select Parental Controls on the dashboard screen. Click either the Windows Users or Mac Users button. Follow the onscreen instructions to download and install the NETGEAR Live Parental Controls Management utility. After installation, Live Parental Controls automatically starts. - Page 35 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Click the Next button, read the note, and click the Next button again to proceed. Because Live Parental Controls uses free OpenDNS accounts, you are prompted to log in or create a free account.
-
Page 36: Basic Wireless Settings
Note: The preset SSID and password are uniquely generated for every device to protect and maximize your wireless security. NETGEAR recommends that you do not change your preset security settings. If you change your preset security settings, make a note of the new settings and store it in a safe place where you can easily find it. - Page 37 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To view or change basic wireless settings: Select BASIC > Wireless. The screen sections, settings, and procedures are explained in the following sections. Change the settings as needed. Click the Apply button. Your settings are saved.
-
Page 38: Wireless Settings Screen Fields
Security Options. The modem router comes with unique preset wireless security. These settings are on the product label. NETGEAR recommends that you use preset security so that you can refer to the label if you forget the WiFi password. However, you can change the security option and passphrase. -
Page 39: Security Options: Wpa-Psk, Wpa2-Psk, And Wpa-Psk + Wpa2-Psk Mixed Mode
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Security Options: WPA-PSK, WPA2-PSK, and WPA-PSK + WPA2-PSK Mixed Mode WPA encryption is built into all hardware that has the Wi-Fi-certified seal. This seal means that the product is authorized by the Wi-Fi Alliance (http://www.wi-fi.org/) because it complies with the worldwide single standard for high-speed wireless local area networking. -
Page 40: Security Options: Wpa/Wpa2 Enterprise
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The passphrase is a text string from 8 to 63 ASCII characters or exactly 64 hexadecimal digits. A hexadecimal digit is one of the following characters: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F (uppercase or lowercase). -
Page 41: Security Options: Wep
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Select the WPA mode: • WPA [TKIP] • WPA2 [AES] • WPA [TKIP] + WPA2 [AES] Type the IP address of the RADIUS server. The address can be on your LAN or it can be an external address. - Page 42 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 From the Authentication Type menu, select one of the following types: • Shared Key. Clients can use only shared key authentication. • Automatic. Client can use either open system or shared key authentication. From the Encryption Strength menu, select the encryption key size: •...
-
Page 43: Set Up A Guest Network
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Set Up a Guest Network Adding a guest network allows visitors at your home to use the Internet without using your wireless security key. You can set up to three guest networks, all of which can be active at a same time. -
Page 44: View Attached Devices
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 (Optional) Change the name of the guest network. The default names are NETGEAR-Guest1, NETGEAR-Guest2, and NETGEAR-Guest3. The guest network name is case-sensitive and can be up to 32 characters. You then manually configure the wireless devices in your network to use the guest network name in addition to the main SSID. - Page 45 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 • MAC Address. The unique MAC address for each device does not change. The MAC address is typically shown on the product label. • Device Name. If the device name is known, it is shown here.
-
Page 46: Chapter 4 Netgear Genie Advanced Home
NETGEAR genie ADVANCED Home S p ec if y cu s t o m s e t t ings This chapter contains the following sections: • NETGEAR genie ADVANCED Home Screen • Internet Connection Setup Wizard • WAN Setup •... -
Page 47: Netgear Genie Advanced Home Screen
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 NETGEAR genie ADVANCED Home Screen The genie ADVANCED Home dashboard presents status information. The content is the same as what is on the Router Status screen available from the Administration menu. For more information about the fields on the screen, see View Router Status on page 82. -
Page 48: Setup Menu
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To use the Setup Wizard: Select ADVANCED > Setup Wizard. From the Country menu, select your location. Note: If you have purchased the modem router in the US, you cannot change the country, and the selection is fixed at the US. -
Page 49: Wan Setup
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 • Wireless Setup. This is a shortcut to the same Wireless Settings screen that you can access from the dashboard on the BASIC Home screen. For information, see Basic Wireless Settings on page 36. - Page 50 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 • Default DMZ Server. This feature is sometimes helpful when you are playing online games or videoconferencing. Be careful when using this feature because it makes the firewall security less effective. For more information, see the following section, Default Server.
-
Page 51: Default Dmz Server
“fragmented” to accommodate the device with the smallest MTU. The best MTU setting for NETGEAR equipment is often just the default value. In some situations, changing the value fixes one problem but causes another. Leave the MTU unchanged unless one of these situations occurs: •... - Page 52 Table 2. Common MTU sizes Application 1500 The largest Ethernet packet size. This setting is typical for connections that do not use PPPoE or VPN, and is the default value for NETGEAR modem routers, adapters, and switches. 1492 Used in PPPoE environments. 1472 Maximum size to use for pinging.
-
Page 53: Lan Setup
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 LAN Setup The LAN Setup screen allows configuration of LAN IP services such as Dynamic Host Configuration Protocol (DHCP) and Routing Information Protocol (RIP). The modem router is shipped preconfigured to use private IP addresses on the LAN side and to act as a DHCP server. -
Page 54: Lan Setup Screen Settings
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 LAN Setup Screen Settings The following settings are available. Device Name By default, the device name is DGN1000Bv3, which is the modem router model. You can change the device name to another name. LAN TCP/IP Setup •... -
Page 55: Specify Dhcp Server Settings
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 For more information, see Set Up Address Reservation on page 56. Specify DHCP Server Settings By default, the modem router functions as a DHCP server. The modem router assigns IP, DNS server, and default gateway addresses to all computers connected to the LAN. The assigned default gateway address is the LAN address of the modem router. -
Page 56: Set Up Address Reservation
When you specify a reserved IP address for a computer on the LAN, that computer always receives the same IP address each time it accesses the modem router’s DHCP server. NETGEAR recommends that you assign a reserved IP address to a computer or server that requires permanent IP settings. -
Page 57: Wps Wizard For Wifi Connections
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The reserved address is entered into the Address Reservation Table on the LAN Setup screen. The reserved address is not assigned until the next time the computer contacts the modem router’s DHCP server. Reboot the computer, or access its IP configuration and force a DHCP release and renew. - Page 58 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The following screen lets you select the method for adding the WPS client (a wireless device or computer). Select the radio button for the setup method that you want to use, and follow the steps.
-
Page 59: Qos Setup
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 QoS Setup Quality of Service (QoS) is an advanced feature that can be used to prioritize some types of traffic ahead of others. The modem router can provide QoS prioritization over the wireless link and on the Internet connection. You use the QoS Setup screen to set up QoS features. -
Page 60: Quality Of Service Priority Rules And Internet Access
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Quality of Service Priority Rules and Internet Access You can give prioritized Internet access to the following types of traffic: • Specific applications • Specific online games • Individual Ethernet LAN ports of the modem router •... - Page 61 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Click the Setup QoS rule button. All preconfigured QoS rules are displayed in a table, along with their priority (Highest, High, Normal, or Low) and a description: Select the radio button next to the QoS policy that you want to view or change.
- Page 62 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Your changes are saved in the table on the QoS Setup screen. To delete a QoS rule: Select ADVANCED > Setup > QoS Setup. The QoS Setup screen displays. Click the Setup QoS rule button.
- Page 63 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The screen adjusts: • On-line gaming. The On-line gaming menu lets you select existing games, but scroll down to the bottom of the menu to select Add a new game. The screen adjusts: In the QoS Policy for field, type a descriptive name for the new application or game.
- Page 64 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Create a QoS Rule for a Modem Router LAN Port To create a QoS policy for a device connected to one of the modem router’s LAN ports: Select ADVANCED > Setup > QoS Setup.
- Page 65 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 From the Priority Category menu, select MAC Address. The screen adjusts: In the QoS Policy for field, type a descriptive name for the new policy. If the device for which you want to create a QoS policy is displayed in the MAC Device List, select its radio button.
- Page 66 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Select the radio button next to the device that you want to change. Change the MAC address, device name, or priority. Click the Edit button. Note: You cannot edit a device that was detected by the modem router and automatically added to the MAC Device List.
-
Page 67: Bandwidth Control
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Bandwidth Control Bandwidth control lets you set a limit to the bandwidth that is available for traffic from the modem router to the Internet. To set the maximum uplink bandwidth: Select ADVANCED > Setup > QoS Setup. -
Page 68: Chapter 5 Security
Security Ke ep u nwa nted c ontent out of your net work This chapter explains how to use the basic firewall features of the modem router to prevent objectionable content from reaching the computers and devices on your network. This chapter includes the following sections: •... -
Page 69: Keyword Blocking Of Http Traffic
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Keyword Blocking of HTTP Traffic Use keyword blocking to prevent certain types of HTTP traffic from accessing your network. By default, keyword blocking is disabled. The blocking can be always or according to a schedule. -
Page 70: Set Up Firewall Rules To Control Network Access
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Click the Apply button. Your settings are saved. To delete a keyword or domain: Select ADVANCED > Security > Block Sites. The Block Sites screen displays. From the keyword list, select the keyword or domain that you want to remove. -
Page 71: Manage Outbound Firewall Rules
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 You can add rules to further restrict the outbound communications or more widely open the inbound communications. Exceptions can be based on the service or application, source or destination IP addresses, and time of day. You can log traffic that matches or does not match the rule and change the order of rule precedence. - Page 72 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 In the Outbound Services section, click the Add button. Select the service or application to be covered by this rule. If the service or application that you want does not display in the menu, you can define it...
- Page 73 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 • Single address. Type the required address in the Start field. • Address range. Type the start address for the range in the Start field and the end address for the range in the End field.
-
Page 74: Manage Inbound Firewall Rules
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Click the Delete button. The firewall rule is removed from the Outbound Services table on the Firewall Rules screen. Manage Inbound Firewall Rules By default, the firewall blocks all access from outside except responses to requests from the LAN side. - Page 75 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 In the Service Table section, click the Add Custom Service button. In the Service Type/User Defined field, type a suitable name for the new service or application. From the Protocol menu, select the correct type of protocol for the new service: •...
-
Page 76: Schedule When To Block The Internet
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 In the Service Table, select the radio button to the left of the service that you want to remove. Click the Delete Service button. The custom service is removed from the Service Table on the Firewall Rules screen. -
Page 77: Security Event Email Notifications
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Click the Apply button. Your settings are saved. Security Event Email Notifications To receive logs and alerts by email, provide your email information in the E-mail screen, and specify which alerts you want to receive and how often. - Page 78 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 (Optional) Select when logs are sent automatically: a. Select an option from the menu: • When log is full • Hourly • Daily • Weekly • None b. If you select Daily or Weekly, select the time from the menu, and select the a.m. or p.m.
-
Page 79: Chapter 6 Administration
Administration M a na g e yo u r n e t wo r k This chapter describes the modem router settings for administering and maintaining your modem router and home network. This chapter includes the following sections: • Update the Modem Router Firmware •... -
Page 80: Update The Modem Router Firmware
The modem router locates the firmware that you downloaded and begins the update. The firmware file ends in .img. (Optional) If you have manually downloaded new firmware from the NETGEAR support website: a. Click the Browse button, navigate to the firmware file (the file ends in .img), and select the firmware file. - Page 81 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To download new firmware manually and update your modem router: Visit downloadcenter.netgear.com, locate the DGN1000Bv3 support page, and download the new firmware. Read the new firmware release notes to determine whether you must reconfigure the modem router after upgrading.
-
Page 82: View Router Status
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 View Router Status To view modem router status and usage information: Depending on the screen that you have open, select ADVANCED or ADVANCED Home: Administration... -
Page 83: Router Information
IP Subnet Mask. The IP subnet mask used by the Internet (WAN) port of the modem router. • Domain Name Server. The Domain Name Server addresses used by the modem router. A Domain Name Server translates human-language URLs such as www.netgear.com into IP addresses. Administration... -
Page 84: Statistics Screen
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Statistics Screen To view statistics: Depending on the screen that you have open, select ADVANCED or ADVANCED Home. In the Internet Port pane, click the Show Statistics button. The following information is displayed: •... -
Page 85: Modem
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 In the Internet Port pane, click the Connection Status button. The following information displays: • Connection Time. The time elapsed since the last connection to the Internet through the DSL port. • Connection Status. Connected or disconnected. - Page 86 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To view the modem statistics: Click the Modem Statistics button. The information that is displayed on this screen is not described in this manual. This information is typically used by NETGEAR support. ...
-
Page 87: Wireless Settings
Name (SSID). The wireless network name (SSID) used by the modem router for the guest network. The default names are NETGEAR-Guest1, NETGEAR-Guest2, and NETGEAR-Guest3. If all guest networks are active at the same time, the screen shows only NETGEAR-Guest1. •... - Page 88 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 You can specify which types of actions and events are logged, and how the system logs are sent. By default, all actions and events are logged, and the system logs are not sent anywhere.
-
Page 89: Change Which Actions And Events Are Logged
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To refresh the log screen: Click the Refresh button. To clear the log entries: Click the Clear Log button. To email the log immediately: Click the Send Log button. Note: To send and receive emails, make sure that you have set up and... -
Page 90: Set Up How The System Logs Are Sent
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Set Up How the System Logs Are Sent By default, no system logs (syslogs) are sent. Before you set up where the system logs are sent, set up when system logs are sent and enable email notification (see... -
Page 91: Restore Configuration Settings
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Restore Configuration Settings To restore configuration settings that you backed up: Select ADVANCED > Administration > Backup Settings. The Backup Settings screen displays. Click the Browse button. Locate and select the .cfg file. -
Page 92: Password Recovery
Your settings are saved. Password Recovery NETGEAR recommends that you enable password recovery if you change the password for the user name admin. Then you can recover the password if it is forgotten. This recovery is supported in Internet Explorer, Firefox, and Chrome browsers, but not in the Safari browser. -
Page 93: Perform Diagnostics
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The screen adjusts: From the lists, select two security questions, and provide answers to them. Click the Apply button. Your settings are saved. To recover your password: In the address field of your browser, type www.routerlogin.net. - Page 94 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To perform diagnostic tests: Select ADVANCED > Administration > Diagnostics. (Optional) Ping an IP address or host name: a. Type an IP address or host name in the field. b. Click the Ping button.
- Page 95 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To reboot the modem router: Select ADVANCED > Administration > Diagnostics. The Diagnostics screen displays. Click the Reboot button. Administration...
-
Page 96: Chapter 7 Advanced Settings
Advanced Settings S e t up u n iq ue s it ua t ions This chapter describes the advanced features of your modem router. Networking knowledge is needed to implement some of these features. This chapter includes the following sections: •... -
Page 97: Advanced Wireless Settings
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Advanced Wireless Settings You can use this screen to turn the wireless radio on and off, to configure advanced wireless settings, to specify WPS settings, to use AP mode, and to set up a wireless access list. -
Page 98: Set Up A Wireless Schedule
Reducing the transmit power can save the power consumption for the modem router but also reduces the wireless coverage. If you want to have maximum wireless coverage, NETGEAR recommends that you leave the setting on the Transmit Power Control menu at 100%. - Page 99 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The screen adjusts: Use the menus, radio buttons, and check boxes to set up a period during which you want the wireless signal to be turned off. The Start and End menus use 24-hour clock settings. Setting up a schedule is self-explanatory.
-
Page 100: View Or Change Wps Settings
The wireless schedule is removed from the table on the Advanced Wireless Settings screen. View or Change WPS Settings You can control how WPS functions on the modem router. NETGEAR recommends that you use caution if you change the WPS settings. Note:... -
Page 101: Set Up A Wireless Access List By Mac Address
PIN is turned on. (Optional) Clear the Keep Existing Wireless Settings check box. By default, the Keep Existing Wireless Settings check box is selected. NETGEAR recommends that you leave this check box selected. However, when the check box is selected, some applications such as Network Explorer in Windows Vista might not detect the modem router. - Page 102 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To restrict access based on MAC addresses: Select ADVANCED > Advanced Setup > Wireless Settings. Click the Set Up Access List button. Click the Add button. In the Device Name field, type a name for the wireless device.
-
Page 103: Wireless Distribution System
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Click the Edit button. The Edit Wireless Card screen displays. Change the settings. Click the Accept button. The changed settings are shown in the table on the Wireless Card Access List screen. To delete a wireless device from the access list: Select ADVANCED >... -
Page 104: Set Up The Base Station
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The modem router can function either as a base station or as a repeater: • Wireless base station. The modem router acts as the parent access point, bridging traffic to and from the child repeater access point, as well as handling wireless and wired local computers. -
Page 105: Set Up A Repeater
Note: If you set up the modem router as a base station with a non-NETGEAR access point as the repeater, you might need to change additional configuration settings. In particular, you should disable the DHCP server function on the access point that functions as the repeater. - Page 106 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To configure the modem router as a repeater: Select ADVANCED > Advanced Setup > Wireless Repeating Function. The Wireless Repeating Function screen displays. The wireless MAC address of the modem router is displayed onscreen.
-
Page 107: Port Forwarding And Port Triggering
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Port Forwarding and Port Triggering By default, the modem router blocks inbound traffic from the Internet to your computers except replies to your outbound traffic. You might need to create exceptions to this rule for these purposes: •... -
Page 108: Port Triggering To Open Incoming Ports
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Your modem router then sends this request message through the Internet to the web server at www.example.com. The web server at www.example.com composes a return message with the requested web page data. The return message contains the following address and port information. The web server then sends this reply message to your modem router: •... -
Page 109: Port Forwarding To Permit External Host Communications
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 stores the original information, performs Network Address Translation (NAT) on the source address and port, and sends this request message through the Internet to the IRC server. Noting your port triggering rule and having observed the destination port number of 6667, your modem router creates an additional session entry to send any incoming port 113 traffic to your computer. -
Page 110: How Port Forwarding Differs From Port Triggering
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The following sequence shows the effects of the port forwarding rule you have defined: The user of a remote computer opens a browser and requests a web page from www.example.com, which resolves to the public IP address of your modem router. The... -
Page 111: Set Up Port Forwarding To Local Servers
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Set Up Port Forwarding to Local Servers The port forwarding feature lets you allow certain types of incoming traffic to reach servers on your local network. For example, you might want to make a local web server, FTP server, or game server visible and available to the Internet. -
Page 112: Manage Custom Services For Port Forwarding
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Manage Custom Services for Port Forwarding Before you define a service, game, or application that does not display in the Service Name menu on the Port Forwarding / Port Triggering screen, first determine which port number or range of numbers the application uses. - Page 113 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Specify the internal ports by one of these methods: • Leave the Use the same port range for Internal port check box selected. • Fill in the Internal Starting Port. Note: The Internal Ending Port field is masked out because the ending port number is calculated automatically by using the same range as the external port range.
-
Page 114: Application Example: Make A Local Web Server Public
Note: If you use applications such as multiplayer gaming, peer-to-peer connections, real-time communications such as instant messaging, or remote assistance (a feature in Windows XP), NETGEAR recommends that you also enable Universal Plug and Play (UPnP). For more information, see Universal Plug and Play on page 122. -
Page 115: Manage Port Triggering
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Manage Port Triggering By default, port triggering is enabled with a time-out period of 20 minutes. The time-out value controls the inactivity timer for the designated inbound ports. The inbound ports close when the inactivity time expires. This is required because the modem router cannot detect when the application has terminated. -
Page 116: Manage Port Triggering Services
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Manage Port Triggering Services To configure port triggering services, you must know which inbound ports the application needs, and the number of the outbound port that will trigger the opening of the inbound ports. - Page 117 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Note: If you are not sure which protocol to select, select TCP/UDP. In the Starting Port field, enter the starting port number for the inbound connection. In the Ending Port field, enter the ending port number for the inbound connection.
-
Page 118: Dynamic Dns
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The service is removed from the Port Triggering Portmap Table on the Port Forwarding / Port Triggering screen. Dynamic DNS If your Internet service provider (ISP) gave you a permanently assigned (fixed) IP address, you can register a domain name and have that name linked with your IP address by public Domain Name Servers (DNS). -
Page 119: Static Routes
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 This is the name that you use to log in to your account, not your host name. In the Password field, type the password or key for your Dynamic DNS account. Click the Apply button. - Page 120 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Click the Add button. In the Route Name field, type a name for this static route. This name is for identification purposes only. (Optional) To limit access to the LAN only, select the Private check box.
-
Page 121: Remote Management
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To remove a static route: Select ADVANCED > Advanced Setup > Static Routes. The Static Routes screen displays. In the table, select the radio button to the left of the route that you want to remove. -
Page 122: Universal Plug And Play
UPnP devices can automatically discover the services from other registered UPnP devices on the network. If you use applications such as multiplayer gaming, peer-to-peer connections, or real-time communications such as instant messaging or remote assistance, NETGEAR recommends that you enable UPnP. ... -
Page 123: Ipv6
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 By default, this check box is selected. You can disable UPnP for automatic device configuration. If you clear the Turn UPnP On check box, the modem router does not allow any device to automatically control the resources, such as port forwarding (mapping), of the modem router. -
Page 124: Requirements For Entering Ipv6 Addresses
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 • If your ISP did not provide details, you can select 6to4 Tunnel. • If you are not sure what type of IPv6 connection the modem router uses, select Auto Detect so that the modem router detects the IPv6 type that is in use. - Page 125 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The screen adjusts: The modem router automatically detects the information in the following fields: • Connection Type. This field indicates the connection type that is detected. • Router’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired for the modem router’s WAN (or Internet) interface.
-
Page 126: Ipv6 Auto Config
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Specify the IPv6 filtering mode by selecting one of the following radio buttons: • Secured. In the secured mode, which is the default mode, the modem router inspects both TCP and UDP packets. •... -
Page 127: Ipv6 6To4 Tunnel
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 (Optional) In the DHCP User Class (If Required) field, enter a host name. If your ISP has given you a specific host name, enter it here. Otherwise, leave this field blank. (Optional) In the DHCP Domain Name (If Required) field, enter a domain name. - Page 128 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The screen adjusts: The modem router automatically detects the information in the following field: • Router’s IPv6 Address on LAN1. This field shows the IPv6 address that is acquired for the modem router’s LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address.
-
Page 129: Ipv6 Pass Through
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Specify the IPv6 filtering mode by selecting one of the following radio buttons: • Secured. In the secured mode, which is the default mode, the modem router inspects both TCP and UDP packets. •... - Page 130 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The screen adjusts: Configure the fixed IPv6 addresses for the WAN connection: • IPv6 Address/Prefix Length. The IPv6 address and prefix length of the modem router WAN interface. • Default IPv6 Gateway. The IPv6 address of the default IPv6 gateway, which is supposed to be on the modem router’s WAN interface.
-
Page 131: Ipv6 Dhcp
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 If you do not specify an ID here, the modem router generates the address and prefix length automatically from its MAC address. Specify the IPv6 filtering mode by selecting one of the following radio buttons: •... -
Page 132: Ipv6 Pppoe
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 the prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available. (Optional) In the User Class (If Required) field, enter a host name. - Page 133 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 The screen adjusts: The modem router automatically detects the information in the following fields: • Router’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired for the modem router’s WAN (or Internet) interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address.
-
Page 134: Traffic Meter
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Note: The default setting of the Connection Mode field is Always On to provide a steady IPv6 connection. The modem router never terminates the connection. If the connection is terminated, for example, when the modem is turned off, the modem router attempts to reestablish the connection immediately after the PPPoE connection becomes available again. - Page 135 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To monitor Internet traffic: Click ADVANCED > Advanced Setup > Traffic Meter. Select the Enable Traffic Meter check box. By default, there is no traffic limit and the traffic volume is not controlled.
-
Page 136: Restricting Internet Traffic By Volume
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 To display more information about the data traffic on your modem router and to change the poll interval: Click the Traffic Status button. Restricting Internet Traffic by Volume You can record and restrict the traffic by volume in MB. This is useful when your ISP measures your traffic in volume. -
Page 137: Restricting Internet Traffic By Connection Time
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Restricting Internet Traffic by Connection Time You can record and restrict the traffic in connection time. This is useful when your ISP measures your connection time. To record and restrict the volume of Internet traffic by volume: Click ADVANCED >... -
Page 138: Chapter 8 Troubleshooting
G et h e lp wit h p r ob le ms This chapter provides information to help you diagnose and solve problems you might have with your modem router. If you do not find the solution here, check the NETGEAR support site at http://support.netgear.com for product and contact information. -
Page 139: Quick Tips
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Quick Tips This section describes tips for troubleshooting some common problems. Sequence to Restart Your Network If you need to restart your network, follow this sequence: Turn off and unplug the modem router. Plug in the modem router and turn it on. -
Page 140: Troubleshoot With The Leds
• Check that you are using the 12 VDC 1A power adapter supplied by NETGEAR for this product. If the error persists, you might have a hardware problem. For recovery instructions, or help with a hardware problem, contact technical support at www.netgear.com/support. -
Page 141: Power Led Is Blinking
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Power LED Is Blinking If the Power LED blinks slowly and continuously, the firmware of the modem router is corrupted. This can occur if a firmware update is interrupted, or if the modem router detects a problem with the firmware. -
Page 142: Troubleshoot The Internet Connection
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 • If your modem router’s IP address was changed and you do not know the current IP address, clear the modem router’s configuration to factory defaults. This sets the modem router’s IP address to 192.168.0.1. This procedure is explained in... -
Page 143: Internet Led Is Red
To check the WAN IP address: Launch your browser, and select an external site such as www.netgear.com. Access the main menu of the modem router’s at http://www.routerlogin.net. Select Administration > Router Status. -
Page 144: Troubleshoot Pppoe Or Pppoa
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Troubleshoot PPPoE or PPPoA To verify if your PPPoE or PPPoA connection is working: Select ADVANCED > Administration > Router Status. The Router Status screen displays. In the Modem pane, check the following: The Modem Status is connected. -
Page 145: Changes Not Saved
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 router, reboot your computer, and verify the DNS address. Alternatively, you can configure your computer manually with DNS addresses, as explained in your operating system documentation. • Your computer might not have the modem router configured as its TCP/IP modem router. -
Page 146: Incorrect Date Or Time
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Incorrect Date or Time The modem router uses the Network Time Protocol (NTP) to obtain the current time from one of several network time servers on the Internet. Each entry in the log is stamped with the date and time of day. -
Page 147: Test The Path From Your Computer To A Remote Device
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 If the path is not working, you see this message: Request timed out If the path is not functioning correctly, you might have one of the following problems: • Wrong physical connections For a wired connection, make sure that the numbered LAN port LED is lit for the port to which you are connected. -
Page 148: Appendix A Supplemental Information
Supplemental Information Vi ew t h e f a ct o r y se t t in gs an d s p e c i f i c a t i o n s This appendix includes the factory default settings and technical specifications for the modem router. -
Page 149: Factory Settings
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Factory Settings You can return the modem router to its factory settings. On the right side panel of the modem router, use the end of a paper clip or some other similar object to press and hold the Restore Factory Settings button for at least seven seconds. - Page 150 N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Table 3. Factory default settings (continued) Feature Default Behavior Wireless Wireless communication Enabled SSID name See the label on the modem router. Security See the label on the modem router. Broadcast SSID Enabled Country/region...
-
Page 151: Technical And Physical Specifications
N150 Wireless ADSL2+ Modem Router DGN1000Bv3 Technical and Physical Specifications Table 4. Technical and physical specifications Specification Description Network protocol and TCP/IP, RIP-1, RIP-2, DHCP, PPPoE or PPPoA, RFC 1483 Bridged or standards compatibility Routed Ethernet, and RFC 1577 Classical IP over ATM... -
Page 152: Appendix B Notification Of Compliance
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Declaration of Conformity We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the N150 Wireless ADSL2+ Modem Router DGN1000Bv3 complies with Part 15 Subpart B of FCC CFR47 Rules. - Page 153 Canadian Department of Communications Radio Interference Regulations This digital apparatus (N150 Wireless ADSL2+ Modem Router DGN1000Bv3) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
- Page 154 Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Interference Reduction Table The table below shows the recommended minimum distance between NETGEAR equipment and household appliances to reduce interference (in feet and meters). Household Appliance...
Need help?
Do you have a question about the DGN1000Bv3 and is the answer not in the manual?
Questions and answers
