HYDAC System GmbH
Technical Documentation
E 2.417.B1/09.12
Plug Amplifier

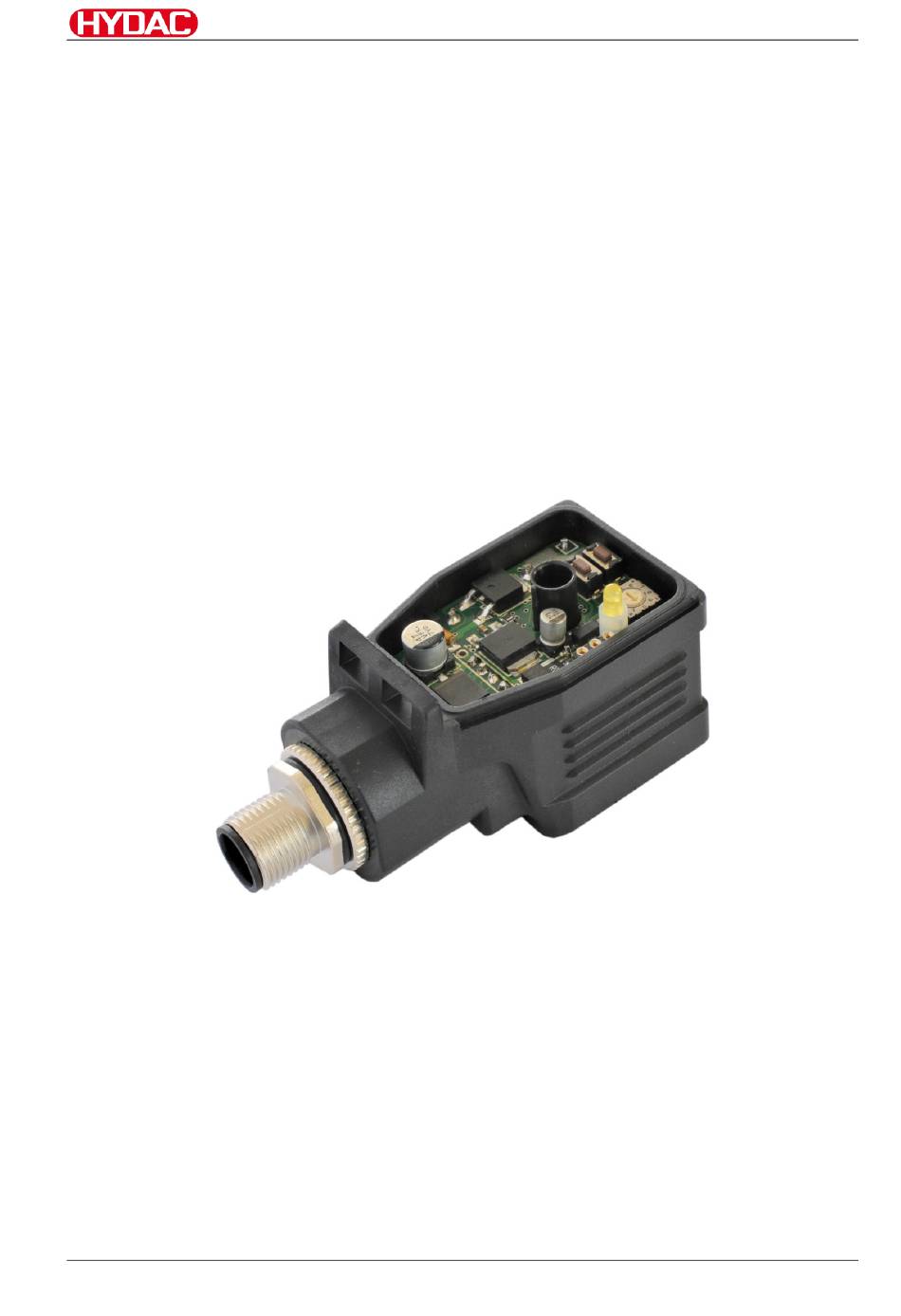

Universal power plug for proportional valves
EHCD-AP011XXXD /
EHCD-AP012XXXD
Copyright © HYDAC System GmbH, 21.09.2012
Note ISO 16016 proprietary notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EHCD-AP011 D Series and is the answer not in the manual?

Questions and answers
