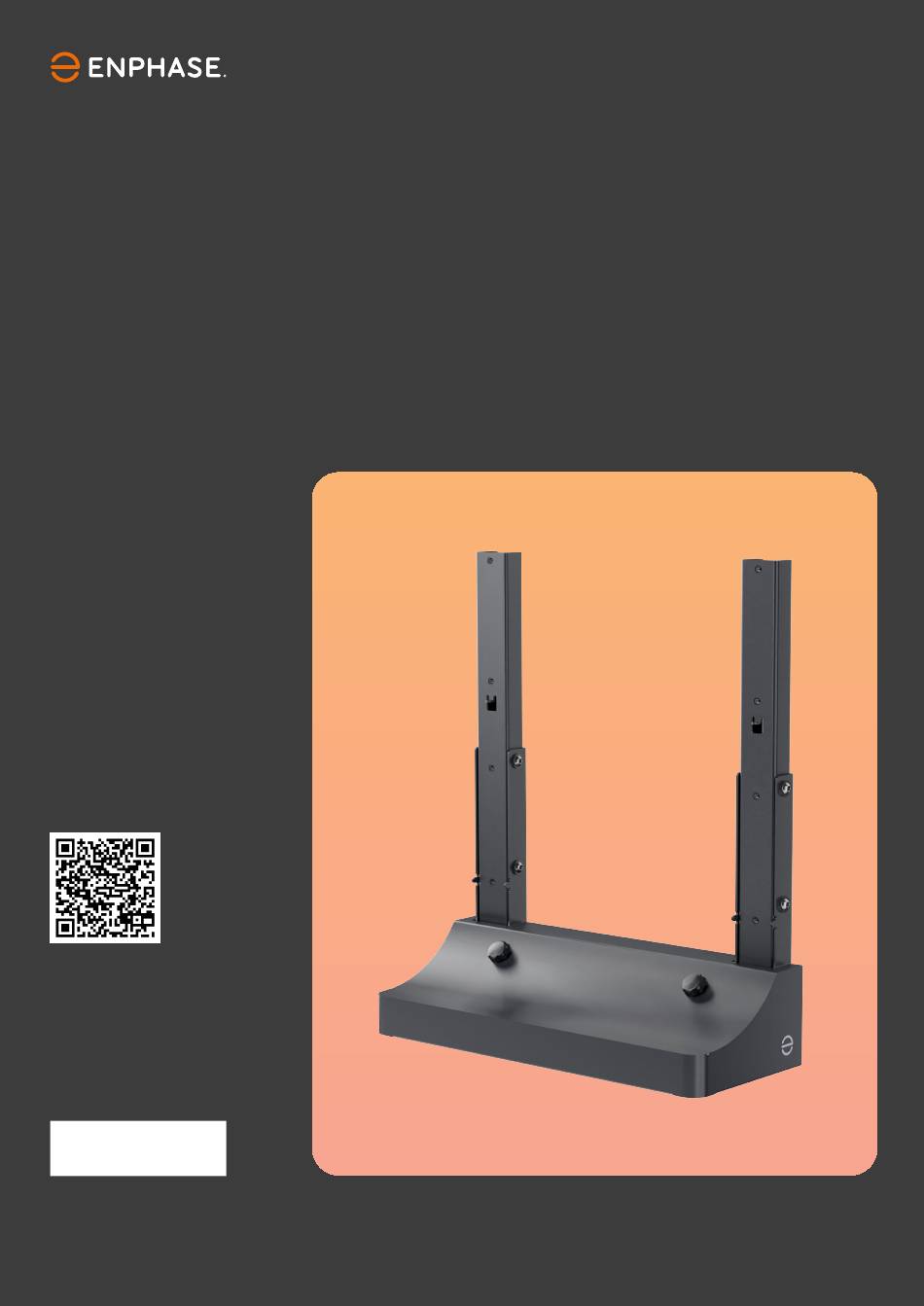

- Page 1 ENGLISH IQ Battery 10C Pedestal Mount Quick install guide Scan for the latest guide M OD E L B10 C -P I - 0 5 5 0 - O VE RSI ON 2 . 0 J UN E 202 5 Ì140-00562-02"Î...
- Page 2 This page is left blank intentionally.
-
Page 3: Table Of Contents
Contents 1. Introduction 2. What's in the box 3. Recommended anchor bolts 4. Tools required 5. Planning and site preparation 6. Installation 6.1. Prepare the pedestal assembly 6.2. Drill holes in the floor and install anchor bolts 6.3. Fix the pedestal cover on the pedestal assembly... -
Page 4: Introduction
Introduction 1. Introduction To install the Enphase IQ Battery 10C on the floor using the pedestal mount, read and follow all warnings and instructions in this IQ Battery 10C quick install guide guide. Additional safety guidelines are listed in the (https:/ /enphase.com/installers/resources/... -
Page 5: Recommended Anchor Bolts
5. Planning and site preparation The IQ Battery 10C Pedestal Mount is designed to install a single IQ Battery 10C on a level floor, suitable for indoor and outdoor environments. This section outlines the guidelines for selecting and preparing an appropriate floor surface and determining the necessary space to meet spacing requirements when installing IQ Battery 10C units on the pedestal mount. - Page 6 Enphase recommends at least 8" of clearance on the sides for ease of servicing. 1. Select a location with a minimum of 15" of unobstructed space in front of the IQ Battery 10C unit. This ensures easy removal of the cover.
-
Page 7: Installation
6. Installation 6.1 Prepare the pedestal assembly 1. Position the mounting bracket, received with each 5 kWh box of IQ Battery 10C unit, over the mounting holes on the pedestal bracket assembly. 2. Secure the mounting bracket to the pedestal bracket assembly using the eight M8 wall bracket mounting screws (M8, 0.7"... -
Page 8: Drill Holes In The Floor And Install Anchor Bolts
6.2 Drill holes in the floor and install anchor bolts 1. Mark the drill holes on the floor using the paperboard template provided with the IQ Battery 10C Pedestal Mount kit. 2. Position the paperboard template on the smooth, flat concrete surface. - Page 9 Installation NOTE: Dust and debris should be removed from the drilled hole with the DRS attachment system, compressed air (90 psi minimum for 2 seconds), or a manual pump and cleaned with a steel wire brush for a minimum of 2 cycles. Afterward compressed air (90 psi minimum for 2 seconds) should be used to blow out the remaining dust from the hole.
-
Page 10: Fix The Pedestal Cover On The Pedestal Assembly
NOTE: Install the pedestal cover before installing the 5 kWh units of IQ Battery 10C. IQ Battery 10C quick The installation of the IQ Battery 10C Pedestal Mount is complete. To complete the installation, refer to the install guide (https:/ /enphase.com/installers/resources/documentation/storage). - Page 11 This page is left blank intentionally.
- Page 12 140-00562-02-EN-2025-06-17 Applicable regions: North America © 2025 Enphase Energy. All rights reserved. Enphase, the e and CC logos, IQ, and certain other marks listed at https:/ /enphase.com/trademark-usage-guidelines are trademarks of Enphase Energy, Inc. in the U.S. and other countries. Data subject to change.
