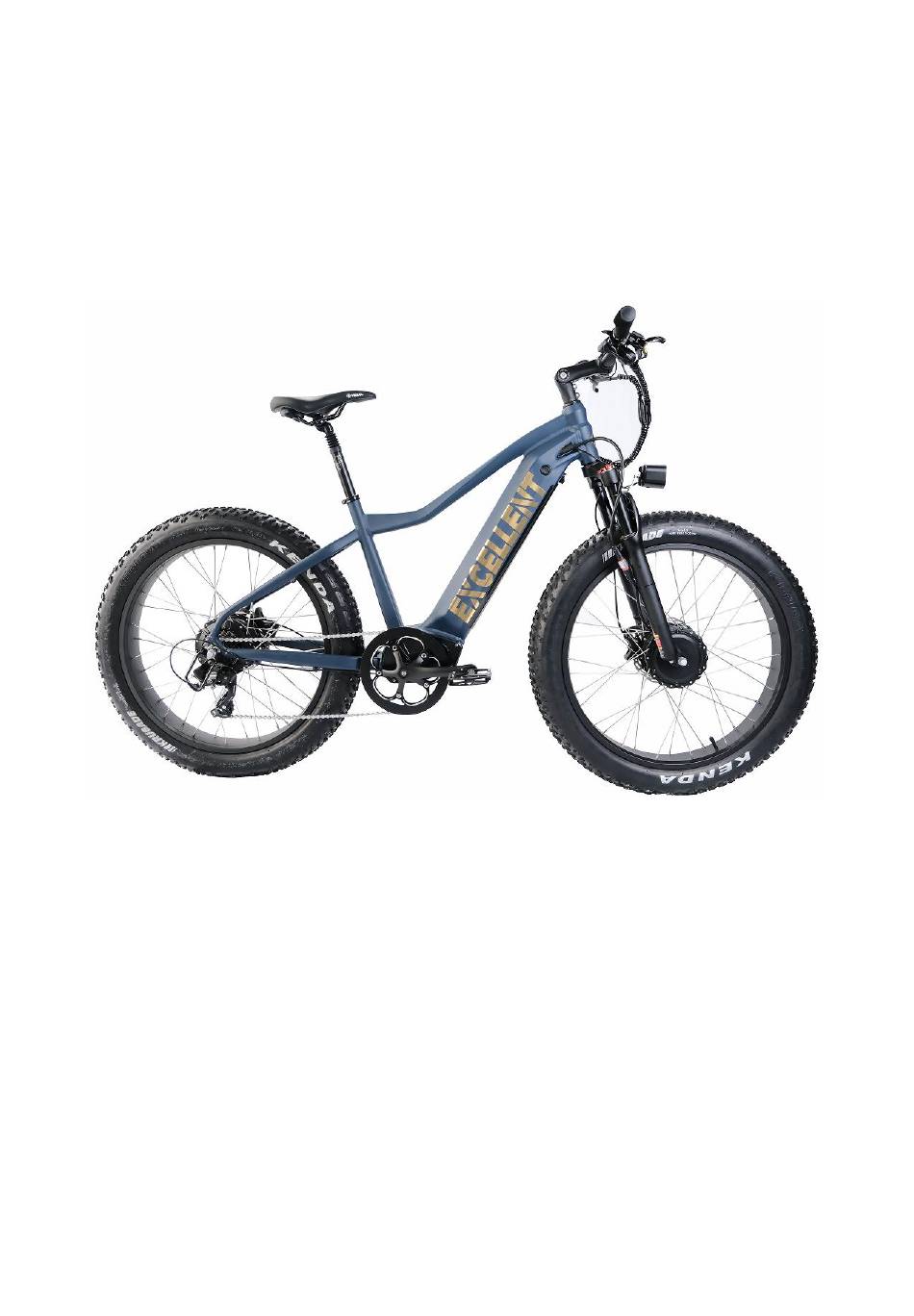

- Page 1 User Manual Model: PATH FINDER （AWD All Wheel Drive E-BIKE) CHANGZHOU EXCELLENT TECHNOLOGY CO., LTD.
- Page 2 FOR EW O R D The following operation manual is a guide to assist you. This manual is not a complete document on all aspects for the maintenance and repair of your bike. The electric bicycle you have purchased is not a complex object however, it is recommended that you consult an pedelec repair specialist if you have concerns as to your ability to assemble, repair, or maintain this product.
-
Page 3: Table Of Contents
Table of Contents The Purpose and Benefit of a Booklet........... 4 Assembly Instructions ..............6 Operation of Your Electric Bike ........... 10 Best Practices ................13 Adjustment and Maintenance ............14 Troubleshooting ................16... -
Page 4: The Purpose And Benefit Of A Booklet
The Purpose and Benefit of this Booklet This booklet describes assembly and safe operation of your electric bicycle. Pictures are for reference only and may show the similar component from another model. Please Read the Entire User’s Manual Before Riding Your New Electric Bicycle ... - Page 5 E-bikes are for on road or improved trail use only and should not be used for riding rough trails. Damage to the bike may occur if used off road. Do not operate your electric bike after consuming any amount of alcohol or taking any drugs. All photos are for general reference only and may differ slightly for each model of pedelec.
-
Page 6: Assembly Instructions
Getting Started First, unpack your electric bike carefully and save all packing material. Be sure to locate your charger, pedals and any small parts like nuts or screws inside the shipping carton. Sometimes small parts like nuts or screws may come loose during shipping so be sure and check the bottom of the carton and protective wrapping carefully. - Page 7 Attach and adjust the handlebar Your handlebars have two main parts--the bar itself and the adjustable stem. If your bar has been removed for shipping, position the bar in the center of the stem and check, to be sure that your grips are in the right place and the angle of the bar is comfortable.
- Page 8 Adjust the brake pads on either side by using an Allen wrench so that they make contact on the metal wheel rim and not the tire. Be sure they are straight, and the distance is 1-1.5mm between rim and the two brake pads. The pads will be close when adjusted properly.
- Page 9 Attach the Pedals Pedals are marked „L‟ and „R‟ on axle end, Screw the pedal marked „L‟ into the left side of crank and „R‟ to right. (1).The right pedal attaches to the chain side crank arm with (clockwise) thread (2).
-
Page 10: Operation Of Your Electric Bike
Operation of Your Electric Bike Your e-bike is driven by a motor embedded in the hub of the rear wheel and cannot be driven directly by throttle. The motor is powered by a battery. The amount of power delivered to the motor, and hence the accelerating force on the e-bike, is controlled by you in a way according to the power-assisted mode you choose. - Page 11 Operation of Your Display The Display has four buttons. Including power button, M button, + button, - button “Long press the button>3S”Replay with the word “Long press”，“Short press the button<0.5S”Replay with the word “Short press” Power On / Power Off When the display is power off, long press “Power”，Display power on；...
- Page 12 AWD mode switch Default Driving mode=Rear Drive ,which means,when you turn on the power of display,the rear motor will run only Long press the button M&+,it will switch to Front Driving mode(FWD) Long Press the button M&+ again,it will switch to AWD mode (AWD=All Wheel Drive) Turn off and turn on the display or Long press M&+ ,switch to Rear Driving mode (RWD) Operation of Your Lights Front and rear lights are mounted to this model(Some model did not have lights,but reflectors)
-
Page 13: Best Practices
Best Practices 1. Please observe the traffic regulations. 2. Keep both your hands on the handlebars ready to brake while riding. 3. Always charge your battery after riding. 4. Don’ t run your battery dead or extremely low. If you do, charge as soon as you can. 5. -
Page 14: Adjustment And Maintenance
The match of the electric bicycle and people Adjustments and Maintenance -Your e-bike is designed for regular road for a single person. Using your e-bike for extreme maneuvers, such as extreme off-road use, jumping, or carrying excessive load will damage the e-bike and could cause serious injury. -
Page 15: Battery Disposal
Some instructions on battery maintenance and charging Please charge the battery for 6-10 hours after its energy is consumed for 50%-70% of its total energy , in this way, the battery life will be longer. If you leave the battery pack in your stock in less energy condition, it will sleep to die easy. -
Page 16: Troubleshooting
Faults and Trouble-shooting Faults Causes Troubleshooting 1)Power cord is not properly 1) Properly plug in power plugged into battery cord to battery 2)Brake cut-off engaged or faulty 2) Disengage brake cut-off or Battery gauge lights replace 3) Speed sensor adjusted too up but bicycle does 3) Adjust speed sensor not operate... - Page 17 Regular Inspection List Before every ride, it is important to carry out the following safety checks: 1.Brakes -.Ensure front and rear brakes work properly -.Ensure brake shoe pads are not over worn and are correctly positioned in relation to the rims. -.Ensure brake control cables are lubricated.
- Page 18 WARNING 1 — If any safety-critical components need to change. Please go to authorized retailer for changing genuine replacement. WARNING 2 — As with all mechanical components, EPAC is subjected to wear and high stresses. Different materials and components may react to wear or stress fatigue in different ways. If the design life of a component has been exceeded, it may suddenly fail, possibly causing injuries to the rider.
-
Page 19: 12 Month Limited Warranty
12 MONTH LIMITED WARRANTY P L E AS E S AV E Y O U R S AL E S R E C EI P T The limited warranty as contained herein is exclusive and in lieu of all other warranties express or implied. - Page 20 User services and privacy policies How you access and control your personal information 1. We will endeavor to take appropriate technical measures to ensure that you can access, update and correct your registration information or other personal information provided when using our services.
