Summary of Contents for Nivian NVS Series

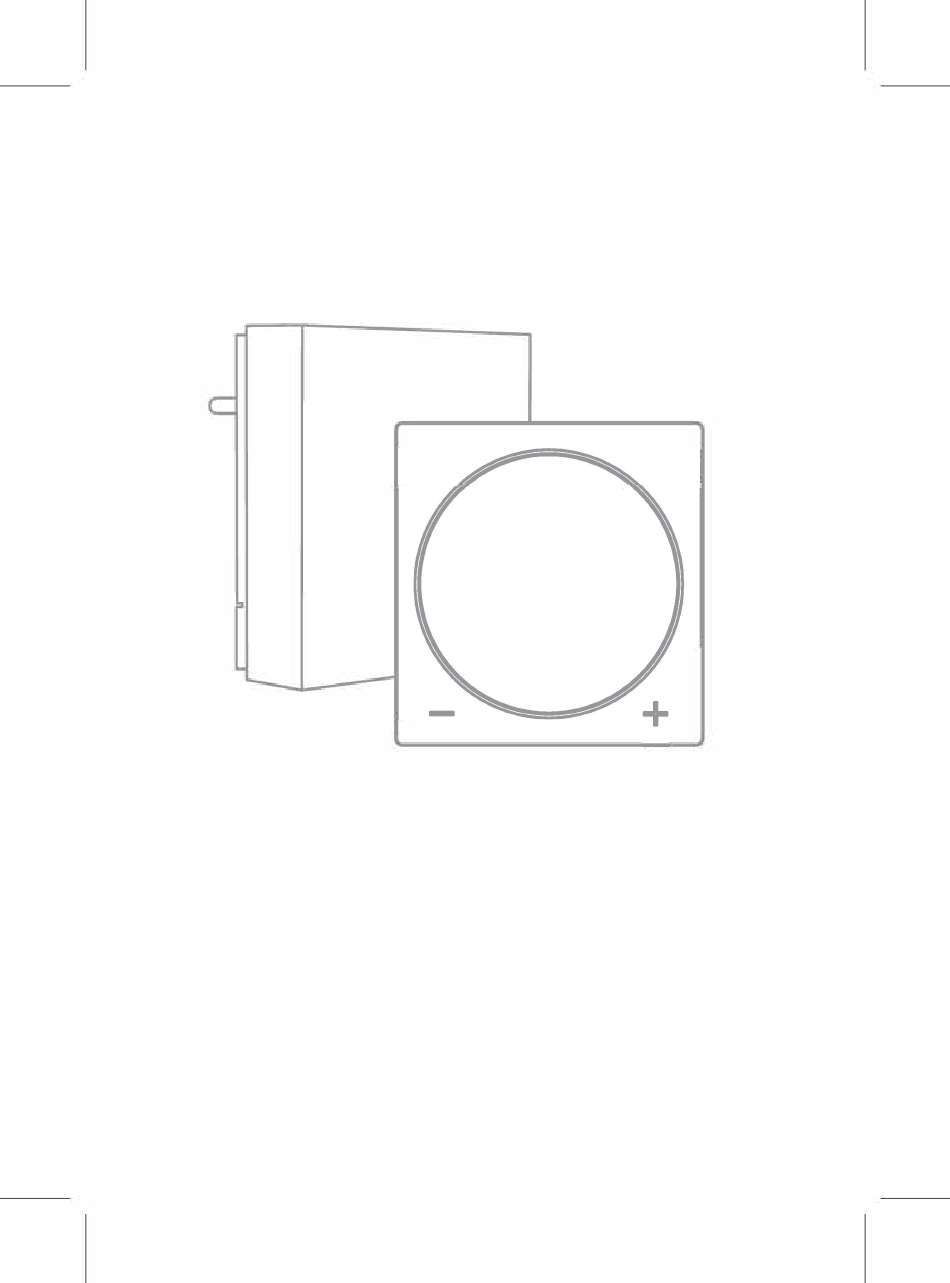

- Page 1 NVS-TH ERMOSTAT WIFI Heating thermostat Gas Boiler Set...
-
Page 3: Box Contents
1 Box contents NVS-BT01-RF x1 pc NVS-BT02-RF x1 set Screw accessories x1 pc NVS-BT-AC x1 Manual x1 2 Description LED lndications --t----- --+-,1+---- Settings Measured ----<----H-- Temperature Button- Button+... -
Page 4: Buttons Function
- BT01 LED lndications: Blue indicator: indicates the WiFi status. Blinking quickly: Pair mode to connect Wi-Fi to router Blinking slowly: wifi connection non successfully Light on: The WiFi is connected successfully Red indicator 1: indicate the RF868 status. Light on: RF sensor pair mode Light off: RF sensor paired successfully Red indicator 2: indicate the relay status (gateway used only for gas boiler set) -
Page 5: Specifications
"S": in setting mode, you can adjust the setting temperature manually via button +/- to comfortable temperature. "L": child lock function mode is enable, you can not ad just the touch settings via the button anymore, if you can change mode in the APP. Buttons Function Button +: Short press: wake up the display to view the measured room... - Page 6 BT-02 Power supply: Settings Temperatu re: AA 1.5Vx3 range from S to 295°C Battery Life: Increment: 05°C RF Frequency: Relay 1 output: 868MHz ON/OFF RF working distance: Contact rating (Res. load): up to 80 meters in open space SA 2S0VAC/30VDC Display: Housing: ABS plastic...
- Page 7 7 Connect the gateway to your APP Step 1. Choose which device will be added choose "Add +"-"Others or any other wifi sensors icon even like wifi switch. Step 2. Choose EZ mode/ AP mode At "pairing mode" of top right side of APP to choose EZ mode. then continue "confirm indicator rapidly blink''.
- Page 8 Step 4. Now you can set the gateway name to complete the connection one time the connection is successful, the gateway icon will be list in the APP at once. And you can rename the gateway as different names as you prefer.
- Page 9 Wi-Fi to the device's Password hotspot only suppon 2.4GHz w,-F, 1 C0r'IM-Ct4!d l'.flMl� lO lh� l'IOl�I M°IOwtl network �low � Nivian Go conriecl Connecting Set Device's Name APModo canea, Connecting • Gateway fZ. ILlfy 1dcl!â Mek.e sure yoor router. mobile, and "...
- Page 10 8 BT-02 Power ON Insert the batteries in the Thermostat Control panel, the device will be automatically turn on. 9 Connect BT-02 to the gateway Step 1: Operation on the Gateway on pair mode: After connect the BT-01 to gateway, Open gateway icone in the main APP.
- Page 11 lf more than two wires, identify the two control wires before remove the old device. They are usually black or grey as shown on the following diagram. COM/NO ® ® @]] @]] Remove your old thermostat from the wall. Note: lf more than two wires, the others are power supply wires and are useless here.
- Page 12 ■ Insert the batteries in the device. lnstall the device on the mounting plate. 1• • • � Step 4/4: Complete installation, turn on the main power. 12 APP lnterface NVS-THERMOSTAT � BM;i,: � NVS-THERMOSTAT 0Add•-...
- Page 13 f- ..� � NVS-THERMOSTAT AtJtoMode O peri Wimbw Rerind.5 ln the APP, we have Manual Mode/Auto Mode/Holiday mode for choice. Manu Mode: we can regular the temperatu re quickly if we want to rise the temperature quickly. Auto mode: We have set the weekly program temperatu re and everyday, we can set maximum 9 different temperature timing.
- Page 14 13 BT-AC ( in option) This device contain the High voltage, Installation must be carried out expertly. The accessory base BT-AC is only used for new house when BT-02 can not be installed in the wall with relay cables to control the gas boiler. The house have no Heating Thermostat control cable preinstalled.
- Page 15 Warning ATTENTION RISK OF ELECTRIC SHOCK � DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...
- Page 16 Standards This product bears the selective sorting symbol for waste electrica I and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.
- Page 17 � � NIV'IAN 4Smart...
