USE AND MAINTENANCE MANUAL

RACKS FOR SET OF SLABS

Model ISE 17 B

Table of Contents

Need help?

Do you have a question about the ISE 17 B and is the answer not in the manual?

Questions and answers

Summary of Contents for Stonegate ISE 17 B

Page 1: Declaration

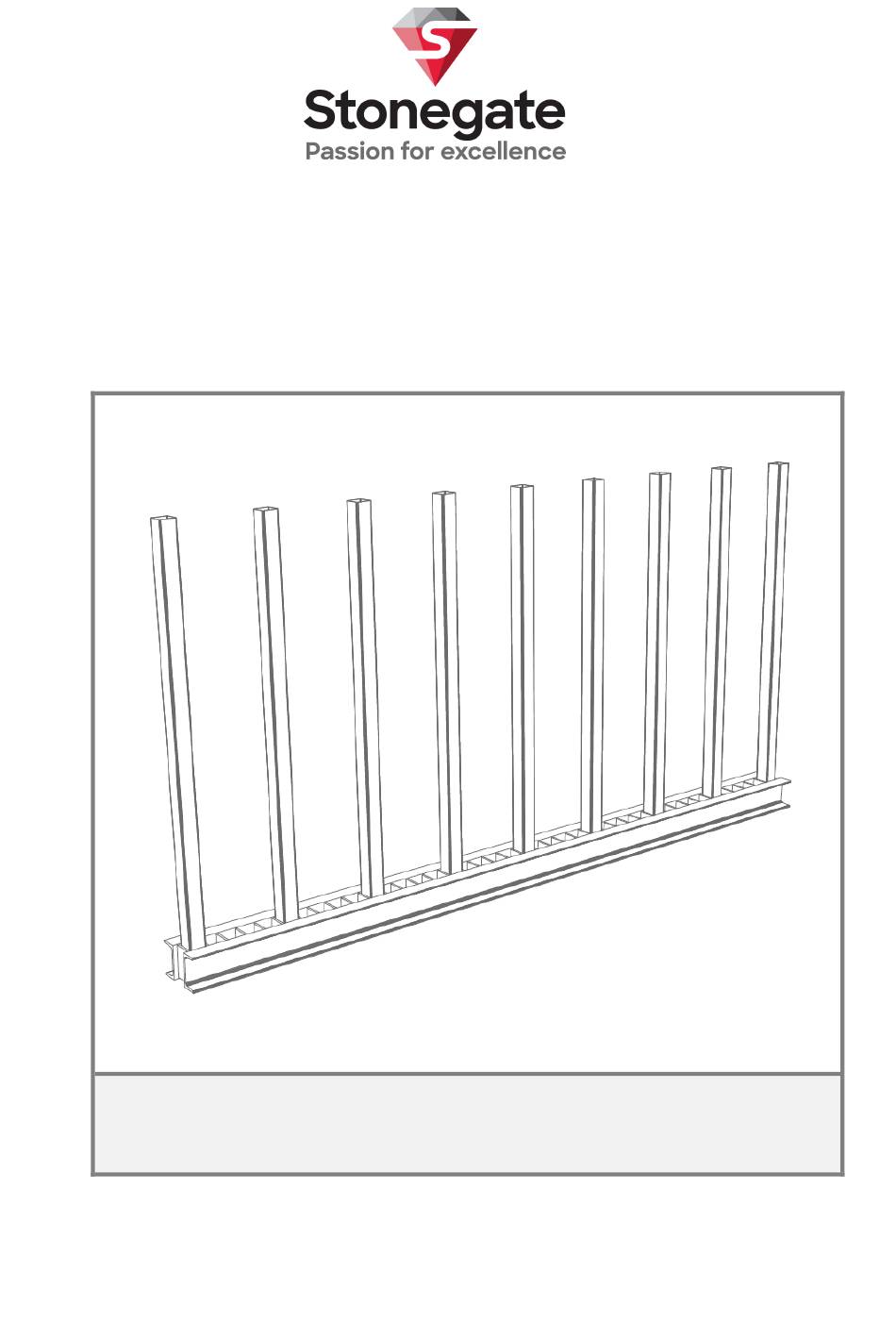

USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS Model ISE 17 B...
Page 2 USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B No part of this document may be photocopied, reproduced, ALL RIGHTS or translated into another language without the prior written consent RESERVED: of the Company. The information contained in this document is subject to change WARNING: without notice.
Page 3: Table Of Contents
KEYS TO READING THE MANUAL ..................8 STORAGE OF THE MANUAL ....................9 RESPONSIBILITY ......................9 RACKS FOR SET OF SLABS MODEL ISE 17 B ..............10 TECHNICAL AND USE DESCRIPTION ................11 SAFETY: GENERAL INFORMATION ................. 15 RISKS, PROTECTIONS, WARNINGS, AND CAUTIONS ..........19 ENVIRONMENTAL RISKS ....................
Page 4: Introduction
USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B INTRODUCTION Dear Customer, Thank you for selecting our RACKS FOR SET OF SLABS for the deposition and storage of stone slabs. We are pleased to provide this use and maintenance manual, designed to ensure safe and productive operation.
Page 5: Preface
USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B PREFACE The Manufacturer warrants its products for a duration consistent with current Italian regulations from the date of purchase. This warranty covers the repair or free replacement of parts deemed defective following inspection by the Manufacturer.
Page 6: Keys To Reading The Manual
USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B KEYS TO READING THE MANUAL All instructions in the use and maintenance Manual must guide both the operator and the qualified technician in the proper and safe use and control phases of the equipment.
Page 7: Storage Of The Manual
USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B STORAGE OF THE MANUAL The use and maintenance manual is an integral part of the track. CAUTION The Use and Maintenance Manual must be retained and provided to any subsequent •...
Page 8: Racks For Set Of Slabs Model Ise 17 B
USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B RACKS FOR SET OF SLABS MODEL ISE 17 B 10|19...
Page 9: Technical And Use Description
RACKS FOR SET OF SLABS: MODEL ISE 17 B TECHNICAL AND USE DESCRIPTION The ISE 17 B model slab pack track is a piece of equipment placed on the ground for storing slabs of stone materials, used in parallel pairs.
Page 10 MIG technique under CO2 protection. The ISE 17 B model slab set tracks consist of a pair of underlying racks in UPN 120 profile with maximum size of 300 cm, featuring 9 posts per track placed obliquely relative to the support surface.
Page 11 USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B Lateral view. Lateral view. RACKS FOR SET OF SLABS. Model ISE 17 B. 1 PAIR OF RACKS + 18 POSTS MAXIMUM CAPACITY PER PAIR OF POSTS: 2700 kg Plan view.
Page 12 USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B LOADING OF THE RACKS MUST BE CARRIED OUT FROM THE CENTER OUTWARDS. THE SUPPORT SURFACE OF THE RACKS MUST ENSURE ADEQUATE STABILITY AND FLATNESS. The calculation report on the PROJECT LOADS prepared by Engineer Paolo Tezza is available in the technical file.
Page 13: Safety: General Information
USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B SAFETY: GENERAL INFORMATION The employer must ensure staff are trained on accident risks, safety devices for operators, and general accident prevention rules as required by current regulations, including the handling and storage of stone materials.
Page 14 USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B The worker's operational area must be clear of materials that obstruct visibility or • hinder maneuvers. 16|19...
Page 15 USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B The ropes must always be CORRECT! The ropes must be The rope should not be placed positioned equidistant from approximately 10 cm away from on the edge of the slabs.
Page 16 USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B Tampering with, replacing, or unauthorized modification of any part of the TRACK AND RELATED UPRIGHTS, as well as using accessories, tools, or consumables not recommended by the manufacturer, may pose a risk of injury or system malfunction and absolve the manufacturer from civil and criminal liability.
Page 17: Risks, Protections, Warnings, And Cautions
USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B 10 RISKS, PROTECTIONS, WARNINGS, AND CAUTIONS Before loading, ensure the stability of the ground. Pay particular attention to the subsidence load of the ground or asphalt on which the tracks rest. If at the end of the loading phase, the material is not balanced, carry out the track positioning operations again.
Page 18: Maintenance Log
USE AND MAINTENANCE MANUAL RACKS FOR SET OF SLABS: MODEL ISE 17 B 14 MAINTENANCE LOG DATE OPERATION OUTCOME SIGNATURE NOTE 20|19...
Page 19 3000 ≠70x113x8 / 72 UPN 120 UPN 120 PLAN AND LONGITUDINAL ELEVATION OF RACK - SCALE 1:10 Continuous wire MIG welding Continuous wire MIG welding ≠70x113x8 / 72 ≠70x113x8 / 72 UPN120 UPN120 CENTRAL SECTION OF THE RACK FINAL SECTION OF THE RACK SCALE 1:5 SCALE 1:5 Continuous wire MIG welding...
