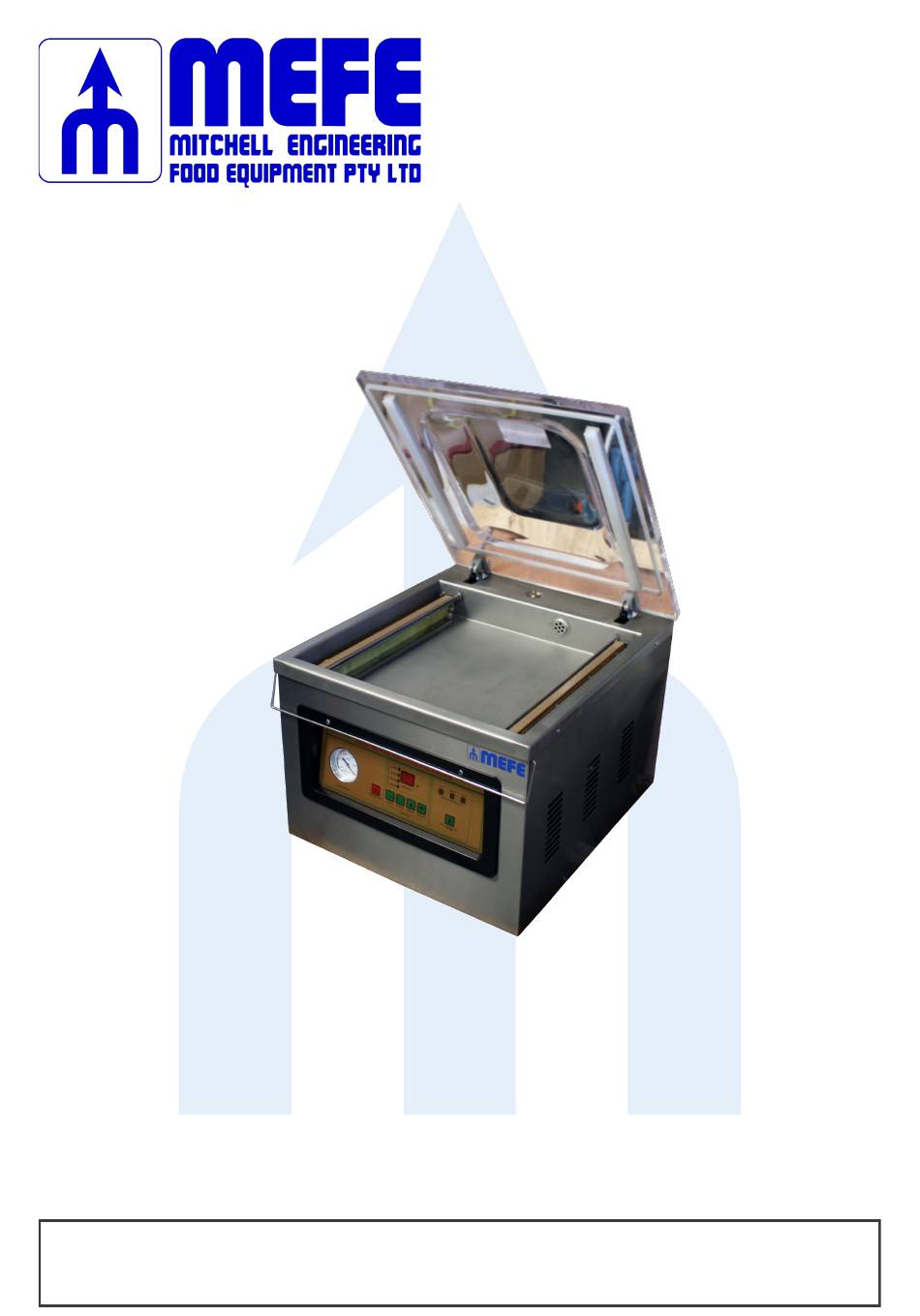

- Page 1 Operation Manual Vacuum Packing Machine CAT 370 550 CAT 370 550GF—Gas Flush Version Revision 9 MEFE—Mitchell Engineering Food Equipment Pty Ltd SEP 24 Page 1 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au info@mefe.com.au...
-
Page 2: Table Of Contents
6. Other Attention Matters ..................6 7. Breakdown Analysis and Removal ..............7-9 8. Spare Parts List………….………………………………………………….…………………………………… 9. Parts Breakdown………………………………………………………….…………………………………… MEFE—Mitchell Engineering Food Equipment Pty Ltd SEP 24 Page 2 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au... -
Page 3: Uses And Characteristics
400 x 320 x 60mm 400mm x 2 20 m ≤0.2PA 3. Control panel Setting Up the Control Panel—CAT 370 550 Open the lid of the machine to access the control panel. MEFE—Mitchell Engineering Food Equipment Pty Ltd SEP 24 Page 3... - Page 4 3. Control panel layout CAT 370 550 Continued Turn on the power switch located next to the plug; the pilot lights will turn on. Press the “Vacuum” or “Sealing” button and use the “Increase” or “Decrease” buttons to set the time for drawing air and heat-sealing (e.g., “28”...
-
Page 5: Use Preparation
Heat the (Release gas) the cover Press down the cover Drawing air Cooling sealing of the machine opens MEFE—Mitchell Engineering Food Equipment Pty Ltd SEP 24 Page 5 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au info@mefe.com.au... -
Page 6: Other Attention Matters
If working for over 10 hours a day, or in summer, the vacuum pump will adopt the measure of cooling forcefully out of the ma- chine In order to keep good working state of the vacuum pump. Air Drawing (vacuum) system diagram: MEFE—Mitchell Engineering Food Equipment Pty Ltd SEP 24 Page 6... -
Page 7: Breakdown Analysis And Removal
Armature elevating part has dirt Replace Rusty or broken spring caused block Replace Voltage is too low MEFE—Mitchell Engineering Food Equipment Pty Ltd SEP 24 Page 7 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au info@mefe.com.au... - Page 8 Air vent smokes or vents oil drop correct or the material breaks Exhaust filter is blocked Clean or change filter MEFE—Mitchell Engineering Food Equipment Pty Ltd SEP 24 Page 8 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au...
- Page 9 These instructions are only for reference. If any unconformity, please contact the technical department of our company. There are no additional instructions for special different mechanisms in the above-mentioned models. There is no additional notification for improved design MEFE—Mitchell Engineering Food Equipment Pty Ltd SEP 24 Page 9...
-
