4 BOX S Series, Uniko Lite S Manual

General description

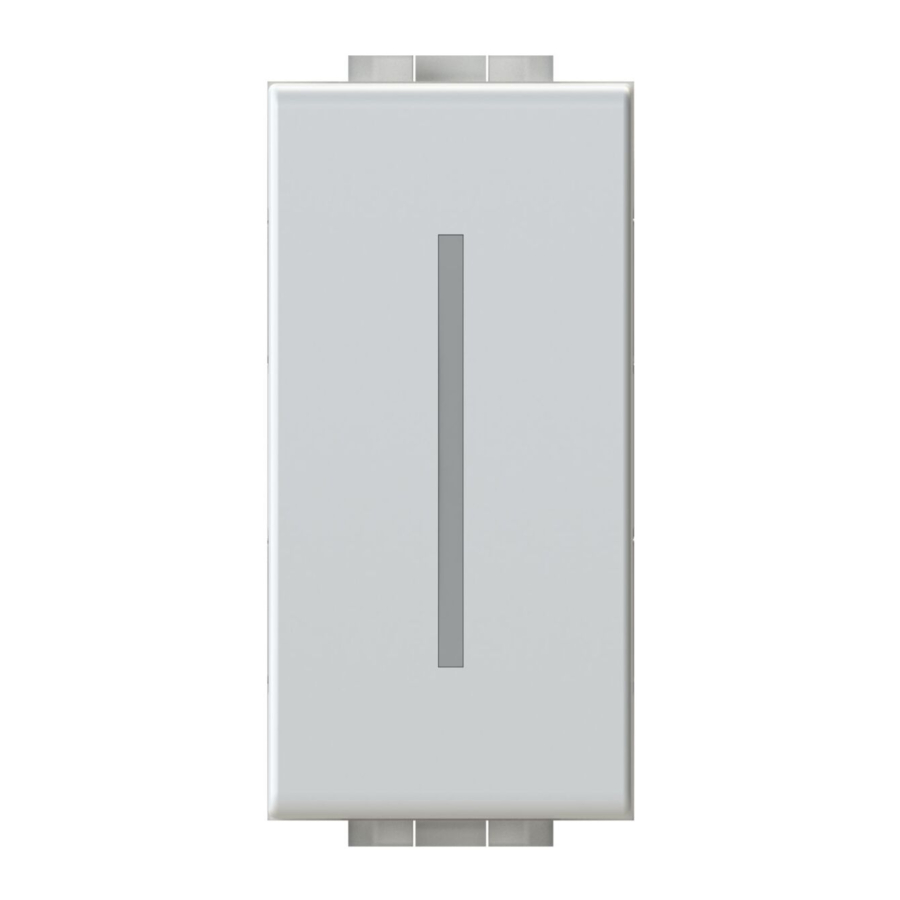

Uniko Lite Smart is a single pushbutton connected with a WiFi/ BLE module, with a single on-board relay operating in the 110230 V range up to a maximum of 7A; Uniko Lite is "Smart" and can be controlled remotely via smartphone or App.

1. Push button with RGB LED backlite
2. Terminals I1 and I2 for optional button inputs
3. Neutral N terminal
4. L terminals for input phase
5. NC and NO terminals to connect output or normally open or closed contacts
6. Load connection terminal C

Operating mode

Uniko Lite Smart can be programmed to have functions of:

• Single light button

Confuguration

To perform the first installation, replacement and/or removal of a device a ormation, refer to the manual which can be the site.

Precautions for use

All direct connections to the mains conductors must be carried out by trained and authorized technical staff. Pay attention to any danger indications placed on the device or contained in this manual highlighted with the symbol ( ).
Do not use the device in gas saturated environments.
Do not place the device near heat sources.
Use only indoors.

Installation rules

Installation must be carried out by qualified staff in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. The installation must be carried out with the system switched off.

Warranty
This product is covered by a 2 years from the date of purchase on parts and labor warranty. To enforce the guarantee it is necessary to keep the proof of purchase. The warranty does not cover any damage due to shocks or accidents. The components of the appliance must not be opened or repaired by people outside 4box company.

Technical info

	7 x 2,5 mm2
	+5°C +45°C
Operation voltage	110V – 230V /50-60Hz
Maxi electric current	7A
Max load	1610W
Technology	Radio WiFI/BLE
Exercise frequency	2.4 GHz
Standby consumption	1 Wh

Maintenance and cleaning

Before cleaning, disconnect the product from the power supply. The product does not require specific maintenance. To clean the product, use a simple dry cloth. Do not use abrasive or corrosive substances. Do not spray cleaning products directly on the switch.

Wiring diagrams

*In the input it can be connected indiscriminately to Phase (L) or to Neutral (N)
