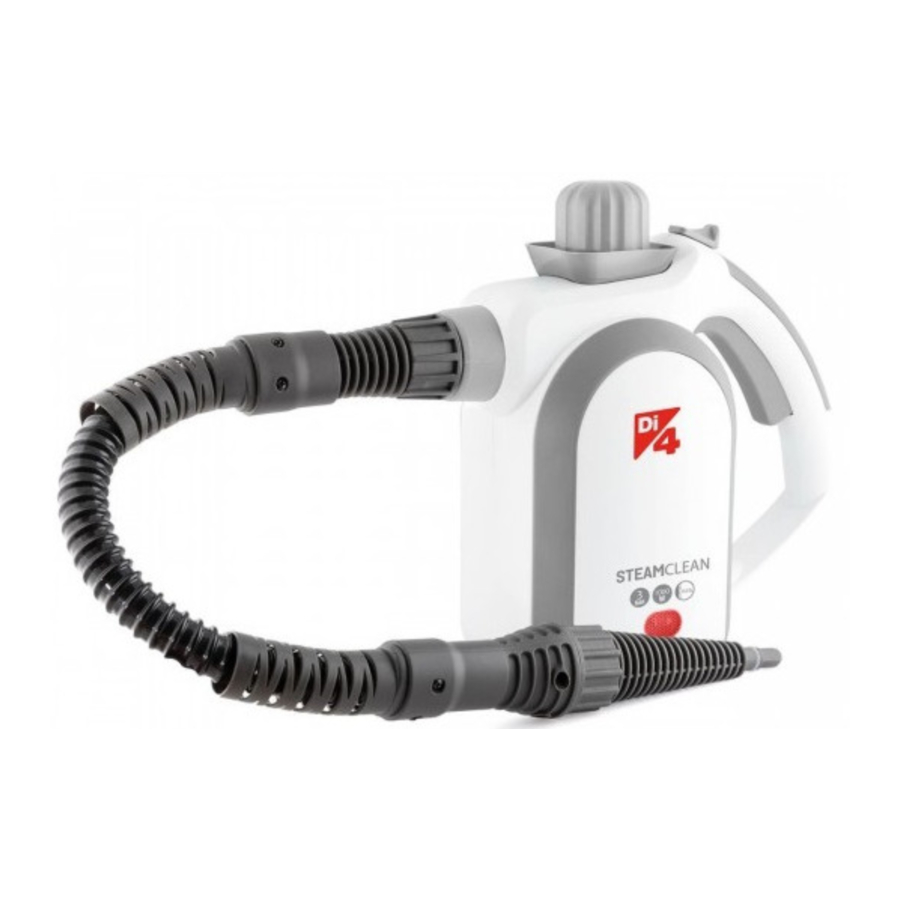

Di4 SteamClean Manual

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

MAIN BODY

1. Small steam nozzle: Steam come out from here and accessory can attached with it.
2. Safety valve: Adding water from here. Turn right close, turn left open.
3. Children lock: To prevent children play with it
4. Steam release button Press this button and press the children lock at the same time, the steam can be release
5. Power cord
6. Power cord sheath
7. Main body
8. Indicators It is red color during heating. If the pressure ready, it will be green color
9. Glass scraper

Accessories

1. Straight nozzle
2. bent nozzle
3. nylon brush
4. ironing brush
5. extension hose
6. cloth for ironing brush
7. funnel
8. measuring cup

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
The appliance shall not be left unattended while it is connected to the supply mains.
The filling aperture shall not be opened during use
The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
Keep the appliance out of reach of children when it is energized or cooling down.
Steam must not be directed towards equipment containing electrical components, such as the interior of ovens. Appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
Plug must be removed from socket-outlet before cleaning or maintaining the appliance.

This symbol means Danger of scalding.

IMPORTANT WARNINGS

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.
The mains connection cable must not be tangled or wrapped around the product during use.
Do not pull on the connection cord in order to unplug it.
Do not use, connect or disconnect the device to the mains with your hands or feet wet.
Proceed according to the conservation and cleaning section of this manual for cleaning.
Unplug the product immediately from the mains in the event of any breakdown or damage and contact an authorised Technical support service.
In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand´s Official Technical support service may carry out repairs or procedures on the device. Any incorrect use or improper handling of the product shall render the warranty null and void. Only an authorised technical support service centre may carry out repairs on this product.
This appliance is designed exclusively for domestic use, in no case should be a commercial or industrial use. In case of misuse or tampering with the product, it will be out of warranty.
B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

1. Assembly steam cleaner
   Choose needed accessories for connection.
2. Methods of filling water and caution:
   Turn left to open the safety valve. (note: It can not be opened when there is steam in the boiler, you must release all the steam to open the safety valve.)
   Use funnel to fill water, capacity is 250ml, then turn clockwise to close the safety valve.
   Only fill clean drinking water.
   Never attempt to fill in any detergent or other additive.
3. Start-up and caution:
   1. Connect power supply notice
      INPUT VOLTAGE MUST BE SAME AS APPLIANCE LABEL INDICATED VOLTAGE.
      1. Plug the plug into the socket as required. The indicator turn red color. It is heating.
      2. When the pressure is ready, the indicator turn green color.
   2. Cleaning:
      Have a trial test in covert first for cleaning any object which material is sensitive to temperature and humidity. The cleaned object must afford high temperature.
      Push the children lock (3) and push steam release button (4) at the same time, spray steam for cleaning.
      You can open the safety valve when the steam volume decreases until there is no steam come out. Please fill water into boiler.
      CAUTION DURING CLEANING:
      Don't clean electriferous appliance to prevent electric shock!
      Chemical fiber and silk can not be cleaned to prevent scald!
      To prevent window from cracking in winter, keep the jet nozzle 30cm away from glass to preheat the window first.
   3. Fill water for a continuous application:
      Always wait still no steam release, and there is no pressure in the boiler, the safety valve can be opened and filling water. (When there is pressure in the boiler, the safety valve can not be opened by special structure for safety protection.)
      Operation methods: push down the steam release button to release steam till steam is run out, then release the botton and open the safety valve: probably some surplus heat will release when open it, filling water according to contents in Fill water for a continuous application. Restart according to contents in Connect power supply notice after filling water.
   4. Turning off
      Push the steam release button to release steam till no steam comes out, then turn off the steam release button. Unplug the plug, entwine the cable to cable discal and wipe the appliance. Pouring the rest of the water in the boiler. Let it cool down then store it.

STORAGE

Never attempt to cover the hot steam cleaner immediately after use.
Don't place it near by any heat source.
Place the appliance in a dry ambient with good ventilation.
