INDEX

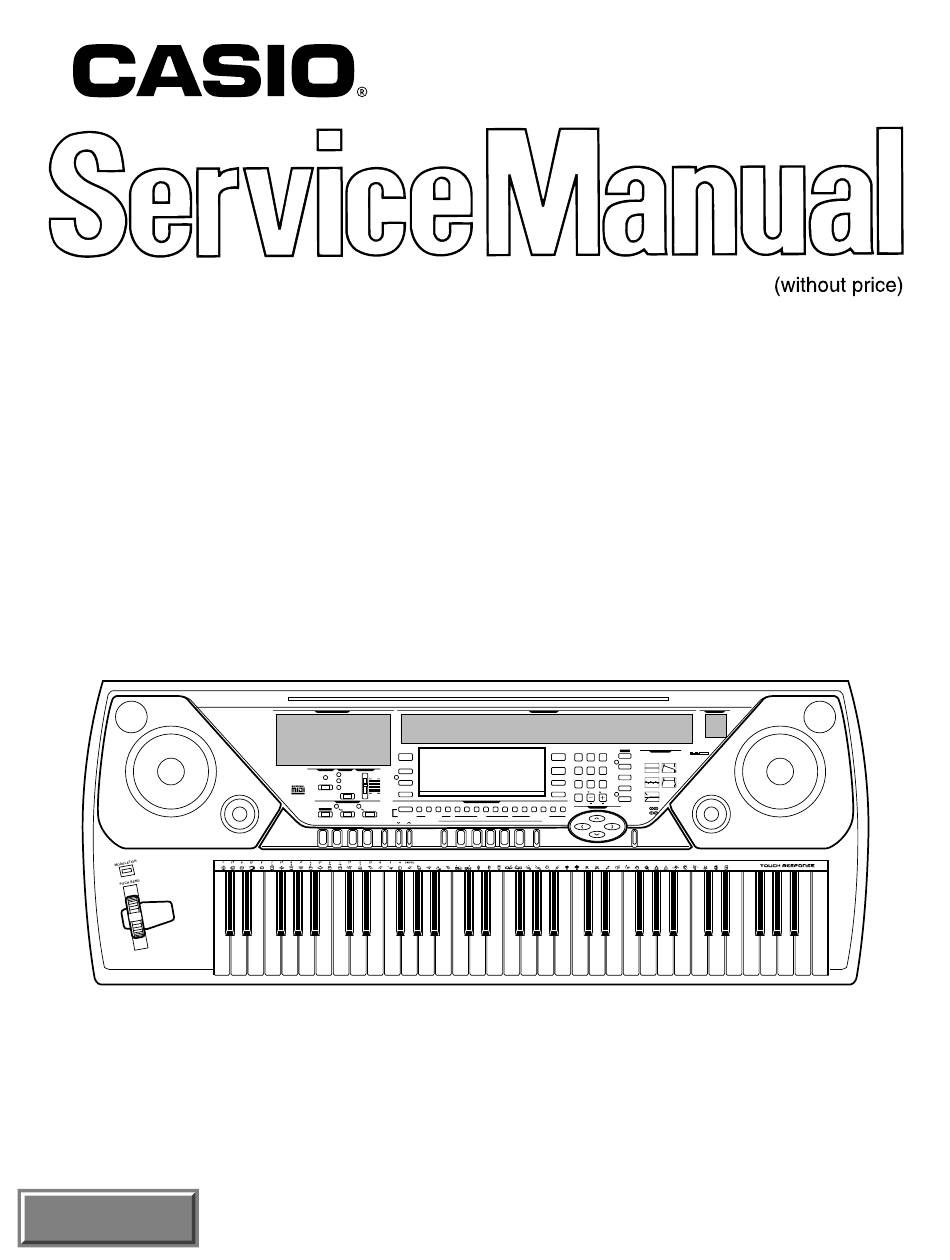

CTK-811EX
JUL.1998
110 RHYTHMS
DSP
CONTRAST
USER RHYTHM
100
'
109
POWER
MODE
VOLUME
FULL RANGE
CHORD
FREE
MAX
SESSION
FINGERED
CASIO CHORD
ONE TOUCH
PRESET
MIN
SEQUENCER
EXTERNAL
CH1
CH2
CH3
CH4
RECORD
SONG
PATTERN
INTERNAL
UPPER1
UPPER2
LOWER1
LOWER2
MIXER SELECT
TONE EXPANDER
NORMAL/
VARIATION/
SYNCHRO/
START/
TEMPO
INTRO
FILL-IN
FILL-IN
ENDING
STOP
BANK
2-WAY
BASS REFLEX SPEAKER
GM SOUND KEYBOARD
232 TONES
TONE
DEMO
7
8
9
SYNTH
RHYTHM
4
5
6
TRANSPOSE/
TUNE/MIDI
LAYER/
AUTO HARMONIZE
TOUCH
1
2
3
RESPONSE
SPLIT
/NO
/YES
DISK
0
16 CHANNEL MIXER
DELETE
CH5
CH6
CH7
CH8
CH9
CH10
CH11
CH12
CH13
CH14
CH15
CH16
MAIN MENU/
CURSOR
CHANNEL VOLUME
SUB MENU/
CHANNEL SELECT
ACC VOL.
CHORD1
CHORD2
CHORD3
BASS
RHYTHN
TR1
TR2
TR3
TR4
TR5
TR6
ACCOMP
SEQUENCER TRACK
REGISTRATION
A
B
C
D
E
STORE
ENTER
10DSP
ENVELOPE
PARAMETER RESET
ENTER
PITCH
AMP
ENVELOPE
ENVELOPE
00 FLAT
DECAY
01-17 VIBRATO
SUSTAIN
18-45 OTHERS
:
:
2-WAY
BASS REFLEX SPEAKER
CTK-811
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Casio CTK-811EX
Summary of Contents for Casio CTK-811EX
- Page 1 CTK-811EX JUL.1998 110 RHYTHMS 232 TONES 10DSP TONE DEMO ENVELOPE PARAMETER RESET ENTER PITCH ENVELOPE ENVELOPE 00 FLAT DECAY SYNTH RHYTHM CONTRAST USER RHYTHM ‘ POWER MODE VOLUME TRANSPOSE/ FULL RANGE TUNE/MIDI CHORD FREE LAYER/ 01-17 VIBRATO SUSTAIN SESSION AUTO HARMONIZE...
-
Page 2: Table Of Contents
CONTENTS Safety Notice ----------------------------------------------------------------------------------------------- 2 Specifications ---------------------------------------------------------------------------------------------- 3 Important Operation ------------------------------------------------------------------------------------- 5 Block Diagram --------------------------------------------------------------------------------------------- 6 Circuit Description --------------------------------------------------------------------------------------- 7 Diagnostic Program ------------------------------------------------------------------------------------ 22 Major Waveformes -------------------------------------------------------------------------------------- 28 Printed Circuit Board ---------------------------------------------------------------------------------- 29 Exploded View ------------------------------------------------------------------------------------------- 31 Parts List --------------------------------------------------------------------------------------------------- 32 Schematic Diagrams ----------------------------------------------------------------------------------- 35 —... -
Page 3: Safety Notice
SAFETY NOTICE CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. DENMARK: ADVARSE! Lithiumbatteri. Eksplosionsfare ved fejlagtig handtering. Udskiftning ma kun ske med batteri af samme fabrikat og type. Lever det brugte batteri tilbage tili leverandoren. FINLAND: VAROITUS Paristo voiäjähtää, jos se on virheellisesti asennettu. -
Page 4: Specifications
Auto accompaniment Rhythm patterns: 110 (100 + 10 user rhythms) Tempo: Variable (226 steps, = 30 to 255) Chords: 3 fingering methods (CASIO CHORD, FINGERED, FULL RANGE CHORD) Rhythm controller: Start/Stop, Intro, Normal/Normal Fill-In, Variation/Variation Fill-In, Synchro/Ending Accomp volume: 0 to 127 (128 steps) - Page 5 Other functions Pitch bend range: Adjustable (12 semitones upwards and downwards) Modulation: Equipped Transpose: 25 steps (–12 semitones to +12 semitones) Adjustable (A4 = approximately 440Hz ± 50 cents) Tuning: Terminals MIDI terminal: IN, OUT Sustain/Assignable jack: Standard jack (sustain, sostenuto, soft, rhythm start/stop) Headphones/Output: Stereo standard jack Output Impedance: 250 Ω...
-
Page 6: Important Operation
IMPORTANT OPERATION Full Initialization Use this procedure to return all keyboard settings to what they were when you purchased it. Note that this procedure clears all data from memory. • While holding down the ENTER button, turn on keyboard power. R e s e t? •... -
Page 7: Block Diagram
BLOCK DIAGRAM Key Board SEG1 ~ SEG40 MIDI LCD Driver SED1278F2A SI0 ~ Back Light Back Light Driver FI0 ~ LSI501 COM1 ~ COM16 NT-07 Q501, Q502 Key Controller TC190C020AF-001 ~DB7 LSI10 LEDCK, LEDCL LEDs S-Register CONT, RESB TC74HC164 LEDA ~ LEDF LRS, ROM2 ROM1... -
Page 8: Key Matrix
CIRCUIT DESCRIPTION KEY MATRIX Note: Each key has two contacts, the first conatct 1 and second contact 2. First contact 1 Second contact 2 NOMENCLATURE OF KEYS F#3 G#3 A#3 C#4 D#4 F#4 G#4 A#4 C#5 D#5 F#5 G#5 A#5 C2 D2 G2 A2 C3 D3... -
Page 9: Button Matrix
TOUCH CH13 STORE TRAST RESPONSE FREE TEMPO TRANS- CH14 SESSION POSE ONE TOUCH BANK CH15 SYNTH PRESET DMSW DEMO LED MATRIX LED-A LED-B LED-C LED-D LED-E LED-F FULL RANGE FREE FINGERD CASIO CHORD SYNTH DISK CHORD SESSION — 8 —... -
Page 10: Memory Devices
MEMORY DEVICES Each memory device has the following data. 1 RAM1 : RAM1 S-RAM for operation program, Register, Pattern, Song and SMF data from FDD. (Lower part of data bus) 1 Mbit LSI7 2 RAM2 : Internal Memory S-RAM for operation program, Register, Pattern, Song 512 kbit RAM2 and SMF data from FDD. -
Page 11: Power Supply Circuit
POWER SUPPLY CIRCUIT The power supply circuit provides various voltages as shown below. The voltage VDD (+5 V) is provided as long as batteries or AC adaptor is set. Other voltages are controlled by APO (Auto Power Off) signal from CPU. PW/ON HD6473042F16-465 LSI9... - Page 12 DSP and DAC CIRCUIT The DSP (Digital Signal Processor) and DAC (Digital Analog Converter) consists of the following circuits. ROM1 ROM2 MSM27CB02CZ-465 MX23C3210MC-12CA89 LSI2 (8Mbit) LSI3 (32Mbit) CE A0 ~ A18 Q0 ~ Q15 CE A0 ~ A20 Q0 ~ Q15 RA23 RA22 RA0 ~...
- Page 13 FDD UNIT (DF354H064A) FDD Specifications: 1 Memory Capacity (under un-format) : 1.6 MByte 2 Density of track : 5.33 track/mm (135 TPI) 3 Number of track : 77 track/side 4 Number of head : 2 5 Rate of data transfer : 500 kbps 6 Access time (between two tracks) : 3 m seconds 7 Compensation of writing data : 125 n second (all tracks) (rpm) ±...
-
Page 14: Lcd Backlight
LCD BACKLIGHT NT-07 DE0405-979SL180J2K C502 HMBV26BG1W63N/AZG CFL1 (Bottom View) T501 LHL08TB101K L501 When voltage CVDD is supplied, transistors Q501 and Q502 start oscillation. From the oscillation voltage, transformer T501 generates about 600 V which is necessary for lighting the backlight. —... - Page 15 CPU (LSI9: HD6473042F16-465) The 16 bit CPU contains a 512K-bit ROM, a 16K-bit RAM, eleven 8-bit I/O ports, an A/D converter and serial interfaces. The CPU accesses to the RAM1, RAM2, DSP, Key controller, FDD controller and LCD driver LSI. The CPU also controls buttons, LEDs, bender input and MIDI input/output. Pin No.
- Page 16 Pin No. Terminal In/Out Function AC adaptor detection terminal. Modulation signal input. Pedal signal input. FD sheet type (2HD, 2DD) signal input. Key input signal from buttons. LCD contrast control voltage output. AVSS Ground terminal (0 V). Reset signal for DSP, Key controller, FDD controller. Chip select signal for FDD.
- Page 17 DIGITAL SIGNAL PROCESSOR (LSI4:HG51A115A01FD) Upon receipt of note numbers and their velocities, the DSP (Digital Signal Processor) reads sound and velocity data from the sound source ROM in accordance with the selected tone; the DSP can read rhythm data simultaneously when a rythm pattern is selected. Then it provides 16-bit serial signals containing data of the melody, chord, bass, and percussion to the DAC.
- Page 18 Pin No. Terminal In/Out Function 90 ~ 92 Not used. +5 V source 94, 95 97 ~ 105 EA0 ~ EA14 Address bus for the working RAM 107, 109 110, 112 EWEB Write enable signal output for the working RAM EOEB Read enable signal output for the working RAM VCC7...
- Page 19 Pin No. Terminal In/Out Function Disk detection signal. READY Ready signal from FDD. (Connected to ground (0V).) WPRT Write protect signal from FDD. TRKO Track0 signal from FDD. INDEX Index signal from FDD. RDATA Read data signal from FDD. 36, 37, 38 XTAL2, EXTAL2 Not used.
- Page 20 KEY TOUCH LSI (LSI10: TC190C020AF-001) By counting the time between first-key input signal FI and second-key SI from the keyboard unit, the key touch LSI detects key velocity of 256-step. Then the LSI sends the CPU the note number and its velocity data.
- Page 21 LCD DRIVER (LSI501: SED1278F2A) The LCD driver can drive a dot matrix LCD having 40 segment and 16 common lines. The LSI contains 240 graphic symbols in the built-in character generator ROM, and stores 80 characters in the built-in display data RAM.
- Page 22 DAC (LSI1: UPD6376GS) UPD6376GS is a two-channel 16-bit Digital to Analog Convertor consisting of resistor string, output ampli- fier and zero offset circuit. The DAC receives 16-bit serial data output from the DSP. The data contains digital sound data of the melody, chord, bass, and percussion for the right and left channels.
-
Page 23: Diagnostic Program
POWER MODE VOLUME TRANSPOSE/ TUNE/MIDI FULL RANGE CHORD FREE LAYER/ SESSION AUTO HARMONIZE FINGERED e h m TOUCH RESPONSE CASIO CHORD ONE TOUCH PRESET SPLIT /YES DISK f g n SEQUENCER 16 CHANNEL MIXER DELETE EXTERNAL CH10 CH11 CH12 CH13... - Page 24 Bender check 1. While pitch bender is left untouched, press “–” button. 2. Display indicates “Bender”. 3. If the bender’s center point is adjusted correctly, the instrument emits verification sound. If the center point is improper, an error alarm sounds and display indicates “Bend ER” and the instrument exits from the diagnostic program.
- Page 25 RAM check 1. Press “3” button. 2. The program executes write/read test in all the RAM area. 3. When the RAM is proper, display indicates “RAM OK”. If the RAM malfunctions, “RAM NG” is shown on the display. 4. When the RAM check is executed, other tests become unavailable. 5.
- Page 26 LED test 1. Press “CURSOR → ” button. 2. Display indicates “LED Test” and LEDs illuminate in the following order with verification sound. a. FULL RANGE CHORD b. FINGERED c. CASIO CHORD d. SONG e. PATTERN f. FREE SESSION g. SYNTH h.
- Page 27 <Other utilities> Bender reset Sets bender’s center point in initial value. 1. While pressing down “ENTER” and “ACCOMP CHORD MODE” buttons, turn the power on. 2. Display shows “BndReset” indicating that pitch bender’s center point is initialized. 3. Perform the “System reset” described below. System reset 1.
- Page 28 FDD ERROR MESSAGE Error Message Reason of Error R e a dO n l The file being written to is read-only. The disk format is not one supported by this key- F o rm a t board. D is k R /W Error occurred during reading from the disk.
-
Page 29: Major Waveformes
MAJOR WAVEFORMES 1 Clock signal for CPU 3 Voltage VDD Check point CP1 IC3 pin 2 2 Clock signal for DSP 4 Reset signal RES Check point CP2 IC3 pin 1 5 NMI signal 7 Sound signal L-OUT LSI9 pin 64 JC connector pin 10 6 Reset signal RESB 8 Sound signal L-VOL0OUT... -
Page 30: Printed Circuit Board
PRINTED CIRCUIT BOARD Main PCB JCM465-MA1M Top View Bottom View — 29 —... - Page 31 Sub PCB JCM465-MA2M Top View — 30 —...
-
Page 32: Exploded View
EXPLODED VIEW... -
Page 33: Parts List
PARTS LIST I t e m Code No. Parts Name Specification MA1M PCB 6926 8930 PCB/ASSY (MA1M) M240837*1 LSI1 2114 4221 LSI UPD6376GS-E1 LSI2 2012 6135 LSI MX23C8100MC-12CA99 (LSI2) (2012 6062) (LSI) (MSM27C802CZ-465) (1) (A) LSI3 2012 6064 LSI MX23C3210MC-12CA89 LSI4 2011 7434 LSI HG51B155FD... - Page 34 I t e m Code No. Part Name Specification Q504 2252 0154 TRANSISTOR 2SC1740SS-TP-T D501 2360 3056 DIODE/ZENER HZS6A2LTD-T D502 2390 1344 DIODE 1SS133T-77-T L501 3841 1197 COIL LHL08TB101K T501 3012 1470 INVERTER TRANS NT-07 CN1 ~ CN3 PCBs 6926 9070 PCB/ASSY (CN1M) M140751*1 6926 9080 PCB/ASSY (CN2M) M340815*1...
- Page 35 I t e m Code No. Part Name Specification A c c e s s o r y 6926 9540 STAND/MUSIC M140744-1 6926 9210 DISK/FLOPPY 811FD-PRG 6926 9220 DISK/FLOPPY (Others) 811FD-SMP-1 6926 9230 DISK/FLOPPY (USA,CANADA only) 811FD-SMP-2 Notes: Q – Quantity per unit R –...
-
Page 36: Schematic Diagrams
SCHEMATIC DIAGRAMS MainPCB JCM465-MA1M ROM1 ROM2 Working Key Controller D/A Converter To FDD Unit Reset IC Backup Power FDD Controller RAM1 RAM2 — 35 —... - Page 37 SubPCB JCM465-MA2M Power Amp. LPF (R) Power Supply LPF (L) Regulator IC — 36 —...
- Page 38 Console PCBs JCM465-CN1M/CN2M/CN3M S-Register S-Register — 37 —...
- Page 39 LCD Driver PCB JCM465-LCD1M Voltage Regulator LCD Driver — 38 —...
- Page 40 Keyboard PCBs JCM618T-KY1M/KY2M — 39 —...
- Page 41 CASIO TECHNO CO.,LTD. Overseas Service Division 8-11-10, Nishi-Shinjuku Shinjuku-ku, Tokyo 160-0023, Japan...
