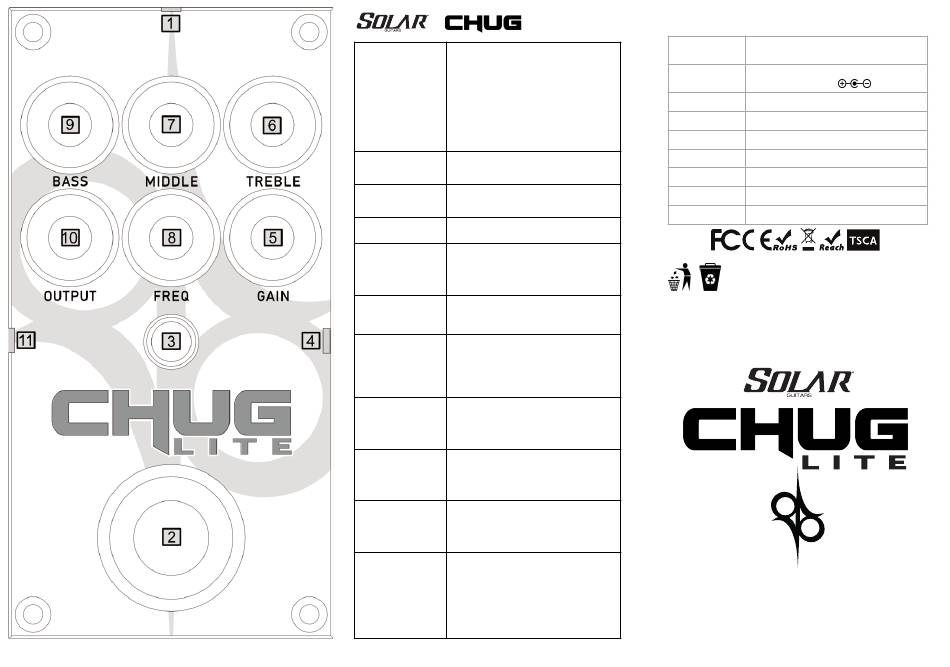

Solar CHUG LITE Product Manual

ENGLISH
Connect Solar CPS9V500 power
supply or equivalent 9volt DC, 25mA
Minimum, 5.33mm center negative
barrel connector here.
1. POWER When powering up: Turn on power
to your amplifier AFTER pedal.
When powering down: Turn off
power to your amplifier BEFORE
pedal.
Foot-switch to engage or disengage
2. SWITCH
pedal function.
Red LED Light indicates that pedal
3. LED
has power and function is engaged.
Plug 1/4 inch cable from your guitar
4. INPUT JACK
into this jack on right side of pedal.
This is a single function knob control
that varies the amount of gain (ie;
5. GAIN
distortion, overdrive) added to the
signal.
This is a single function knob that
6. TREB controls the Treble (high frequency)
equalization of the post gain signal.
Single function knob control that
controls the amount of midrange
7. MIDDLE frequency. This Equalization control
will have the most dramatic effect on
the guitar sound.
This is a single function knob control
that shifts the focused value of the
8. FREQ
midrange frequency being boosted
or attenuated.
This is a single function knob control
that boosts or attenuates the Bass
9. BASS
(low frequency) equalization of the
post gain signal.
This is a single function knob that
controls the amount of signal out of
10. OUTPUT
the pedal to whatever equipment is
connected via the 1/4" output jack.
Plug 1/4 inch cable from this jack on
left side of pedal into your Amplifier,
Interface, Mixer, D.I. or other sound
11. OUTPUT
source. (Leave volume of Amplifier
JACK
or interface at zero until connected
and SLOWLY turn up output to hear
sound)
SPECIFICATIONS
Intended Use CHUG pedal is intended to be used with electric guitar
via 1/4" standard guitar cable connections.
Power Requirements 9vDC, 25mA minimum, 5.33mm barrel connector.
Polarity = center negative:
Current Draw 18mA via external power supply. No battery operation.
Impedance Input = 1MΩ, Output = 1kΩ
Maximum Output +9dBV, +11dBu
Bypass Mode Mechanically triggered electronic bypass
Product Dimensions 55mm x 105mm (2.1 x 4.13 Inches)
Product Weight .05 kg. (<1 lb.)
Accessories CPS9V500 Power Supply Unit (not included)
Packaging and contents are to be disposed or recycled following end-
user's local and regional requirements. Your local community or
municipal authorities can provide information on how to dispose.
Warranty terms may vary per country. Check terms at point of purchase.
Chugs & Hugs AG, Vogelneststrasse 1, CH-8834 Schindellegi, Switzerland
PRODUCT MANUAL
For more details, warranty, registration and
instructional videos please visit our website at:
www.solar-guitars.com
